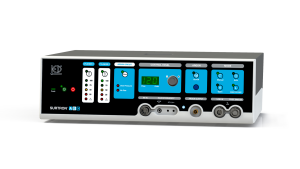

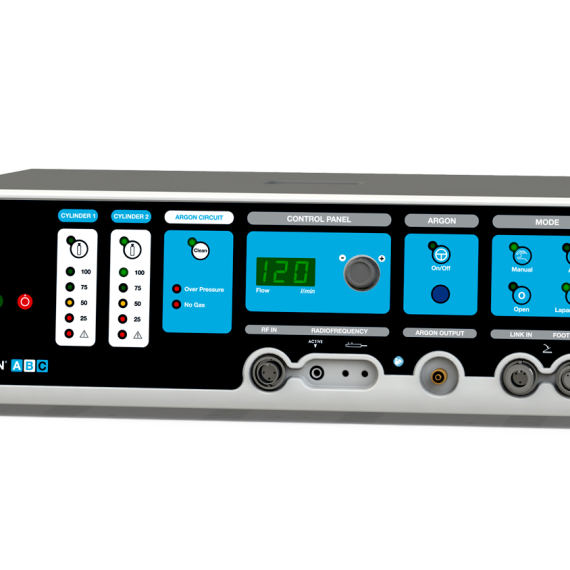

SURTRON ABC

Key Features

• Argon-Assisted Coagulation: Utilizes ionized argon gas to achieve precise, non-contact coagulation, minimizing thermal damage to surrounding tissues.

• Versatile Activation: Supports both manual and footswitch activation, providing flexibility during surgical procedures.

• Seamless Integration: Compatible with various electrosurgical units, allowing the use of other functions without interference.

• Adjustable Flow Control: Offers flow regulation between 0.2 to 10 LPM, accommodating different surgical needs.

• Safety Compliance: Meets international safety standards, ensuring reliable performance in clinical settings.

Technical Specifications

• Input voltage 90-240 VAC
• Main frequency 50/60 Hz
• Electrical input power: 70 VA
• Flow regulation 0.2 – 10 LPM
• Maximum inlet pressure 3.0 bar (43.5psi)
• Electrical Class I CF
• Size WxHxD 470x150x400 mm
• Weight 8 Kgs

Features

• High-quality tried-and-tested materials guarantee a long service life for OBS reusable electrosurgical pencils.
• Material is durable for high temperature and high press disinfection for more than 30 times.
• Cost compared to disposable instruments
• The initial cost of the reusable electrosurgical pencil is easily recouped after only a fraction of the expected number of uses and compares favorably to the cost of disposable pencils.

Features

1. LED light positioned between the electrodes enhances the vision during surgery.

Indications for Use

• Ensure that both electrodes are in contact with the tissue to be treated. Activation and saline flow occur simultaneously.
• Ensure that saline is flowing at the time of activation
• These devices should never be used when:
• There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.
• These devices fail the inspection described herein.
• In the presence of flammable gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O), or in oxygen-riched environments.
• Do not use monopolar electrosurgery on small appendages, as in circumcision or finger surgery.

Features

Features

• Designed with the surgeon in mind
• Slim and lightweight, tapered ergonomic design, streamlined design.
• Slip-proof handling and water resistant Rocker or Push-Button Switch
• Switch and buttons designed for smooth activation
• Equipped with a range of monopolar cutting and coagulation electrodes to satisfy all users requirements.
• With hexagonal shape to protect against inadvertent twisting, the electrodes can be locked safely into place and are easily exchanged and replaced.

• Power output can be controlled by the easy to use power adjustment button on the electrosurgical hand pencil which can shorten the operation time.
• With the inbuilt memory function on the device, you can set the required function parameters then power off the unit, next time the unit is powered on, the unit the last set parameter will be displayed.
• Output power of between 10 and 30 watts or less can be adjusted up and down by 0.1-watt increments, which is suitable for various delicate procedures.
• It can be used with disposable dispersive electrode

• x1 OBS-50 High-Frequency Electric Coagulator Unit
• x1 Reusable power control electrosurgical pencil
• x10 Non-Sterile Single-Use Short Sharp Tips
• x10 Non-Sterile Single-Use Short Blunt Tips
• x1 Power cord
• x1 Instruction manual

Multiple Applications to meet your different clinic demands

• Monopolar output mode without using the dispersive electrode
• Contact or insert into the tissue with the electrode
• The unit produces a high-frequency current, which runs through the patient via the electrode and then returns to the unit through grounding.
• High-frequency current vaporises the liquid inside the tissue cell therefore causing denaturation on the protein

• Another monopoly output mode without using a dispersive electrode
• Holding the electrode above the lesions rather than contact directly, will release an electric arc to the tissue.
• Range of action in this mode is limited to the surface where the arc contacts the tissue

• Suitable for hemostasis and shrinkage of tissue
• Used in control of hemostasis
• Suitable for more difficult cutting procedures for good hemostasis

• Monopolar output mode using the dispersive electrode
• Under this mode, the high-frequency current that is produced from the unit flows through the patient and then returns to the unit via a dispersive electrode
• The dispense electrode can draw more high-frequency current to the electrode, making the tip of electrode produce a more powerful desiccation to the tissue.

• An Output mode in which the high-frequency current circulates between two nearby electrodes (bipolar forceps), without using the dispersive electrode.
• In contrast to the effect of monopolar coagulation, since the high-frequency current is only circulated separately in the forceps, the bipolar coagulation effect acts only on the tissue surface, causing minimal damage to the tissue.

• Single foot switch
• Reusable power control electrosurgical pencil
• Reusable dispersive electrode (Patient Plate) & Cable
• Reusable bipolar forceps & cable
• Reusable Connecting Cable (for disposable dispersive electrode)
• Disposable dispersive electrodes
• Wall mounting Plate
