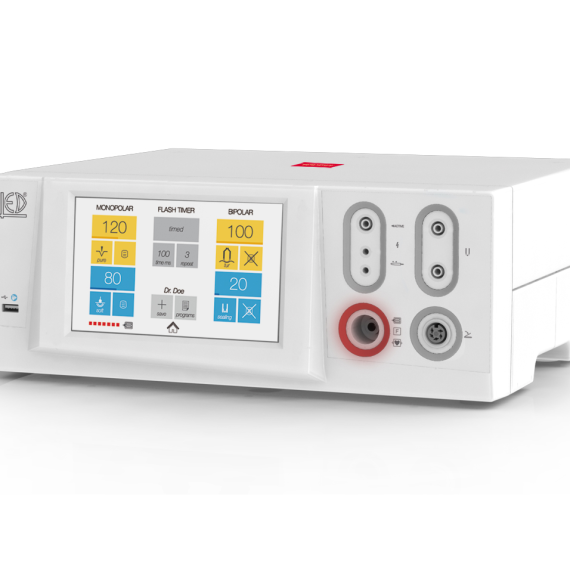

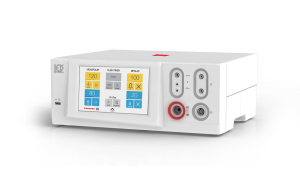

SURTRON TOUCH 200

Technical data

• Max power PURE CUT 200 W – 300 Ω
• Max power BLEND CUT 150 W – 200 Ω
• Max power ENHANCED CUT 150 W – 300 Ω
• Max power BIPOLAR TUR 200 W – 200 Ω
• Max power BIPOLAR CUT 120 W – 50 Ω
• Max power FORCED COAG 150 W – 200 Ω
• Max power SOFT COAG 100 W – 200 Ω
• Max power FULGURATION COAG 100 W – 1000 Ω
• Potenza max BIPOLAR COAG 120 W – 50 Ω
• Max power BIPOLAR SEALING 200 W – 50 Ω
• Working frequency 360 kHz
• RF power pulse emission time 10ms-30sec
• RF power pulse interval 1-30
• Patient circuit F
• Selectable input voltage 100-240 VAC
• Mains Frequency 50-60 Hz
• Electrical input power: 750 VA
• Size WxHxD 370x144x319 mm
• Weight 6 kg

Features

• Effective smoke removal: Captures toxic gases and vapors.
• Compact and portable: Weighs 3.5 kg with a trolley cart for easy mobility.
• Quiet operation: Works at 55 dB.
• High efficiency: Processes 3.5-4.2 cubic meters of smoke per hour.
• Automatic startup: Can be activated by an internal sensor or foot switch

• Power output can be controlled by the easy to use power adjustment button on the electrosurgical hand pencil which can shorten the operation time.
• With the inbuilt memory function on the device, you can set the required function parameters then power off the unit, next time the unit is powered on, the unit the last set parameter will be displayed.
• Output power of between 10 and 30 watts or less can be adjusted up and down by 0.1-watt increments, which is suitable for various delicate procedures.
• It can be used with disposable dispersive electrode

• x1 OBS-50 High-Frequency Electric Coagulator Unit
• x1 Reusable power control electrosurgical pencil
• x10 Non-Sterile Single-Use Short Sharp Tips
• x10 Non-Sterile Single-Use Short Blunt Tips
• x1 Power cord
• x1 Instruction manual

Multiple Applications to meet your different clinic demands

• Monopolar output mode without using the dispersive electrode
• Contact or insert into the tissue with the electrode
• The unit produces a high-frequency current, which runs through the patient via the electrode and then returns to the unit through grounding.
• High-frequency current vaporises the liquid inside the tissue cell therefore causing denaturation on the protein

• Another monopoly output mode without using a dispersive electrode
• Holding the electrode above the lesions rather than contact directly, will release an electric arc to the tissue.
• Range of action in this mode is limited to the surface where the arc contacts the tissue

• Suitable for hemostasis and shrinkage of tissue
• Used in control of hemostasis
• Suitable for more difficult cutting procedures for good hemostasis

• Monopolar output mode using the dispersive electrode
• Under this mode, the high-frequency current that is produced from the unit flows through the patient and then returns to the unit via a dispersive electrode
• The dispense electrode can draw more high-frequency current to the electrode, making the tip of electrode produce a more powerful desiccation to the tissue.

• An Output mode in which the high-frequency current circulates between two nearby electrodes (bipolar forceps), without using the dispersive electrode.
• In contrast to the effect of monopolar coagulation, since the high-frequency current is only circulated separately in the forceps, the bipolar coagulation effect acts only on the tissue surface, causing minimal damage to the tissue.

• Single foot switch
• Reusable power control electrosurgical pencil
• Reusable dispersive electrode (Patient Plate) & Cable
• Reusable bipolar forceps & cable
• Reusable Connecting Cable (for disposable dispersive electrode)
• Disposable dispersive electrodes
• Wall mounting Plate

Features

1. Portable and  affordable

Technical Details

Features

• Power: It offers cutting power up to 350W and coagulating power up to 150W.
• Frequency: Operates at 417 kHz.
• Applications: Suitable for general surgery, vascular surgery, hepatobiliary and pancreatic surgery, cardiothoracic surgery, gastroenterology, TURP (Transurethral Resection of the Prostate), TUVP (Transurethral Vaporization of the Prostate), and compatible with cystoscopy, arthroscopy, laparoscopy, and hysteroscopy.
• Modes: It has 8 different working modes including pure cut, blend, coagulation, and bipolar vessel sealing.
• Display: Features a 7-segment LED display for easy monitoring.
• Presets: Comes with 10 saved presets for quick access
• Monopolar and Bipolar Modes: This device supports both monopolar and bipolar modes, offering flexibility for various surgical needs.
• User-friendly Interface: The intuitive LCD display provides real-time feedback and easy control settings, enhancing the precision and efficiency of surgical procedures.
• Safety Features: It includes automatic self-checking systems and alarms for safety, ensuring reliable performance during operations.
• Memory Function: You can save and recall up to 10 presets, allowing for quick setup and operation tailored to specific surgical requirements.
• Efficient Smoke Evacuation: Integrated smoke evacuation system helps maintain a clear surgical field and improves visibility.

Technical Specifications

• Cutting Power: Up to 350W
• Coagulating Power: Up to 150W
• Frequency: 417 kHz
• Power Supply: AC 100-240V, 50/60Hz
• Dimensions: 380mm x 280mm x 120mm
• Weight: Approximately 6kg

Applications

• General Surgery: Versatile for cutting and coagulating tissue.
• Vascular Surgery: Precise control for delicate procedures.
• Laparoscopy: Compatible with minimally invasive surgical techniques.
• Hysteroscopy: Suitable for gynecological procedures.
