Triguy™ Steerable Mapping Catheter

Brands: APT Medical

~~$0.00~~

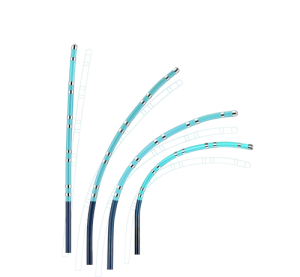

Triguy™ Steerable Mapping Catheter is a deflectable diagnostic catheter available in decapolar and duo‑decapolar configurations, engineered with multi‑durometer shaft design and up to 270° deflection for flexible and precise atrial mapping.

Shipped From Abroad

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Tag:

Electrophysiology

Brands:: APT Medical

Description

The Triguy™ Steerable Mapping Catheter is a high-performance diagnostic tool designed to accommodate complex cardiac anatomy during electrophysiology procedures. Available in decapolar (10‑pole) or duo‑decapolar (20‑pole) loop configurations, it allows simultaneous mapping of distinct cardiac structures like the pulmonary veins, coronary sinus, or atrial anatomy.

Built with a multi-durometer shaft and memory alloy loop construction, the catheter maintains durable shape integrity while adapting flexibly to varied atrial geometries. The 270° deflection provides enhanced access—especially to the right pulmonary veins—ensuring rapid and accurate catheter positioning during atrial fibrillation, flutter, and accessory pathway mapping. A bulb tip design mitigates myocardial trauma and ensures signal stability.

Features

– Smooth curvature when handling

– An array of models for varied anatomies.

Additional information

Brand	APT Medicals

Reviews

There are no reviews yet.

Be the first to review “Triguy™ Steerable Mapping Catheter”
