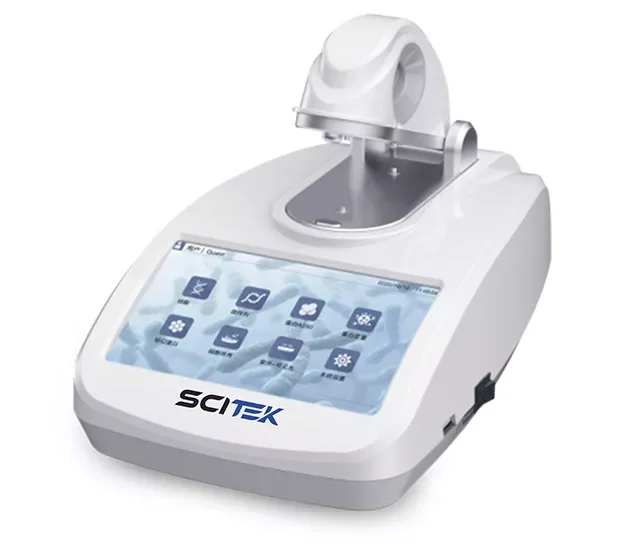

Ultra-Micro UV-VIS Spectrophotometer

Brands: Scitek

~~$0.00~~

Shipped From Abroad

Model : SP-UMUV100; SP-UMUV100C

Ultra-Micro UV-VIS Spectrophotometer is a full-wavelength spectrophotometer. whether in the fields of scientific research, such as physics, chemistry, biology, medicine, materials science, environmental science, or in modern chemical engineering, medicine, environmental testing, metallurgy Production and management departments, Ultra-Micro UV-VIS Spectrophotometer have a wide range of important applications. It is to use spectrophotometry to quantitatively and qualitatively analyze substances. The micro detection mode can be used to detect nucleic acids, micro nucleic acid arrays, pure protein detection, labeled protein detection, protein quantitative detection, microbial cell culture detection and Conventional microbial cell culture and Kinetic testing.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130127-68

Brands:: Scitek

Description
Reviews (0)

Description

UV Vis Spectrophotometer Features:

Small size, easy to carry, very suitable for field testing.
It can be quickly upgraded by U disk, which is convenient for the instrument to update the software.
The detection concentration range is wide, and commonly used samples can be detected without dilution.
Has power-on self-test function, it can quickly and accurately judge whether there are impurities in the detection platform when the machine is started up.
The machine does not need to be warmed up, it can be detected after starting up, and the single detection time is about 5 seconds, and the detection is fast.
By forming a liquid column, the sample required for one test is as low as 0.5ul.
Colony detection can be performed in both cuvette and micro mode.
With cuvette measurement function, support kinetic detection. (SP-UMUV100)

UV VIS Spectrometer Specifications:

Model	SP-UMUV100/SP-UMUV100C
Test sample capacity	0.5~2μl
Light source	Xenon lamp
Detector	2048 linear CCD array
Optical Path	≤0.7mm
Wavelength Range	200~850nm
Wavelength Accuracy	<1nm
Wavelength Resolution	≤2nm
Light Absorption Range	0.04~300Abs (10mm)
Light Absorption Accuracy	0.002Abs (1mm)
Absorbance Accuracy	1%(0.76Abs at 256nm)
Detection Concentration Range	2~15000ng/μl(dsDNA)
Sample Base Material	304 stainless steel and quartz optical fiber
Measure Time	About 5s
Consumption	20W
Power Supply	12V, 5A
External Size(WxDxH)(mm)	197x327x181
Shipping Size(WxDxH)(mm)	520x280x360
Net Weight(kg)	3.1
Gross Weight(kg)	7.4

Model	SP-UMUV100C
Cuvette Specification(WxDxH)(mm)	12.5×12.5×45
Cuvette Optical Path Length	10, 5, 2, 1mm
Cuvette Beam Height	6mm
Heating Range of Cuvette	37±0.5℃
Stirring Speed of Cuvette	High and low two modes
Detection Concentration Range of Cuvette	0.2~750ng/ul(dsDNA)
Light Absorption Range of Cuvette	0.004~25Abs(10mm)
