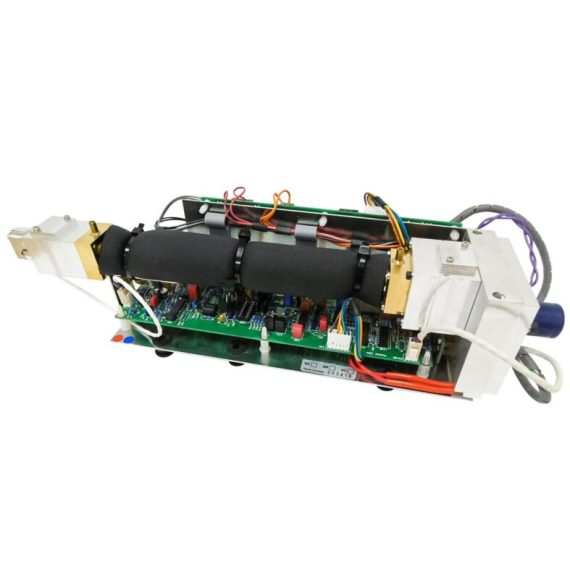

VENUS SOLO OEM SENSOR

Brands: Analox

~~$0.00~~

Shipped From Abroad

Key Features

Single gas (user defined)
Backward compatible with ADC’s ‘Eclipse’
Linearised Output
Continuous status signal to check device health

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130141-15

Brands:: Analox

Description
Reviews (0)

Description

Description

The Venus Solo OEM sensor is a self-contained unit designed for integration into other manufacturers’ equipment and provides a measurement of gas concentration according to specific user requirements. These GFC (Gas Filter Correlation) sensors generate a signal proportional to the infrared absorption of the measured gas.

Providing the gas concentration lies within the designed range of the sensor, the signal is periodically compared with a reference gas. Gas concentrations are indicated through the non-linearised analogue signal output. Gas connections to and from the sensor are via suitable fittings on the gas measuring cell.

The Venus Solo OEM Series sensors electrical supply is designed to accept 24V DC (3amp max).

Our Venus Solo OEM sensor uses GFC (Gas Filter Correlation) technology to give highly accurate gas measurements.

The Venus Solo can be integrated into your own gas analyzer or management system and offers the user a 0-2.5v analogue output.

The sensor is currently available as either: Carbon dioxide (CO2), carbon monoxide (CO), nitrous oxide (N20), methane (CH4) or nitric oxide (NO). If your application requires a different gas, just let us know and we can customise it to your needs.

The Venus Solo is used in Military applications to protect submariners from carbon monoxide (CO) exposure.

Technical Specification

Venus Solo

Operating Temperature Range	5°C to 40°C
Ambient Humidity	0 to 95% RH, non condensing
System Warm-up Time	30-60 minutes (dependant on gas)
Power Requirements	24V DC +/- 10%, Max current 3A, Nominal current 600mA (after warm up)
Outputs	4-20mA, RS232, relays
Response Time (T90)	Between 10-90 secs (dependant upon gas cell length) at flow rate of 500ml/minute
Intrinsic Accuracy	+/- 0.2% of full scale
Sensor Technology	Gas Filter Correlation

Gas PPM Ranges

Gas Type	10 PPM	20 PPM	50 PPM	100 PPM	200 PPM	500 PPM	1000 PPM	2000 PPM	5000 PPM
Carbon Dioxide (CO2)	✓		✓	✓		✓	✓		✓
Carbon Monoxide (CO)		✓		✓	✓	✓	✓		✓
Methane (CH4)				✓	✓	✓	✓		✓
Nitrous Oxide (N20)	✓		✓	✓	✓	✓	✓		✓

Gas % Ranges

Gas Type	1%	5%	10%	20%	50%	100%
Carbon Dioxide (CO2)	✓	✓	✓		✓	✓
Carbon Monoxide (CO)	✓	✓	✓		✓	✓
Methane (CH4)	✓	✓	✓	✓	✓	✓
Nitrous Oxide (N20)	✓	✓	✓	✓	✓	✓

Click here to download Data Sheet

Click here to download Operational Manual
