| Description | Shipped From Abroad

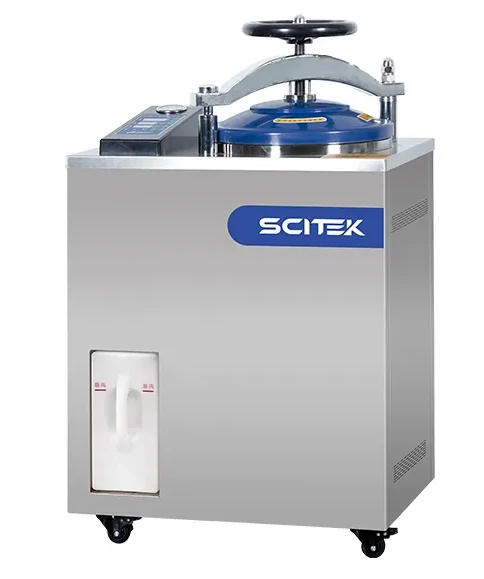

Professional grade multifunctional self-control vertical pressure steam sterilizer ideal for all general medical and laboratory applications.
Volume : 35L; 50L; 75L; 100L
Design Temperature : 139℃
Rated Working Pressure : 0.22MPa
Rated Working Temperature : 134℃
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped from Abroad
Fluorescence binocular and trinocular microscopes especially designed for tubercolosis and malaria analysis.
Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped from Abroad
Digital binocular microscope ideal for teachers and secondary schools, with four achromatic lenses (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination.
Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped from Abroad
Cordless digital binocular microscope ideal for students and primary schools, with four PLAN achromatic lenses (1000x), FN 18 high eyepoint eyepieces, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 1 W X-LED1 illumination.
Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | In stock
Nikon SMZ745 Stereoscopic Microscope: Featuring a zoom magnification of 7.5X and a long working distance of 115mm, Nikon SMZ745 microscopes are well suited for both industrial and biomedical applications. The adoption of a new total reflection prism produces brighter images with higher contrast, and the anti-mold design allows the microscope to be used in environments where the temperature and humidity are high. The SMZ-745T trinocular model comes equipped with a microscope camera port and a built-in 0.55x c-mount adapter, permitting direct mounting of Nikon DS Series Digital Cameras.
Delivery & Availability:
Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | In stock
- Classification: Laboratory Centrifuge
- Brand Name: xiangtian
- Model Number: 800-1
- Place of Origin: Jiangsu, China
- Time range: 0-60min
- Max speed: 4000r/min
- Max RCF: 1790xg
- Capacity: 20ml*6
Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. |
| Content | Vertical Pressure Steam Sterilizer Features:
- Hand wheel translation and quick opening structure
- High quality stainless steel material
- With drying function
- Microcomputer automatic control, arbitrary setting sterilization parameters
- Safety interlocking device
- Digital display and Touch buttons
- Standard test interface
- Self-expanding seal
- With automatic protection function: Over temperatureprotection; over pressure self discharge protection; low water level protection; anti dry burning.
- With stainless steel bucket or basket
- Buzzer reminder after sterilization, automatic stop
- Automatic discharge of cold air, automatic steamexhaust after sterilization,Internal steam cycle.
Specifications:
| Model |
ST-VX35 |
ST-VX50 |
ST-VX75 |
ST-VX100 |
| Volume |
35L |
50L |
75L |
100L |
| Power |
3.5kW |
3.5kW |
4.5kW |
4.5kW |
| Voltage |
AC 220V, 50Hz |
| Design Pressure |
0.25MPa |
| Design Temperature |
139℃ |
| Rated Working Pressure |
0.22MPa |
| Rated Working Temperature |
134℃ |
| Sterilization Temperature Setting Range |
116℃~134℃ |
| Sterilization Time Setting Range |
4~120min |
| Drying Time Setting Range |
0~240min |
| Chamber Volume |
Ø350x400 |
Ø350x525 |
Ø400x625 |
Ø450x650 |
| Bucket Size |
Ø330x320 |
Ø330x460 |
Ø380x560 |
Ø420x540 |
| Basket Size |
Ø350x400 |
Ø350x525 |
Ø400x625 |
Ø450x650 |
| Outer Size |
698x498x940 |
630x500x1180 |
725x525x1170 |
788x588x1255 |
| Packing Size(LxWxH)(mm) |
790x610x1130 |
800x600x1230 |
840x610x1310 |
870x650x1380 |
| Gross Weight |
125kg |
130kg |
145kg |
156kg |
| Net Weight |
110kg |
112kg |
114kg |
129kg
|
- Optional external printer
- Optional automatic water
| Fluorescence binocular and trinocular microscopes especially designed for tubercolosis and malaria analysis.
Features:
- Observation mode: Brightfield.
- Head: Binocular, 360° rotating and 30° inclined. Interpupillary distance 48-75mm.
- Dioptric adjustment: On the left eyepiece tube.
- Eyepieces: WF10x/20 mm, high eye-point and secured by a screw.
- Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
- Objectives:
Equipped with binocular head and following objectives:
IOS N-PLAN 10x/0.25 (Cover/No Cover), with anti-fungus treatment
IOS N-PLAN 20x/0.40 (Cover/No Cover), with anti-fungus treatment
IOS N-PLAN 40x/0.65 (Cover/No Cover), with anti-fungus treatment
IOS W-PLAN 100x/0.80 (No Cover, Dry), with anti-fungus treatment
- Specimen stage: Double layer rackless mechanical sliding stage, 150×139 mm, 75×33 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
- Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
- Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
- Brightfield Illumination (Fixed Koehler type):
X-LED3 with white 3.6 W LED (6,300 K) and light intensity control.
Multi-plug 100-240Vac/6Vdc external power supply.
- Fluorescence Illumination: Extra efficiency LED, with light intensity control. Peak wavelength: 465 nm, Power: 3.6W.
- Epi Fluorescence Attachment:
Slider with 3 positions (2 fluorescence, 1 brightfield), with 1 included filterset: Fluorescence B: EX 460-490, DM 505, EM 515LP: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, etc.
| Digital binocular microscope ideal for teachers and secondary schools, with four achromatic lenses (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. The 3.1 MP CMOS camera ensures excellent colour reproduction and is connected to a Windows tablet PC with vivid color graphic display for unparalleled comfort and performance. The tablet represents a 2-in-1 solution as it can be disconnected and used as a real PC, being Windowsbased, with powerful Intel processor and large touch screen of 10.1” for fast, responsive and smooth control.
Features:
- Observation mode: Brightfield.
- Head: Binocular, 360° rotating and 30° inclined. Interpupillary distance from 48 to 75 mm; dioptric adjuctment on left eyepiece. Built-in 3.1 MP camera.
- Eyepieces: WF 10x/18 mm, secured by screw.
- Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
- Objectives:
HC – High Contrast Achromatic 4x/0.10 with anti-fungus treatment.
HC – High Contrast Achromatic 10x/0.25 with anti-fungus treatment.
HC – High Contrast Achromatic 40x/0.65 with anti-fungus treatment.
HC – High Contrast Achromatic 100x/1.25 (Oil/Water) with anti-fungus treatment.
- Specimen stage: Double layer mechanical sliding stage, 125×115 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
- Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
- Condenser: Abbe N.A. 1.25, pre-centered, adjustable height with iris diaphragm.
- Illumination: X-LED² with white 3 W LED and light intensity control. Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply. Color temperature: 6,300 K.
Technical Specifications:
| Observation Method -
Transmitted Light |
Brightfield |
Yes |
| |
Simple polarized light |
As optional |
| Main Body |
Type |
Upright |
| |
Construction material |
Aluminum die-cast |
| |
Trasportation handle |
Yes |
| Head |
Type |
Binocular (Siedentopf) |
| |
Inclination |
30° |
| |
360° rotating |
Yes |
| |
Interpupillary distance (mm) |
48-75 |
| |
Dioptric adjustement |
On left tube |
| |
Fixing screw for eyepieces |
Yes |
| |
Tube inner diameter (mm) |
23 |
| Eyepieces |
Field number (mm) |
18 |
| |
Magnification |
10x |
| |
Pointer |
As optional |
| |
Micrometric scale |
As optional |
| |
Diameter of micrometer glass (mm) |
20 |
| |
High eyepoint (for glass wearers) |
Yes |
| Nosepiece |
Positions |
Quadruple |
| |
Bi-directional |
Yes |
| |
Rotation on ball bearings |
Yes |
| |
Objective thread |
RMS |
| Objectives |
Optical system |
160 |
| |
Anti-fungus treatment |
Yes |
| |
Parfocal distance (mm) |
45 |
| |
Standard magnifications |
40x-400x |
| |
Type |
HC |
| |
Objectives included |
4x/0.10, W.D. 18 mm
10x/0.25, W.D. 7 mm
40x/0.65, W.D. 0.53 mm |
| |
|
100x/1.25 (Oil/Water)
W.D. 0.13 mm |
| Stage |
Type |
Double layer |
| |
Dimensions (mm) |
125x116 |
| |
Moving mechanism |
Rack and pinion |
| |
Moving range (mm) |
70x30 |
| |
Material |
Anti-scratch painting |
| |
Specimen clips |
Yes |
| |
Slide number |
1 |
| |
X-Y movement |
Yes |
| |
X-Y Vernier scale |
Yes |
| |
Vernier scale accuracy (mm) |
0.1 |
| Condenser - Single
Position |
Type |
Abbe |
| |
Numerical aperture (N.A.) |
1.25 |
| |
Centrable |
Pre-centered |
| |
Focusable |
By rotation |
| Focusing System |
Type |
Coaxial coarse & fine |
| |
Coarse total travel (mm) |
18 |
| |
Fine total travel (per single rotation) (mm) |
0.4 |
| |
Fine graduations |
100 |
| |
Fine resolution (µm) |
4 |
| |
Upper stop to prevent contact |
Yes |
| |
Adjustable tension |
Yes |
| Transmitted
Illumination |
Type |
X-LED |
| |
X-LED type |
X-LED2 |
| |
Light source power (W) |
3 |
| |
Brightness control |
Manual |
| |
Lifetime (hours) |
> 65,000 |
| |
Temperature (K) |
6,300 |
| |
Max. required power (W) |
6 |
| Power Supply for
Transmitted
Illumination |
Type |
External |
| |
Microscope connector |
Jack, 2.1 mm |
| |
Power plug type |
Multi-plug (EU, UK, US) |
| |
Input voltage |
100/240 Vac, 50/60 Hz |
| |
Output voltage |
6 Vdc 2.5A |
| Accessories Included |
Dust cover |
Yes |
| |
Immersion oil (10ml) |
Yes |
| |
Tension adjustment tool |
Yes |
| |
User Manual |
Digital version (downloadable) |
| |
Calibration slide |
Yes |
| |
Touch pen |
Yes |
| |
USB cable (m) |
0.5 |
| Additional Information |
|
External rechargeable battery pack (as optional).
Tablet Keyboard (as optional). |
| Product Weight |
Height (mm) |
525 |
| |
Width (mm) |
260 |
| |
Depth (mm) |
320 |
| Product Weight |
(kg) |
7.5 |
| Camera specifications |
PC Camera resolution (MP) |
3.1 |
| |
Camera resolution (n° of pixels: W x H) |
2048x1536 |
| |
USB Signal output |
USB 2.0 |
| |
Color / Monochrome |
Color |
| |
Sensor Size |
1/2.5" |
| |
Sensor Technology |
CMOS |
| |
Sensor Type |
APTINA CMOS |
| |
Rolling Shutter |
Yes |
| |
Image Format |
4/3 |
| |
Pixel Size (mm) |
2.2x2.2 |
| |
Frame rate full resolution (fps) |
8@1280x1024 |
| |
Frame rate other resolution (fps) |
30@640x480 |
| |
Sensitivity |
0.53 V/lux-second |
| |
Signal/Noise Ratio (DB) |
40.5 |
| |
Dynamic range (DB) |
66.5 |
| |
ADC conversion |
12 Bit |
| |
Color Depth |
8 Bit |
| |
Exposure time |
… - 1.5 sec |
| |
Binning |
1x1 |
| |
IR filter |
Yes |
| |
IR filter range (nm) |
680 |
| |
Camera Power |
PC USB |
| |
C-Mount |
Yes |
| Camera accessories |
Calibration slide |
Yes |
| Environment
specifications |
Working Temperature |
-10°C up to +50°C |
| |
Storage Temperature |
-20°C up to +60°C |
| |
Relative Humidity |
30% to 80% |
| |
Storage Humidity |
10% to 60% |
| Operating System |
OS |
Windows 10 (64Bit) |
| Available Software |
SW |
PROVIEW |
| Warranty |
Years |
2 |
| Tablet |
Operating system |
Windows 10 (64Bit) |
| |
CPU |
Intel® Atom™ Z8350, Quad core |
| |
CPU speed |
1.44 GHz |
| |
Graphic card |
Intel® HD Graphics 400 |
| |
RAM |
Ram 4 GB LPDDR3 |
| |
Display size |
LED 10.1” IPS Multi Touch Screen |
| |
Display resolution |
1920x1200 |
| |
Storage |
Hdd 64 GB |
| |
Network |
Wireless - Bluetooth 4.0 |
| |
Input ports |
Micro USB (OTG) - USB Type-C - Micro SD card
reader |
| |
Output ports |
Microphone - Headphone - Micro HDMI |
| |
Battery Type |
Lithium-ion |
| |
Battery capacity |
6500 mAh |
| |
Power consumption |
15W |
| |
Power supply |
5V 3A |
| |
Dimensions (mm) |
261X167X9 |
| |
Weight (Kg) |
0.53 |
| |
Language |
Multilanguage |
| Tablet accessories |
OTG cable (micro USB-B to USB-A) |
Yes |
| |
USB cable USB-B to USB-A (0.5m) |
Yes |
| |
Touch pen |
Yes |
| Cordless digital binocular microscope ideal for students and primary schools, with four PLAN achromatic lenses (1000x), FN 18 high eyepoint eyepieces, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 1 W X-LED1 illumination. Slim and easy to carry, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use. The
exclusive Li-Ion battery ensures unparalleled duration and fast recharge.
Features:
- Observation mode: Brightfield.
- Head: Binocular, 30° inclined; 360° rotating. With integrated 3.1 MP camera.
- Eyepieces: WF10x/18 mm, secured by screw.
- Nosepiece: Quadruple ball bearings revolving nosepiece.
- Objectives:
– N-PLAN 4x/0.10 , with anti-fungus treatment
– N-PLAN 10x/0.25 , with anti-fungus treatment
– N-PLAN 40x/0.65 , with anti-fungus treatment
– N-PLAN 100x/1.25 (Oil/Water) , with anti-fungus treatment
- Specimen stage: Mechanical stage, 125x116mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
- Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
- Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
- Illumination: X-LED1 with white 1 W LED and light intensity control.
- Color temperature: 6,300 K. Li-Ion battery for long lasting operation. Multi-plug 100-240Vac/5Vdc external power supply.
Technical Specifications:
| Observation Method -
Transmitted Light |
Brightfield |
Yes |
| |
Simple polarized light |
As optional |
| Main Body |
Type |
Upright |
| |
Construction material |
Aluminum die-cast |
| Head |
Head |
Binocular (Siedentopf) |
| |
Inclination |
30° |
| |
360° rotating |
Yes |
| |
Interpupillary distance (mm) |
48-75 |
| |
Dioptric adjustement |
On left tube |
| |
Fixing screw for eyepieces |
Yes |
| |
Tube inner diameter (mm) |
23 |
| Eyepieces |
Field number (mm) |
18 |
| |
Magnification |
10x |
| |
High eyepoint (for glass wearers) |
Yes |
| |
Pointer |
As optional |
| |
Micrometric scale |
As optional |
| |
Diameter of micrometer glass (mm) |
20 |
| Nosepiece |
Positions |
Quadruple |
| |
Bi-directional |
Yes |
| |
Rotation on ball bearings |
Yes |
| |
Objective thread |
RMS |
| Objectives |
Optical system |
160 |
| |
Anti-fungus treatment |
Yes |
| |
Parfocal distance (mm) |
45 |
| |
Standard magnifications |
40x-1000x |
| |
Type |
N-PLAN |
| |
Objectives included |
4x/0.10, W.D. 15.2 mm |
| |
|
10x/0.25, W.D. 5.5 mm |
| |
|
40x/0.65, W.D. 0.45 mm |
| |
|
100x/1.25 (Oil/Water),
W.D. 0.13 mm |
| Stage |
Type |
Double layer |
| |
Dimensions (mm) |
125x116 |
| |
Moving mechanism |
Rack and pinion |
| |
Moving range (mm) |
70x30 |
| |
Material |
Anti-scratch painting |
| |
Specimen holder |
Yes |
| |
Slide number |
1 |
| |
X-Y Vernier scale |
Yes |
| |
Vernier scale accuracy (mm) |
0.1 |
| Condenser - Single
Position |
Type |
Abbe |
| |
Numerical aperture (N.A.) |
1.25 |
| |
Diaphragms |
Iris |
| |
Centrable |
Pre-centered |
| |
Focusable |
By rotation |
| Focusing System |
Type |
Coaxial coarse & fine |
| |
Coarse total travel (mm) |
16 |
| |
Fine total travel (per single rotation) (mm) |
0.4 |
| |
Fine graduations |
100 |
| |
Fine resolution (µm) |
4 |
| |
Upper stop to prevent contact |
Yes |
| |
Adjustable tension |
Yes |
| Transmitted
Illumination |
Type |
X-LED |
| |
X-LED type |
X-LED1 |
| |
Light source power (W) |
1 |
| |
Brightness control |
Manual |
| |
Lifetime (hours) |
> 65,000 |
| |
Temperature (K) |
6,300 |
| |
Max. required power (W) |
1.5 |
| Power Supply for
Transmitted
Illumination |
Type |
External |
| |
Microscope connector |
Jack, 2.1 mm |
| |
Power plug type |
Multi-plug (EU, UK, US) |
| |
Input voltage |
100/240 Vac, 50/60 Hz |
| |
Output voltage |
5 Vdc 500 mA |
| |
LED indicator |
Yes |
| |
Rechargeable batteries |
Yes |
| |
Battery type |
Li-ion (battery pack) |
| |
Working time of batteries (hours) |
15 |
| |
Charging time of batteries (hours) |
6 |
| Accessories Included |
Dust cover |
Yes |
| |
Immersion oil (10ml) |
Yes |
| |
Tension adjustment tool |
Yes |
| |
User Manual |
Digital version (downloadable) |
| |
USB cable (m) |
1.8 |
| |
CD-ROM |
Yes |
| Additional Information |
|
Mirror for transmitted light (as optional) |
| Product Dimensions |
Height (mm) |
365 |
| |
Width (mm) |
170 |
| |
Depth (mm) |
320 |
| Product Weight |
(kg) |
4 |
| Digital Head |
Resolution (MP) |
3.2 |
|
Sensor type |
CMOS |
|
Sensor size |
1/2.5" |
|
Sensor aspect ratio |
4/3 |
|
Full image size |
2048x1536 |
|
Pixel size (µm) |
2.2x2.2 |
|
Frame rate |
4 fps (2048x1536),
8 fps (1280x1024),
30 fps (640x480) |
|
S/N ratio (dB) |
40 |
|
Dynamic range (dB) |
66.5 |
|
Sensitivity (V/lux*s @550nm) |
0.53 |
|
Exposure time (s) |
15 - 1/1500 |
|
USB type |
2.0 |
|
System requirements |
Win 7 / Win 8 / Win 10 (32/64 bit) |
|
Software |
OPTIKA PROView |
| Nikon SMZ745 Stereoscopic Microscope: Featuring a zoom magnification of 7.5X and a long working distance of 115mm, Nikon SMZ745 microscopes are well suited for both industrial and biomedical applications. The adoption of a new total reflection prism produces brighter images with higher contrast, and the anti-mold design allows the microscope to be used in environments where the temperature and humidity are high. The SMZ-745 trinocular model comes equipped with a microscope camera port and a built-in 0.55x c-mount adapter, permitting direct mounting of Nikon DS Series Digital Cameras.
Features:
- Trinocular optical head for monitoring and digital imaging
- Impressive 7.5x zoom magnification
- 115 mm working distance
- Maximum ergonomics
- Rugged, durable design suits a variety of applications and environments
Technical Specifications:
| Optical system |
Greenough optical system |
| Total magnification |
3.35-300x, depending on eyepiece and auxiliary objective used |
| Vertical tube |
Built-in C-mount 0.55x magnification lens (F.N. 11), compatible with 2/3 in. or smaller CCD |
| Eyepiece tube |
Fixed type |
| Eyepiece inclination |
45° |
| Interpupillary distance adjustment |
52-75 mm |
| Eyepieces (with diopter adjustment) |
C-W 10xB (F.N. 22), C-W 15x (F.N. 16), C-W 20x (F.N. 12.5), C-W 30x (F.N. 7) |
| Zooming ratio |
7.5:1 (approx.) |
| Zooming range |
0.67-5x |
| Auxiliary objectives |
G-AL 0.5x (W.D. 211 mm), G-AL 0.7x (W.D. 150 mm),
G-AL 1.5x (W.D. 61 mm), G-AL 2x (W.D. 43.5 mm) |
| Working distance |
115 mm |
| 800-1 electric centrifuge is widely used in hospitals, chemical and Biological Chemistry Laboratory for serum, plasma, immune qualitative analysis experiment. Has beautiful shape, large capacity, small volume, complete function. Its performance is stable, the speed is adjustable and can automatically adjust the balance, low temperature, high efficiency and wide applicability and advantages.
Technical Specifications:
|
Type No. |
800-1 |
|
Power source |
220V 50HZ 110V 60HZ |
|
Speed Range （rpm） |
0～4000（rpm） |
|
Time Range(min) |
0-60min |
|
Capacity （ml） |
20（ml）×6 |
|
Maximum centrifugal force(xg) |
1790（xg） |
|
Package Size （cm） |
29*29*26 |
|
Reviews
There are no reviews yet.
