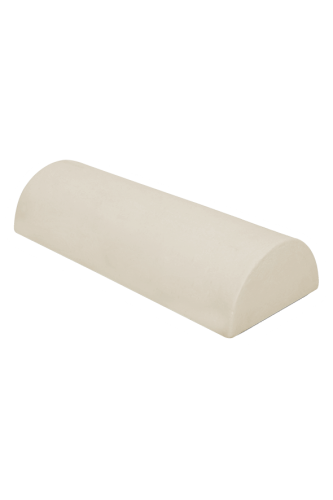

VISCO MULTI-PURPOSE PILLOW (SNORING PILLOW)

• This versatile, multi-purpose pillow can be used in all directions for extra support and allows muscles to relax in a more restful position.
• Perfect to use as a lumbar pillow, Neck Support Pillow, Wedge Pillow and Knee Pillow.
• It gives the muscles complete rest and support.
• Relieve and prevent neck pain, prevent waist, wedge and knee pain.

• TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
• WBS-TA: Vertical movement

1. V Stroke:1,450mm in Uprigh Bucky Position,
2. 1,526mm in Horizontal Bucky position.

• PBT-4 is a 4 way Floating Tabletop. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
• Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
• Full Featured Imaging Software & Excellent Digital Image Processing:

1. Provides convenient user interface and easy operation
2. Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
3. Radiographic stand & automatic collimator control function
4. DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

• Included – Software, HP Laptop Computer

1. CPU≥3.2GHz
2. Memory capacity：≥4GB
3. Hard drive capacity ：≥500 GB
4. Resolution: 1280 x 1024
5. Display size： 21 inch color LCD screen
6. 64 bit Windows 10 operation system
7. Core: i5

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
• Mechanical Parts:

1. V Stroke:1,450mm in Upright Bucky
2. Position, 1,526mm in Horizontal Bucky position.

Click Here To Download Catalogue

Features:

Safety system:

Advance Dry Heating Technology:

Heating up to the patient:

User friendly interface:

Open system:

Click Here To Download Catalogue

RZ LED iLumen EndoVue 24"

Features:

• • 1920x1200 (WUXGA), 518x324mm, 16:10
  • 178° viewing angle, 49 W
  • 24 inch TFT LCD (LED)
  • 1920 x 1200 pixel (WUXGA)
  • 2 x DVI-D
  • 1 x SD/HD/3G-SDI (BNC)
  • 2 x SOG
  • 1 x VGA (D-sub)
  • 1 x C-Video (BNC)
  • 1 x S-Video (DIN)
  • 1 x Component (RGBS, YPbPr) (5 x BNC)

Full HD Digital Camera System F 1

Features:

• 3-Chip Full HD camera with latest MOS technology for brilliant picture quality
• Pure Natural Colors technology

• best possible picture transmission to medical grade monitors
• 3 programmable remote control buttons User-friendly multilingual menu allows a large variety of setups for individual procedures and surgeons preferences
• Full HD 60fps video recording
• Full HD image saving
• USB pen drive included
• Boost function
• On-screen-menu
• 3 user settings storable
• 5x digital zoom

LUMEN LED 1 High Intensity Light Source 180W

Features:

• More than 10.000h lamp lifetime
• Latest PHASER® – Technology
• Waterproof touch control panel
• High color rendering
• High luminance
• Daylight color temperature
• Low noise level
• No UV or IR light
• Low power consumption
• Video-IN terminal - 1 x VHS (BNC)

AIRFLOW A2 INSUFFLATOR

Feature:

• Gas Flow - 20L/min
• User-friendly interface
• Highest safety standard for patients
• Available with CO2 heating system
• Pre-insufflation mode for use with Verres Cannulas
• Non-heating unit features same gasflow rates as heating unit models
• Gas connection - UNF 7/16“ male
• Gas - Medical Grade Carbon Dioxide.

**SUCTION AND IRRIGATION PUMP P1000

Feature:

• Double roll pump for precise suction- and irrigation during Laparoscopic surgeries
• Also for extraction of smoke gases that arise when using lasers and HF devices
• Optional footswitch for comfortable operation during surgery
• Permits dispensing with mechanically sensitive trumpet valves that require elaborate cleaning
• Independently digital pre-settings for maximum suction and irrigation pressures
• Digital display of actual suction and irrigation pressures
• High efficiency with rates up to 3L/min
• Color coded tubing sets
• Standby function
• Irrigation Power - 0 - 3.0 ml/min
• Suction Power - 0 - 3.0 ml/min
• Pressure - 0 - 750 mmHg.

**DIATHERMY MACHINE 200W

Feature:

• Stable and Powerful Generators,
• Highest patient safety through REM system
• Digital value indicator of chosen power output
• Monopolar and Bipolar applications
• Activation through Hand- or Footswitch
• Safe application through color-coded membrane keypad
• Max output power CUT 200W – 250Ω
• Max output power ENHANCED 120W – 250Ω
• Max output power BLEND120W – 200Ω

• Max output power FORCED COAG 150W – 150Ω
• Max output power SOFT COAG 90W – 100Ω
• Max output power BIPOLAR COAG 80W – 50Ω
• Working frequency 600 kHz
• Patient circuit F
• Mains voltage 115-230 Vac
• Mains frequency 50-60 Hz

HIGH-END TROLLEY

Feature:

• Power columns for cables
• Endoscope Holder
• Variable height support arms
• Conductive rolls
• Optional doors and rear panel in order to protect valuable equipment
• Optional main on/off switch

Accessory

• Fibre Optic Light Guide Cable Ø 4,8mm, 3000mm
• Adaptor for Fibre Optic light guide Type RZ/Storz - connection to unit

Click Here To Download Catalogue
