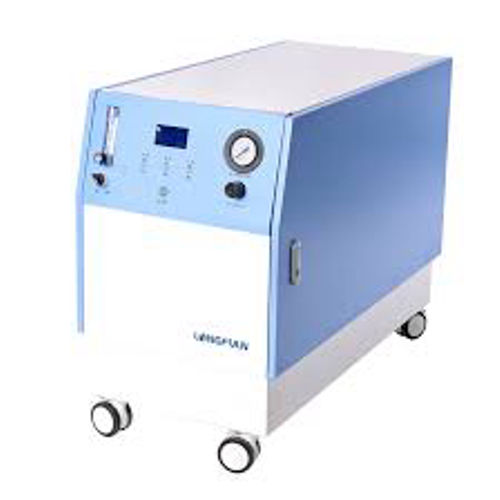

20–60 PSI High Pressure Oxygen Concentrator JAY-10-4.0

The JAY-10-4.0 is a high-pressure oxygen concentrator designed to provide a consistent oxygen supply with adjustable flow rates ranging from 1 to 10 L/min and an outlet pressure of 20–60 PSI (0.14–0.4 MPa). Its compact design and mobility make it suitable for various medical settings, including intensive care units and operating rooms. The unit features a high-efficiency three-tower adsorption system, ensuring durability and consistent oxygen purity of 93% (±3%).

Key Features

• Flow Rate: 1–10 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20–60 PSI (0.14–0.4 MPa)
• Power Consumption: ≤1250W
• Sound Level: ≤50 dB
• Net Weight: 90 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm: Blue light (>82%), Red light (<82%)
• Mobility: Equipped with wheels for easy transportation
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Suitable for hospitals with up to 100 beds
  • Compatible with hyperbaric oxygen chambers and nanobubble generators

Features

Key Specifications

Features

• ✔ Precise DLco Measurement: Accurately assesses lung diffusion capacity for CO (carbon monoxide) to evaluate gas exchange efficiency.
• Advanced Sensor Technology: High-precision sensors ensure reliable and reproducible pulmonary function test results.
• User-Friendly Interface: Intuitive software for easy operation, data analysis, and report generation.
• Compact & Portable Design: Lightweight and ergonomically designed for clinical and research applications.
• Automated Calibration: Ensures consistent accuracy and minimal operator intervention.
• Multi-Parameter Analysis: Measures DLco, lung volumes, and additional respiratory parameters for comprehensive lung function assessment.
• Compliance with Global Standards: Meets ATS/ERS guidelines for pulmonary function testing.
• Patient-Friendly Testing: Fast and comfortable procedures, suitable for all age groups.
• Rapid digital NDIR gas analyzer
• Fast and reliable evaluation of the diffusion capacity
• Unique blocking valve design, Intelligent Demand Valve
• Easy and quick gas administration, no more complicated breathing line design
• ATS/ERS recommended standard test gas mixture
• 0.3% Carbon Monoxide (CO) + 0.3%CH4 +21% Oxygen (O2) , remainder Nitrogen(N2)

Main Functions

• Complete Spirometry (Slow VC, FVC, Flow-Volume Loop, Tidal FVL, MVV)
• Bronchial dilation test pre/post dilator)
• Bronchial provocation test (without hardware)

Features

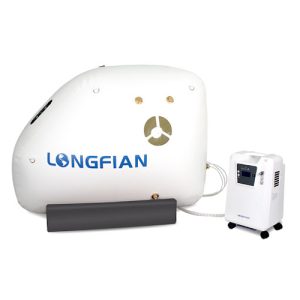

• 1.3ATA(4psi)operating pressure .
• 2 zipper seal for easier entrance .
• Cotton chamber protection cover , to avoid dirty and easy to wash .
• Most popular model for home treatment or commercial usage .Emergency valve - To speed the depressurization in emergency .
• Easy Operation - One people can operate it without assistance .
• Internal Pressure Gauge - User can observe the pressure while inside the chamber .
• Internal metal frame - Hold the shape when deflated

Features

• High pressure oxygen concentrator for small hospitals
• Manufactured by Longfian Scitech Co., Ltd.
• Thomas compressor for reliable performance
• High efficiency three-tower adsorption system for durability
• Pressure gauge on site for flexible adjustment
• Small and compact design for easy movement during emergencies
• Automatic dehydrator/refrigerated air dryer included
• Available models: JAY-10-4.0, JAY-15-4.0, JAY-20-4.0
• Flow rate options: 1-10L/min, 1-15L/min, 1-20L/min
• Oxygen purity of 93% (+3%)
• Outlet pressure range: 20-60 PSI (0.14-0.4Mpa)
• Low sound level of ≤ 50dB
• Net weight: 90kg (JAY-10-4.0), 118kg (JAY-15-4.0)
• Power consumption: ≤ 1250W (JAY-10-4.0), ≤ 2000W (JAY-15-4.0, JAY-20-4.0)
• Input frequency options: 50Hz; 60 Hz
• Input voltage options: AC 230V±10%, AC 110V ±10%
