New

20 Lead Colorful Brain Wires

$0.00

Shipped From Abroad

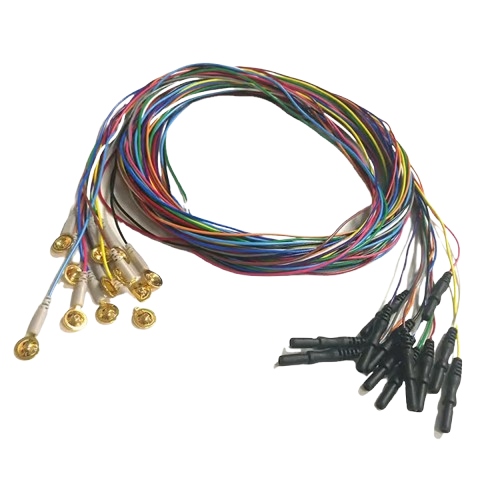

This 20-lead colorful EEG wire set features silver/gold-plated cup electrodes and TPU cables for durability and precision. Compatible with standard EEG systems, the reusable leads ensure optimal signal quality and easy application in neurodiagnostic and sleep monitoring environments.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Redy-Med

Description

Features
  • 20 color-coded lead wires for easy identification

  • Cup electrodes with silver/gold plating for high conductivity

  • Durable TPU cable for flexibility and longevity

  • Compatible with standard EEG systems (DIN 1.5mm/2.0mm connectors)

  • Reusable and CE/ISO 13485 certified

  • Suitable for EEG, EMG, and sleep studies

Technical Specifications
Specification Details
Lead Count 20 leads per set
Electrode Type Cup electrodes (silver-plated or gold-plated options)
Cable Material Thermoplastic Polyurethane (TPU), flexible and durable
Connector Type DIN 1.5mm or 2.0mm (customizable per device compatibility)
Color Coding 20 distinct colors for lead identification
Cable Length Typically 1.5 to 2.0 meters (custom lengths available)
Use Type Reusable
Application EEG, EMG, sleep studies, neurodiagnostics
Certifications CE marked, ISO 13485 compliant
Latex-Free Yes
Packaging Individually packaged or as complete 20-lead sets
Compatibility Universal EEG systems (Nihon Kohden, Biopac, Mindray, etc., with DIN input)

Reviews

There are no reviews yet.

Be the first to review “20 Lead Colorful Brain Wires”

Your email address will not be published. Required fields are marked *

Quick Comparison

Settings20 Lead Colorful Brain Wires removeNeuron Spectrum 5 removeNeuron Spectrum 65 Video EEG Monitoring System removeDIN 1.5 mm EEG Cable removeNeuron Spectrum 61..65 EEG removeCerebral Function Monitor remove
Name20 Lead Colorful Brain Wires removeNeuron Spectrum 5 removeNeuron Spectrum 65 Video EEG Monitoring System removeDIN 1.5 mm EEG Cable removeNeuron Spectrum 61..65 EEG removeCerebral Function Monitor remove
SKUSF1033560130187-7SF1033560130187-2SF1033560130187-1SF1033560130187-5
Rating
Price

$0.00

$0.00

$0.00

$0.00

$0.00

$0.00

Stock
Availability
Add to cart

DescriptionShipped From Abroad This 20-lead colorful EEG wire set features silver/gold-plated cup electrodes and TPU cables for durability and precision. Compatible with standard EEG systems, the reusable leads ensure optimal signal quality and easy application in neurodiagnostic and sleep monitoring environments.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad The Neuron-Spectrum-5 by Neurosoft is a 32-channel digital EEG system with advanced brain activity analysis, real-time brain mapping, and optional modules for long-term monitoring, polysomnography, and evoked potentials, making it ideal for clinical and research applications.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad The Neuron-Spectrum-65 Video EEG Monitoring System by Neurosoft is an advanced 39-channel EEG system designed for comprehensive neurophysiological diagnostics, including video EEG monitoring, polysomnography (PSG), and long-term studies. It features high-quality signal acquisition, real-time impedance monitoring, and multimodal data integration for clinical and research applications.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad High-performance EEG cable with DIN 1.5 mm connector designed for accurate brainwave signal transmission. Made from flexible, durable TPU material with color-coded leads, it's compatible with standard EEG systems for neurodiagnostic and sleep study applications.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad The Neuron-Spectrum 61–65 EEG series offers advanced neurophysiological diagnostic systems with 11 to 39 channels, supporting ICU monitoring, routine EEG, long-term video EEG, and polysomnography. These systems feature real-time impedance monitoring, multimodal stimulation, and high-quality data acquisition for clinical and research applications.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad The Neuromonitor by Neurosoft is a cerebral function monitor designed for long-term brain activity monitoring, particularly in neonatal intensive care units (NICUs). It features a touchscreen interface, automatic aEEG pattern detection, synchronous video recording, and can be expanded into an 8-channel EEG system for comprehensive neurodiagnostics.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Content
Features
  • 20 color-coded lead wires for easy identification

  • Cup electrodes with silver/gold plating for high conductivity

  • Durable TPU cable for flexibility and longevity

  • Compatible with standard EEG systems (DIN 1.5mm/2.0mm connectors)

  • Reusable and CE/ISO 13485 certified

  • Suitable for EEG, EMG, and sleep studies

Technical Specifications
Specification Details
Lead Count 20 leads per set
Electrode Type Cup electrodes (silver-plated or gold-plated options)
Cable Material Thermoplastic Polyurethane (TPU), flexible and durable
Connector Type DIN 1.5mm or 2.0mm (customizable per device compatibility)
Color Coding 20 distinct colors for lead identification
Cable Length Typically 1.5 to 2.0 meters (custom lengths available)
Use Type Reusable
Application EEG, EMG, sleep studies, neurodiagnostics
Certifications CE marked, ISO 13485 compliant
Latex-Free Yes
Packaging Individually packaged or as complete 20-lead sets
Compatibility Universal EEG systems (Nihon Kohden, Biopac, Mindray, etc., with DIN input)
https://youtu.be/JDAsx3pO4U8?list=PLU2BvNtfeStNd_cVOfahLwAr4ucZS1fpm
Key Features
  • 32 EEG Channels Plus 9 Polygraphic Channels: Allows for the recording of various physiological signals, including electromyography (EMG), electrocardiography (ECG), and electrooculography (EOG).

  • Advanced EEG Analysis: Offers 11 types of analysis, such as amplitude, spectral, coherence, and wavelet analyses, along with online and offline brain mapping and epileptiform activity detection.

  • User-Friendly Interface: Features an impedance measurement and acquisition button on the front panel for quick electrode placement verification and signal acquisition initiation.

  • Expandable Functionality: Supports 12 optional modules, including long-term monitoring, polysomnography, cerebral function monitoring, and evoked potentials, enhancing its adaptability for various clinical and research applications.

  • Flexible Software Licensing: The Neuron-Spectrum.NET software can be installed on an unlimited number of workstations, facilitating data analysis and report generation across multiple locations.

  • 21 or 32 EEG channels Depending on specifics of your work, choose 21 or 32-channel EEG system for high-quality signal acquisition in any environment. You can also select the necessary accessories and equipment to complete your EEG system.
  • 12 options to expand the device functions Due to four high-speed broadband channels, you can use the device as a reliable EMG, PSG and ERG system. Special Neuron-Spectrum-LEP software and equipment for short- and long-latency evoked potentials allow you to record:
    • pattern and flash visual evoked potentials;
    • short-, middle- and long-latency auditory evoked potentials;
    • short- and long-latency somatosensory evoked potentials;
    • cognitive evoked potentials by P300, MMN, CNV.
    Using the related software modules and equipment, you can also perform the following studies:
    • EMG;
    • EOG;
    • ERG;
    • PSG;
    • long-term video EEG monitoring;
    • cerebral function monitoring (aEEG).

  • Full range of PSG channels Using the Neuron-Spectrum system, you can perform PSG studies in a medical facility. The sensors can be connected to a special portable patient unit that allows quick disconnection from the recorder and reconnection to it (for example, when a patient leaves the examination room for a while).
  • Impedance/acquisition button on the front panel For better usability, the impedance/acquisition button is located on the front panel of the unit. It allows a specialist to check electrode placement quality shown by LED indicators just at the patient's spot without computer assistance which is much timesaving. You can also start EEG signal acquisition using the same button.
Download Brochure
https://youtu.be/JDAsx3pO4U8
Features
  • long-term video EEG monitoring
  • EEG workstation and mobile system
  • up to 3 Full HD video cameras
  • special electrode caps
  • EEG analysis during acquisition
  • pre-surgical monitoring to localize pathologic activity in the brain
  • data storage on removable media

Advantages
Long-term video EEG monitoring Neuron-Spectrum-64 provides synchronous long-term video and EEG monitoring even for several days. The high-quality EEG signal and frame-accurate video synchronization are guaranteed. You can also connect the recording unit to a local area network (LAN) to place the patient in one room, and the analysis and data processing unit to another one. EEG workstation and mobile system Depending on your needs, we can offer you stationary or mobile system for video EEG monitoring. If you have a special room, you can place EEG workstation here. In this case, the patient’s room and the room for EEG review and analysis can be removed from each other at any distance. If there is no such room, the mobile system for video EEG monitoring is a perfect choice that allows you to perform examinations in any suitable room of your medical facility. Up to 3 Full HD video cameras In your EEG lab, you can perform continuous synchronous video EEG recording using up to 3 network cameras with maximum resolution of 1920*1080 (Full HD), automatic day and night video recording with infrared lighting, and a built-in microphone. With such functionality, you will never miss a single detail. The storage and review of recorded video is ensured by modern video compression algorithms and editing tools. Special electrode caps The special electrode caps with built-in electrodes are a perfect choice for long-term EEG monitoring. There is no need to use adapters or other devices, just connect the cap to the standard connector on the EEG system. Our systems are delivered with special extension cables for electrode caps for the patients to feel comfortable and move freely within the place they are examined. The quality of electrode placement is very important during the whole acquisition process. The function of continuous impedance monitoring is implemented in Neuron-Spectrum-64. If the impedance of any electrode increases, the software informs the operator immediately. Throughout the examination, the impedance of each electrode is saved and displayed as a trend. So, you can always see the impedance value at the required time moment. EEG analysis during acquisition To save your time on routine operations, EEG search and analysis algorithms are built into Neuron-Spectrum.NET. And you can focus on really important things. During the acquisition, the software is already recording suspicious phenomena and making calculations and analysis of EEG signal. So, you can view the recorded video and EEG traces directly during the acquisition. By the time the examination is finished, you can create a report generated automatically according to a preset template. Pre-surgical monitoring to localize pathologic activity in the brain Before surgical therapy of pharmacoresistant epilepsy, it is important to localize the pathological activity in the brain. Using Neuron-Spectrum-64, you can perform the pre-surgical monitoring with both scalp and invasive (cortical or subcutaneous deep) EEG electrodes and calculate the location of pathological areas with a special 3D localization software. During the acquisition, the monopolar, bipolar or mixed montages can be used in the 10-20 or 10-10 systems. You can change the montage at any moment: before or during the acquisition or during the review and analysis of EEG record. You can also change the channel settings. For example, if you cannot remove the EEG baseline in frontal leads, specify the higher values for high-pass filter only for them. Change the parameters of any channel directly during the acquisition. Data storage on removable media When the exam is finished, you can record it on a removable media and give it to the patient or send to another medical facility. Using Neuron-Spectrum.NET, you can save the study to DVD or a flash card with a special viewer program and view the examination on any computer without installation.
Specifications
Specification Details
EEG Channels 39 referential channels
Differential Channels 8 AC/DC channels (ECG, EOG, EMG, etc.)
Dedicated Channels Separate ECG and EOG channels
Sampling Rate 16 kHz ± 1%
A/D Conversion 24-bit resolution
Input Voltage Range –1.1 V to 1.1 V (software configurable)
Input Impedance >100 MΩ
External Connections SpO₂ integration support
Connectivity USB interface for data transfer
Continuous Impedance Monitoring Real-time electrode contact assessment
Synchronous Video Recording Supports up to 3 network cameras
Auditory Stimulator Supports event-related potentials (ERP) studies
Dimensions 200 mm (W) × 135 mm (D) × 45 mm (H)
Weight ~767 grams
  Download Brochure
Key Features
  • DIN 1.5 mm Connector: Standard size for compatibility with most EEG machines

  • High Signal Fidelity: Minimizes signal loss for accurate EEG readings

  • Flexible TPU Cable: Durable, tangle-free, and latex-free for patient comfort

  • Color-Coded Leads: Easy identification and quick setup

  • Reusable Design: Long-lasting and cost-effective

Technical Specifications
Specification Details
Connector Type DIN 1.5 mm
Electrode Type Cup electrode (silver- or gold-plated)
Lead Wire Material Multi-strand silver-plated copper with TPU insulation
Cable Jacket Thermoplastic Polyurethane (TPU)
Color Coding AHA/IEC standard, multicolor set
Cable Length 1.5 – 2.0 meters (customizable)
Reusability Yes
Compatibility EEG machines with 1.5 mm DIN input
Certifications CE, ISO 13485
Packaging Single lead or full set, individually sealed
Latex-Free Yes
https://youtu.be/JDAsx3pO4U8?si=fzekZEwG6_K2pHgL
Features
Flexible software The advantage of the Neuron-Spectrum.NET software is its wide functionality. You can use the simple interface, or you can customize the software using the special settings. Before the study, you may choose the pre-defined electrode montage or create your own one depending on the type of test you perform. Using the convenient navigation tools, you can quickly view the recorded EEG curves, highlight artifacts, and arrange epochs. For the advanced analysis of recorded data, the contemporary tools for mathematical analysis of EEG are used. The automatic report is generated using the preset report templates and integrated glossary. The report is easily edited, saved to PDF, printed or sent automatically. Electrode impedance indication at the lead inputs The impedance indicators on the amplifier ensure the continuous impedance monitoring during the acquisition, timely correction of electrode placement and good quality of EEG recording. Operation mode can be switched with just one button on the front panel. The LED indicator next to the button shows the mode: acquisition, EEG monitoring or impedance measurement. It makes the EEG study much easier. Electrodes and caps of various manufacturers During the study, the disk, cup and bridge electrodes as well as the electrode caps of different sizes can be applied. They are connected to the amplifier unit via touch-proof connectors and standard plug. Operation in unshielded environments The EEG systems of Neuron-Spectrum line can be used in any suitable room, which is convenient for staff and comfortable for patients. The costs for preparing a specialist’s workplace are also reduced significantly. The device is small and USB powered, so you can establish your EEG lab anywhere. Download Brochure
Features
  • easy and convenient to use
  • automatic selection of pathological aEEG patterns
  • synchronous video recording
  • EEG system with 8+ channels

Applications
Easy and convenient to use To start the monitoring, place four electrodes on the patient’s head and touch several buttons on the screen. User-friendly touchscreen interface allows you to control the device without keyboard and mouse. The system is placed at the smooth-running trolley which makes it easy to move the system to another ward and back. Neuromonitor is easy to use. It can be operated by the attending staff of intensive care unit without long-term special training. Clinical application Nowadays, CFM is required for many newborns. In countries with the most developed healthcare every newborn with the minimal suspicion of cerebral function abnormalities must be monitored. Such abnormalities can be a result of genetics or pregnancy/delivery complications. In some national recommendations and guidelines, CFM is an obligatory screening technique for newborns suffering from hypoxic-ischemic encephalopathy to detect the silent epileptiform activity. Automatic selection of pathological aEEG patterns At most severe CNS abnormalities, EEG and aEEG get a certain specific pattern. There are several types of aEEG patterns that can be easily differentiated and interpreted even by inexperienced technical staff. In addition, Neuromonitor software is able to detect most of patterns automatically. Then, the detected pattern is classified and color-coded for easy review. Synchronous video recording The video recording of an exam is done synchronously with EEG acquisition and aEEG trend, ECG and SpO2 data. It can be used to make the exact diagnosis in complex cases when visual interpretation of trends is ambiguous. EEG System with 8+ Channels In complex cases, Neuromonitor can be easily transformed to full-function 8-channel EEG system for long-term EEG video monitoring to record EEG, video and audio information, detect spikes, sharp waves, display maps, etc. Download Brochure
