20Psi High Pressure Oxygen Concentrator JAY-10 (20PSI)

$0.00

Shipped From Abroad

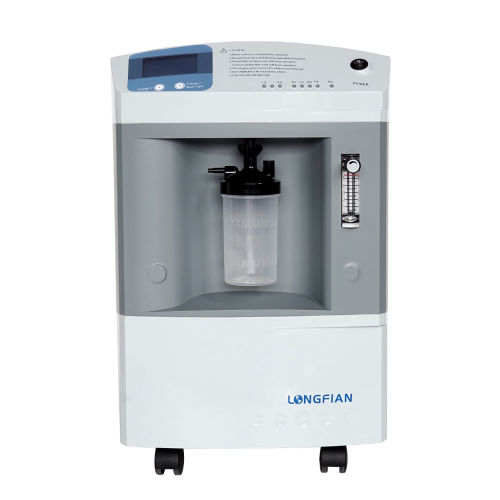

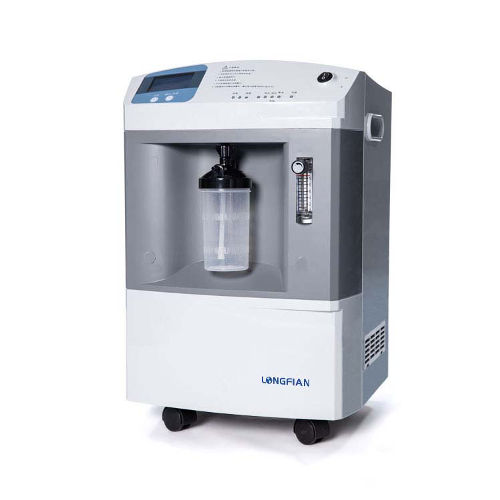

The Longfian JAY-10 (20PSI) is a compact, high-pressure oxygen concentrator delivering up to 10 L/min at 20 PSI, ideal for medical settings requiring reliable and continuous oxygen supply.​

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
SF1033560130188-14
Brands:: Longfian

Description

The JAY-10 (20PSI) oxygen concentrator by Longfian is designed to provide a consistent and high-pressure oxygen supply for various medical applications. With an adjustable flow rate ranging from 0.5 to 10 L/min and an outlet pressure of 20 PSI (0.14 MPa), it ensures optimal oxygen delivery for patients with conditions such as interstitial lung disease. Its user-friendly interface, compact design, and advanced safety features make it suitable for hospitals, clinics, and home care settings.​

Key Features
  • Flow Rate: 0.5–10 L/min
  • Oxygen Concentration: 93% (±3%)
  • Outlet Pressure: 20 PSI (0.14 MPa)
  • Power Consumption: ≤880W
  • Sound Level: ≤50 dB
  • Net Weight: 27 kg
  • Dimensions: 365 × 375 × 600 mm
  • Alarms:
    • Power failure alarm
    • High and low pressure alarm
    • Low oxygen concentration alarm
  • Display: Large LCD showing operating parameters
  • Additional Features:
    • Easy dial flow control
    • Indicator lights for operating status
    • Optional dual flow function for two patients
    • US humidifier bottle with 6 PSI pressure relief valve
    • Top storage box for accessories
    • Suitable for use with nebulizers
    • Continuous operation capability
