Auto Lensmeter JD-2000

Brands: zbxyoptics

~~$0.00~~

Shipped From Abroad

JD-2000 Auto Lensmeter delivers fast, precise lens measurements with LCD display, automatic recognition, and user-friendly operation for eye care professionals.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: zbxyoptics

Description
Reviews (0)

Description

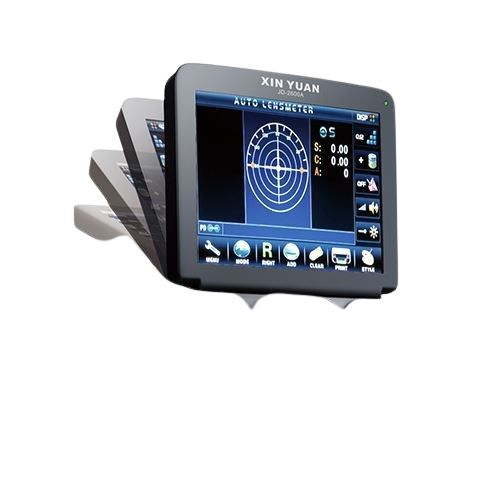

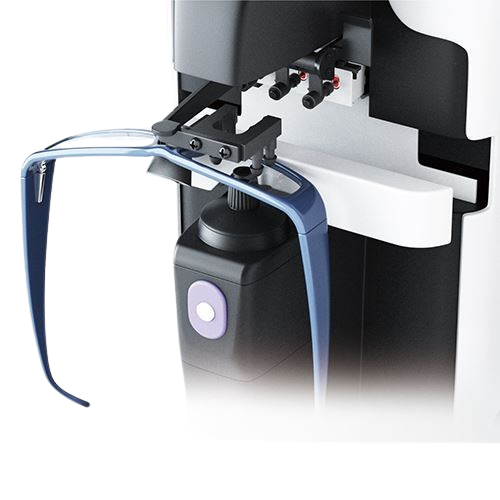

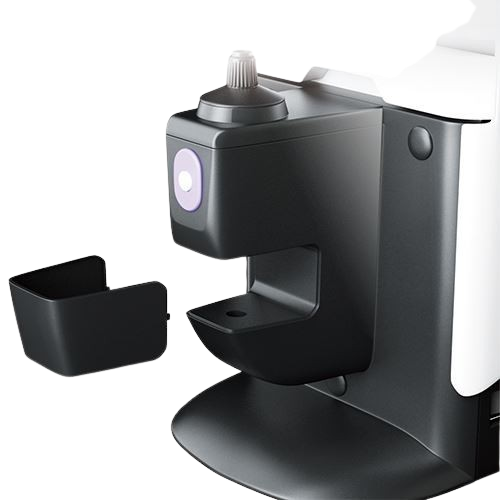

The JD-2000 Auto Lensmeter is a precise and user-friendly device designed for quick and accurate measurement of optical lenses. It supports single vision, progressive, and contact lens measurements, offering reliability in both clinical and optical shop settings. With its advanced technology, clear LCD display, and fast processing speed, the JD-2000 ensures efficient workflow and dependable results.

Key Features

Automatic measurement of single, progressive, and contact lenses
High-precision sphere, cylinder, axis, and prism measurements

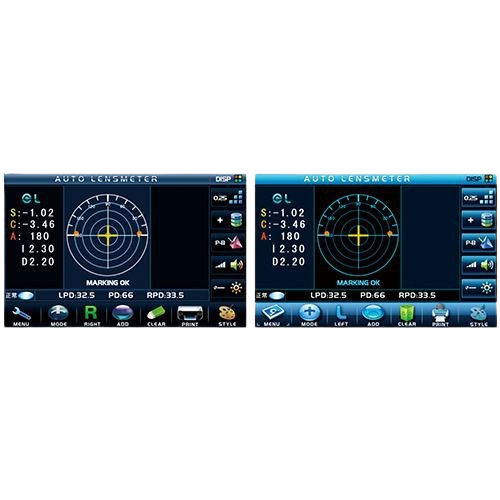

Easy-to-read LCD display for enhanced visibility
Fast measurement response for increased efficiency
Compact and ergonomic design for convenience
Suitable for optical shops, clinics, and laboratories

Technical Specifications

Range of measurement
Sphere	0~±25m^-10.01/0.12/0.25m^-1step
Cylinder	0~±9.99m^-10.01/0.12/0.25m^-1 step
Axis	0°~180° (1°step)
Add.	0~+9.99m^-1 0.01/0.12/0.25m^-1 step
Prism degree	0~15m^-1 0.01/0.12/0.25m^-1 step
Measurement mode
Cylinder	+,+/-,-
Prism	X-Y, P-B
Contact lens	Soft/hard lens
Measuring mode	Single/progressive/ automatic recognition
Specifications
Diameter of lens	Φ20~Φ108mm
PD	40~90mm, 0.5mm step
Speed of measurement	0.1second
Display	7″LCD/TFT
Printer	Thermal printer
Dimension	196mm286mm442mm
Weight	~6kg
Power supply	100~240V 50~60Hz

Reviews

There are no reviews yet.

Be the first to review “Auto Lensmeter JD-2000”

Quick Comparison

Auto Lensmeter JD-2000 remove Handheld Digital Auto-refractometer remove Operation Microscope remove Portable Keratometer remove Portable Rebound Tonometer remove Applanation Tonometer remove

Name Auto Lensmeter JD-2000 remove Handheld Digital Auto-refractometer remove Operation Microscope remove Portable Keratometer remove Portable Rebound Tonometer remove Applanation Tonometer remove

Image $Mecan AutoSight MCE-900 Handheld Digital Autorefractometer$

SKU SF1033560107-2 SF1033560107-24 SF1033560107-16 SF1033560107-17 SF1033560107-1

Rating

Price

~~$0.00~~

~~$0.00~~

$2,695.00

~~$0.00~~

$1,815.00

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad JD-2000 Auto Lensmeter delivers fast, precise lens measurements with LCD display, automatic recognition, and user-friendly operation for eye care professionals.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad AutoSight 900 is a portable vision screener for patients at any age. Its working principle is the refraction of light.

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad YZ20P5 Operation Microscope is a simple binocular coaxial microscope for a single man. The Operation Microscope is small, light, and convenient. It has high agility and can meet the requirements for general ophthalmology operation. The microscope fits mobile medical treatment.

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad Ultra-small corneal curvature tester, is mainly used to measure the corneal curvature radius and diopter, wireless output print data.

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad Tonometer SW-500 with vertical and horizontal two working modes, wireless output print data.

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad The product is designed on the principle basis of Goldman tonometer. It can be connected with slit lamp(Carl Zeiss type).

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

The JD-2000 Auto Lensmeter is a precise and user-friendly device designed for quick and accurate measurement of optical lenses. It supports single vision, progressive, and contact lens measurements, offering reliability in both clinical and optical shop settings. With its advanced technology, clear LCD display, and fast processing speed, the JD-2000 ensures efficient workflow and dependable results.

Key Features

Automatic measurement of single, progressive, and contact lenses
High-precision sphere, cylinder, axis, and prism measurements
Easy-to-read LCD display for enhanced visibility
Fast measurement response for increased efficiency
Compact and ergonomic design for convenience
Suitable for optical shops, clinics, and laboratories

Technical Specifications

Range of measurement
Sphere	0~±25m^-10.01/0.12/0.25m^-1step
Cylinder	0~±9.99m^-10.01/0.12/0.25m^-1 step
Axis	0°~180° (1°step)
Add.	0~+9.99m^-1 0.01/0.12/0.25m^-1 step
Prism degree	0~15m^-1 0.01/0.12/0.25m^-1 step
Measurement mode
Cylinder	+,+/-,-
Prism	X-Y, P-B
Contact lens	Soft/hard lens
Measuring mode	Single/progressive/ automatic recognition
Specifications
Diameter of lens	Φ20~Φ108mm
PD	40~90mm, 0.5mm step
Speed of measurement	0.1second
Display	7″LCD/TFT
Printer	Thermal printer
Dimension	196mm286mm442mm
Weight	~6kg
Power supply	100~240V 50~60Hz

Handheld Digital Auto-refractometer(AutoSight 900) is a portable vision screener for patients at any age. Its working principle is the refraction of light. Optical rays are focused on a sensor after passing through the eye's refractive system. The spherical power, cylindrical power, and axis of both eyes can be obtained by digital signal processing. Features of Handheld Digital Auto-refractometer:

Quick: Automatic and convenient. Press the button at the working distance (35cm/14in) and that's it. The result will be automatically shown in 5 seconds.
Accurate: Objective measurement of diopter is obtained from optical signal. The result is not affected by various external factors.
Intelligent: Detects multiple eye problems in one measurement including myopia, hyperopia, astigmatism and anisometropia

Technical Specifications of Handheld Digital Auto-refractometer:

Item		Range	Interval	Tolerance
Spherical (S)	Myopia Mode	-9.00D~ +2.50D	0.25D	±0.50D or ±20% (whichever is greater)
	Normal Mode	-6.00D ~ +8.00D
Cylindrical(C)		-3.00D~0.00D	0.25D	±0.50D or ±20% (whichever is greater)
Axis(A)		0°~180°	1°	±5°

Operation Microscope(YZ20P5) is a simple binocular coaxial microscope for a single man. The Microscope is small, light, and convenient. It has high agility and can meet the requirements for general ophthalmology operation. The microscope fits mobile medical treatment. Features of Operation Microscope:

Multi-layer coating technology is used on optical lenses to enhance the transmission rate and prevent mildew.
Foot-controlled focus, three-step magnification change, good depth of field of view, and good binocular fusion to meet the need of cataract surgery.
Using apochromatic technology to make different wavelengths of the light focus near the focal point behind the lens, so as to make the operator's vision more clearly.
The machine weighs only 41Kg to be light and compact and is especially applicable for mobile medical.
Optional desktop components to make the machine more portable and can also be customized according to special requirements to meet the needs in ophthalmology, ENT and other surgery.
Optional F250/F300/F400 lens.

Technical Specifications of Operation Microscope:

Eyepiece Magnification	12.5×
Focal Length of Objective Lens	F=200
Working Distance	190 mm
Magnification for Main Microscope	5.3×, 8×, 16×
Diameter of Field	37 mm, 25 mm, 16.7 mm
Diopter Adjustment	±5D
Pupillary Distance	50 mm ～ 70 mm
Maximum Resolution	100 LP/mm
Light Source	12V/100W halogen lamp for medical use
Illumination Type	6° coaxial illumination of the cold light source
Coaxial Illuminance	≥30,000 Lx
Reaching Radius of Arm	870 mm
Adjustable Vertical Range	700 mm~1100 mm
Fine Focusing Range	30 mm
Input Voltage	AC 220V/110V±10%, 50Hz/60Hz
Power Consumption	120 VA
Fuse	AC 250V T4.0A, AC 125V T8.0A
Electrical Safety Standard	IEC 60601-1, Class I
Packing Volume	0.2 m3，1 carton
Total Weight	41 kg

Click Here To Download Catalogue

Portable Keratometer Features: Ultra-small corneal curvature tester, is mainly used to measure the corneal curvature radius and diopter, wireless output print data. Technical Specifications:

Model	SW-100
Measuring Range	6.5mm~9.5mm: ±0.05mm: 0.01mm
Precision	± 0.05mm
Resolution of Curvature Radius of Cornea	0.01mm
Single Measuring Time	0.03s
Output	Wireless Infrared Thermal Printer
Can observe the eye directly through the screen.
Weight	0.5Kg(with batteries)
Dimension	240mmx90mmx60mm
Power	500mW+15%

Tonometer SW-500 with vertical and horizontal two working modes, wireless output print data. The equipment is used to measure intraocular pressure, using the principle of: the probe hits the surfaces of different hardness at a certain speed, has a different reaction when the probe rebounds. Be of advantages of high accuracy, portable, without anesthesia, without the cross-infection, etc. Features:

Measurement can go along both in standing and lying posture
Wireless data printing
Easy to learn, easy to use
Lightweight and handy
No anesthesia, avoiding discomfort reaction

Technical Specifications:

Performance Index:
Measuring Range :	3mmHg～70mmHg
Measuring Error:	±1.5mmHg(3mmHg≤intraocular pressure≤25mmHg)
Measuring Error:	±2.5mmHg(25mmHg＜intraocular pressure≤70mmHg)
Environment Requirement:
Transport and Storage:	Ambient temperature:-20℃~+55℃
	Relative moisture:≦95%
	Atmosphere pressure:500hPa~1060hPa
Running:	Ambient temperature:+5℃~+40℃
	Relative moisture:≦80%
	Atmosphere pressure:700hPa~1060hPa
	Rating voltage: DC3V(2 AA Batteries)
	Rating input power:1VA

Applanation Tonometer is designed on the principle basis of Goldman tonometer. It can be connected with slit lamp(Carl Zeiss type). Features of Applanation Tonometer:

When used with slit lamp, it can be used to examine the eyes and measure ocular pressure.
Accurate measurement and total tolerance are less than 0.066KPa(0.55Hg).
Directly get the ocular pressure and do not need to look up the conversion table.
The measured ocular pressure is not affected by hardness of eye.
The affected?ocular volume is just 0.56 cubic millimeter.
Adjustable measuring pressure ensures the long-term stability and reliability.

Technical Specifications Applanation Tonometer:

Measuring Range: 0~1064 Kpa
Light Ring Displacement: 1.53×2=3.06mm
Diameter of Prism Head: 7mm
Moving Range of Prism Head: 3mm

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A
