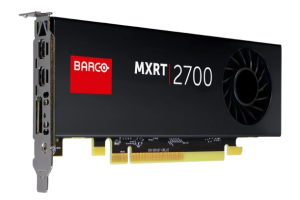

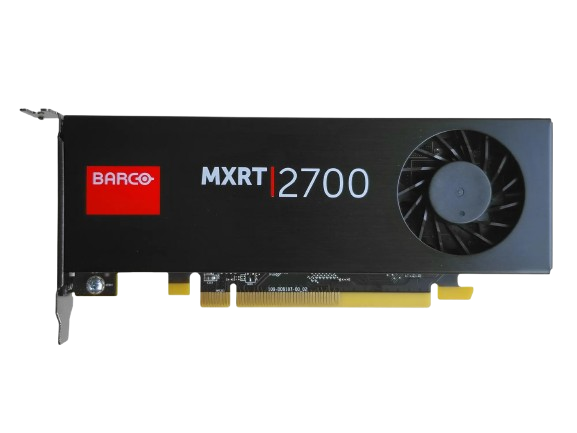

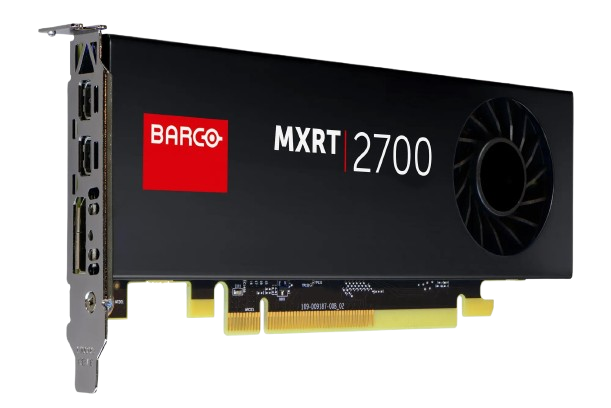

Barco MXRT-2700 Medical Display Controller
$0.00
Shipped From Abroad
The Barco MXRT-2700 is a high-performance medical display controller designed for diagnostic imaging. It supports multiple high-resolution displays, delivers smooth image rendering, and ensures optimal grayscale and color accuracy for radiology and PACS workstations in clinical environments.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The Barco MXRT-2700 is a reliable and efficient medical display controller tailored for radiology and clinical imaging. Featuring 2GB of GDDR5 memory, PCIe Gen3 x8 interface, and support for up to three DisplayPort 1.4 outputs, it ensures seamless visualization of medical images with precision and stability. Optimized for PACS and diagnostic viewing stations, the MXRT-2700 delivers consistent 10-bit grayscale and 30-bit color depth performance, combining low power consumption with high-quality rendering for professional healthcare environments.
Your journey in improved workflow begins here
The Barco MXRT-2700 graphics card delivers the essential workflow features, quality, and support to ensure radiologists can perform at their full potential. With 2GB of graphics memory driving three DisplayPort 1.4 outputs, it is the ideal solution for those looking for a cost-effective, reliable professional graphics card that can fit almost any workstation, including small, power-constrained systems.
Whether driving diagnostic, clinical, or auxiliary displays, the MXRT-2700 is fully functional as a main display controller or complementing a more advanced multi-head configuration. Key features include 3 ports to cover most basic display configurations, ample memory for PACS image loading, and low power requirements compatible with entry-level workstations in a small form factor, for when compact size really matters.
Features
-
2GB GDDR5 graphics memory
-
PCIe Gen3 x8 interface
-
Supports up to three displays
-
10-bit grayscale and 30-bit color depth
-
DisplayPort 1.4 and Mini DisplayPort outputs
-
Compact single-slot form factor
-
Low power consumption (<35 W typical)
-
Optimized for medical imaging and PACS workstations
Technical Specifications
-
Memory: 2GB GDDR5
-
Memory Bandwidth: 48 GB/s
-
Memory Interface: 64-bit
-
Bus Interface: PCI Express Gen3 x8
-
Outputs: 1× DisplayPort 1.4, 2× Mini DisplayPort 1.4
-
Power Consumption: <35 W (typical), <40 W (max)
-
Color Support: 10-bit grayscale, 30-bit color
-
Operating System: Windows 10/11 (64-bit)
-
Operating Temperature: 0°C – 55°C
-
Form Factor: Single-slot, low-profile
