Barco MXRT-4700 Medical Display Controller
$0.00
Shipped From Abroad
The Barco MXRT-4700 is a medical display controller offering 4 GB GDDR5 memory, support for three DisplayPort 1.4 outputs, and 30-bit color depth—designed for reliable, high-quality imaging in clinical and PACS environments.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description

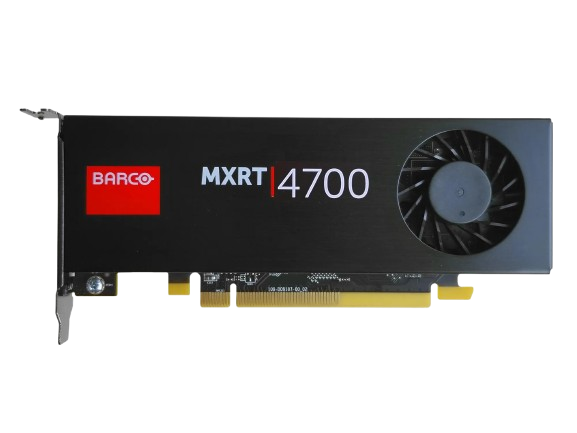

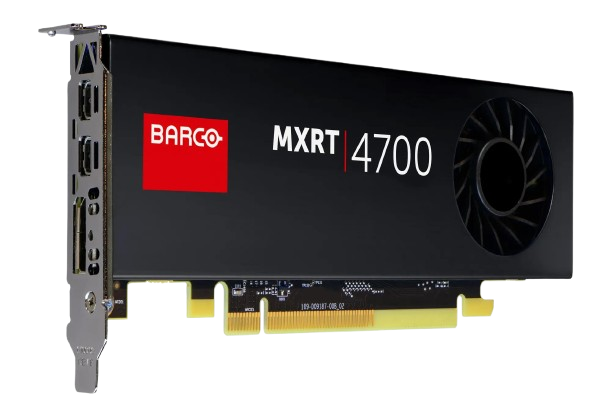

The Barco MXRT-4700 is a compact, high-precision display controller tailored for diagnostic and medical imaging workflows. With 4 GB of GDDR5 memory, 128-bit interface, and 96 GB/s memory bandwidth, it handles moderately large image datasets with ease. It provides three video outputs (1 DisplayPort + 2 mini-DisplayPorts) and supports deep grayscale and color (10-bit grayscale / 30-bit color). Its low power consumption (< 50 W) and small form factor make it ideal for hospital reading stations or remote radiology setups.
The Barco MXRT-4700 graphics card packs all the power expected from larger display controllers into a compact package capable of delivering seamless performance, whether reading at the hospital or from home. With 4GB of graphics memory driving three DisplayPort 1.4 outputs, it is the ideal solution for those looking for a no-compromise, reliable professional graphics card, versatile enough to drive larger resolution displays.
Accelerate your workflow application responsiveness with 512 stream processors and enable more efficient data transfers between the GPU and CPU with PCIe 3.0 support. Key features include 3 ports to cover most basic display configurations, increased memory for larger PACS data loading, EDID emulation for multi-workstation configurations, and 30-bit color depth support in a low-power, compact form factor.
Features
-
4 GB GDDR5 display memory
-
128-bit memory interface
-
96 GB/s memory bandwidth
-
PCIe Gen3 x8 bus compatibility
-
1 × DisplayPort 1.4 + 2 × Mini-DisplayPort 1.4 (with locking adapters)
-
Support for 10-bit grayscale and 30-bit color depth
-
Compact single-wide PCIe slot form factor
-
Low power consumption (< 50 W)
-
EDID emulation support for multi-workstation setups
-
Support for Windows 10/11 (64-bit) and broader medical imaging compatibility
Technical Specifications
-
Display Memory: 4GB GDDR5
-
Memory Interface: 128-bit
-
Memory Bandwidth: 96GB/s
-
Pixel Depth / Color Support: 10-bit grayscale, 30-bit color
-
Bus Interface: PCI Express Gen3 x8
-
Outputs / Connectors: 1 × DisplayPort 1.4, 2 × Mini DisplayPort 1.4
-
Power Consumption: <50 W typical
-
Operating System Support: Windows 10/11 (64-bit)
-
Operating Temperature: 0°C to 55°C
-
Form Factor / Dimensions: Single-wide PCIe slot, 168 mm × 60 mm
-
Additional Features: EDID emulation, medical display compliance
