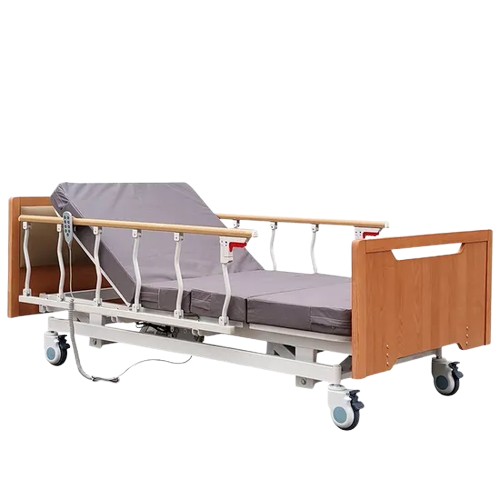

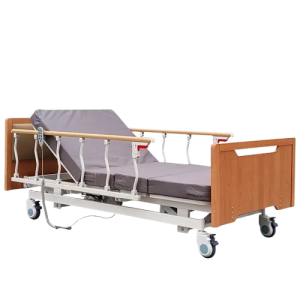

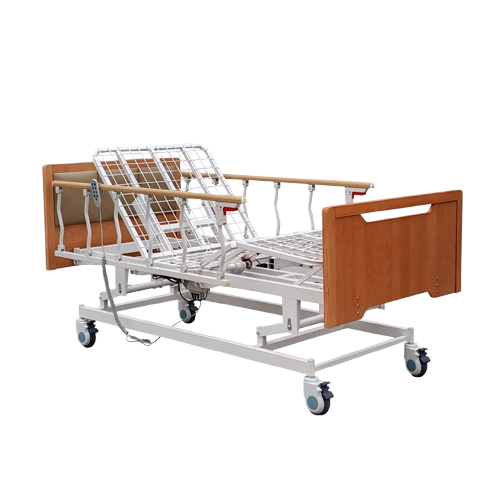

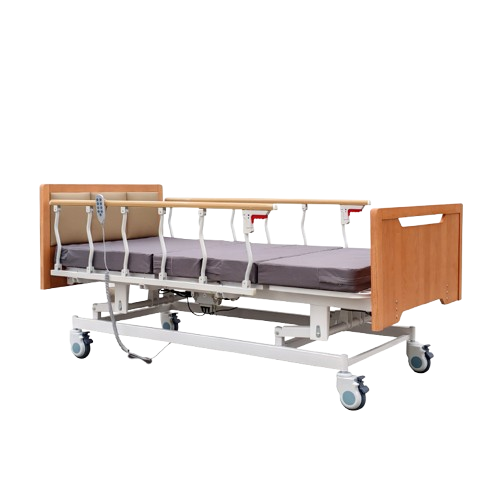

CN-E31 3 Functions Hospital Wood Medical Bed

The 3 Functions Hospital Wood Medical Bed-CN-E31 is designed for patient comfort and caregiver ease. It features 4-section electric adjustments for the back and legs. The bed also includes a triple-action knee break for improved pressure relief. This bed is equipped with a high-quality stamped bedboard. It ensures durability, comfort, and proper ventilation for patients. The bed also offers moisture protection with an IPX4 rating, making it easier to maintain. The intelligent control system reduces the workload for nursing staff. Remote monitoring and management features allow for better patient care and efficiency.

The bed’s design includes high-grade coiled cables. These prevent strain and kinking, ensuring long-term use. The sturdy under-frame hoist clearance supports easy patient transfers.

Advantages

• Electric adjustment for comfort: 4-section electric back and leg adjustments with triple-action knee break for customizable positioning, pressure relief, and patient comfort.

• Durable and hygienic design: Stamped bedboard ensures advanced pressure care, durability, and ventilation, with IPX4 moisture protection for increased lifespan and hygiene.

• Efficient nurse management: Intelligent control and remote monitoring capabilities reduce nurse workload, improve care efficiency, and allow remote patient management.

• High-quality construction: Features high-grade coiled cables for durability, sturdy under-frame hoist clearance for easy patient transfer, and magnetic/electric field isolation for safety.

• International compliance: Fully compliant with IEC 60601-2-52 standards, ensuring safety, reliability, and effective performance in healthcare settings.

Specifications

Use Case

• Suitable for critical patients: Designed for critically ill patients, post-operative rehabilitation, and long-term bedridden individuals, offering enhanced comfort and support.

• Ideal for home care: Provides optimal functionality for home-based elderly care, including patients with chronic diseases like Parkinson's or Alzheimer's.

• Rehabilitation settings: Useful in rehabilitation centers for sports injuries and spinal cord recovery, enhancing rehabilitation effectiveness.

• Hospice care and dialysis: Perfect for home dialysis and hospice care, offering comfort and medical-grade care in non-hospital settings.

• Community clinics: Ideal for community clinics, supporting daily care for patients with mobility issues and chronic conditions.

• BILIPOD LED Double Surface Phototherapy Unit Sturdy Baby Trolley consists of –  Collapsible Acrylic Side Panels  Transparent Baby Tray with Bubble Mattress  Height Adjustment and Angle Adjustment for Overhead LED Module  Four Swivelling castor wheels with brakes Certified Also available - Bilipod Double Surface Phototherapy Unit with Detachable trolley
• Uniform Light Distribution with 11 High Intensity LED Lamps uniform body coverage • Observation Lamp Two Observation White LEDs provide enough light to observe the color of baby’s skin • High Irradiance Levels Irradiance > 30 µW/cm²/nm enables faster bilirubin breakdown • Pin Drop Silent Operation zero noise cooling fan • Optimum Wavelength Range: 420 to 490 nm • Very Low Power Consumption of only 30W • Effective Surface Area : 40cm x 50cm
• Life of Lamps - 30000 hours • Lamp Tilt up to 90° • Height Adjustability up to 50cm • Light Weight Lamp Unit weighs less than 3 Kg • Portable can be placed above Infant incubator or below the Infant Warmer Bassinet to give under surface Phototherapy • Sleek & Compact Lamp Unit Size : 45 x 30 x 5 cm takes minimum space • Timer: LCD Based Timer measuring Total Lamp Usage and Patient Timer
• BiliProbe Irradiance Meter Handheld Irradiance (Flux) meter for measurement of the output of conventional Phototherapy Units.  Bandpass filter - 425nm to 475nm  Range: 0 to 200 uW/cm²/nm  Minimal Graduation: 1 uW/cm²/nm  Accuracy: ± 10%  Measuring Time: Approx 4-5 sec  Press to ON Switch  Battery: 9V Alkaline Phototherapy Eye PATCH has been designed to assure complete comfort, and eye protection for infants during Phototherapy Treatment  Adjustable Band for proper comfort and secure fit  Easy to use design  Large eye protection pad increases light protection  Single Piece wrap around design can be independently adjusted to prevent unwanted movement.  Available in 3 sizes - Preterm, Term and Neonatal Phototherapy Eye Patch

Click Here To Download Catalogue

This multi function obstetric table is designed and manufactured to meet the need of the medical enterprise. It is used for childbirth, gynecology surgical operation, examining and many other functions, including cesarean operation. The planks, basins and all outer shells are made of stainless steel, which makes nice appearance and easy cleaning and sterilizing.

Technical Specifications:

• Table top dimension: length 1900mm, width 610mm
• Min.& Max. table height: 660mm~910mm
• Trendelenburg & reverse trendelenburg: reverse trend ≥ 10°, trend ≥15°
• Back section turning: -10°~75°
• Assist platform dimension: length 550mm, width 550mm
• Arm rest swing out: ≥ 90°
• Filth basin dimension:468×338×125mm(can be equipped with soft pipe)
• Power: AC 220V 50HZ

• Waterproof cushion - 1 set
• Waist grab handle - 1 pair
• Leg holder - 1 pair
• Filth basin - 1 piece
• Arm rest - 1 pair
• Foot switch - 1 piece
• Clamp - 1 pair
