FA-6500 Automatic Computerized Refractor

Brands: zbxyoptics

~~$0.00~~

Shipped From Abroad

The FA-6500 Automatic Computerized Refractor provides fast and accurate refraction measurements for precise vision correction. With advanced optics, ergonomic design, and user-friendly operation, it enhances efficiency in eye clinics. Its compact design, high-resolution display, and reliable automation make it ideal for professional ophthalmic and optometry practices.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: zbxyoptics

Description
Reviews (0)

Description

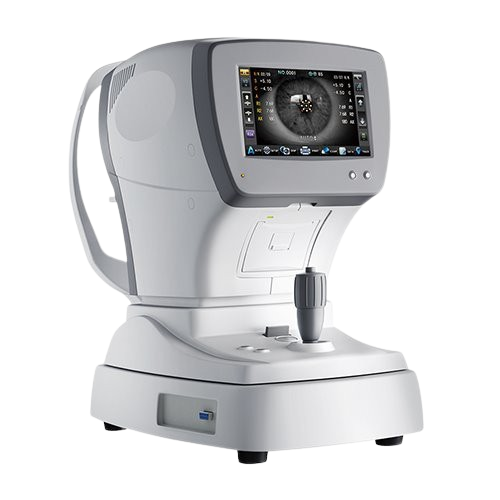

The FA-6500 Automatic Computerized Refractor is a next-generation ophthalmic diagnostic device engineered to deliver rapid, precise, and reliable refraction measurements. Designed for modern eye care practices, it simplifies the examination process by automating refraction testing with advanced optical technology. The device provides accurate readings for myopia, hyperopia, astigmatism, and other refractive errors, ensuring superior accuracy for eyeglass and contact lens prescriptions. Its ergonomic design enhances patient comfort, while the intuitive interface allows practitioners to operate the system efficiently with minimal training. The FA-6500 is equipped with a high-resolution LCD screen, easy data transfer options, and built-in memory for seamless workflow integration. With automatic measurement, smooth data recording, and connectivity to external systems, it improves both productivity and patient satisfaction. Compact, reliable, and user-friendly, the FA-6500 is an essential tool for ophthalmologists, optometrists, and optical clinics seeking consistent and accurate vision assessments.

Features

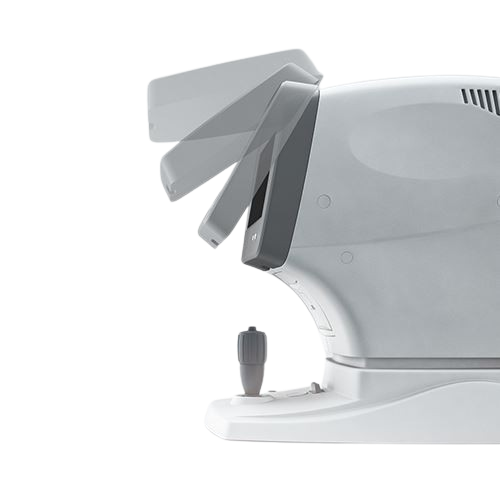

● 7″ tilting LCD screenTilting screen function that allows a wide range of access.

● Auto focus function

Just move, it will automatically focus the eye and get the value.

● Motorized joystick

A motorized joystick with auto vertical tracking mode is adopted, so the operation is easier.

Specifications

Refractometer
Vertex distance	0mm, 12mm, 13.75mm
Spherical	-20~+20m^-1 (VD=12) 0.12/0.25m^-1Step
Cylinder	-8~+8m^-1 0.12/0.25m^-1 Step
Axis	0~180° 1°Step
Cylinder form	-, + , ±
Pupil distance	45~88mm, 1mm Step
Min. pupil size	2.0mm
Keratometry
Radius of curvature	5.0~10mm(increment:1mm)
Corneal power	33.75~67.50m^-1 (when corner equivalent refractive index is 1.337)
Corneal power	(increment selectable from 0.12, 0.25m^-1)
Corneal astigmatism	0.0~8.00m^-1 (increment selectable from 0.12,0.25m^-1 )
Axis	1~180°(increment:1°)
Corneal diameter	2.0~14.0mm(increment: 0.1mm)
Others
Chart	Follow-up on the colorful fogging chart system
Memory of data	10 measure value for each right and left eye
Display	7″LCD/TFT
Print	Thermal printer
Power supply	220V±10% 50Hz 60VA
Dimension	478mm×268mm×472mm,
Weight	~15.5kg

Reviews

There are no reviews yet.

Be the first to review “FA-6500 Automatic Computerized Refractor”

Quick Comparison

FA-6500 Automatic Computerized Refractor remove Portable Keratometer remove Pantoscopic Ophthalmoscope remove ENT/Neurosurgery Operating Microscope remove SW-1000 Ophthalmic Ultrasound Scanner-A-Scan remove Operation Microscope remove

Name FA-6500 Automatic Computerized Refractor remove Portable Keratometer remove Pantoscopic Ophthalmoscope remove ENT/Neurosurgery Operating Microscope remove SW-1000 Ophthalmic Ultrasound Scanner-A-Scan remove Operation Microscope remove


SKU SF1033560107-16 SF1033560107-3 SF1033560109-1 SF1033560107-27 SF1033560107-24

Rating

Price

~~$0.00~~

$1,815.00

$2,695.00

Stock

Availability

Add to cart

Description

Shipped From Abroad The FA-6500 Automatic Computerized Refractor provides fast and accurate refraction measurements for precise vision correction. With advanced optics, ergonomic design, and user-friendly operation, it enhances efficiency in eye clinics. Its compact design, high-resolution display, and reliable automation make it ideal for professional ophthalmic and optometry practices.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad Ultra-small corneal curvature tester, is mainly used to measure the corneal curvature radius and diopter, wireless output print data.

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad The brand-new Pantoscopic Ophthalmoscope is a portable digital imaging device which makes it possible to view and take pictures of the eyes.

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad

Delivery & Availability: Typically 14-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Corder Microscope has Fluid, Responsive and Accurate.

Shipped from abroad

Large color liquid-crystal screen
Touch screen input, easy operation
Curve freezing: Manual/Auto mode, controlled by pedal
Built-in speed thermal printer
Enter the name & ID; easy to check archive

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad YZ20P5 Operation Microscope is a simple binocular coaxial microscope for a single man. The Operation Microscope is small, light, and convenient. It has high agility and can meet the requirements for general ophthalmology operation. The microscope fits mobile medical treatment.

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Features

● 7" tilting LCD screenTilting screen function that allows a wide range of access. ● Auto focus function Just move, it will automatically focus the eye and get the value. ● Motorized joystick A motorized joystick with auto vertical tracking mode is adopted, so the operation is easier.

Specifications

Refractometer
Vertex distance	0mm, 12mm, 13.75mm
Spherical	-20~+20m^-1 (VD=12) 0.12/0.25m^-1Step
Cylinder	-8~+8m^-1 0.12/0.25m^-1 Step
Axis	0~180° 1°Step
Cylinder form	-, + , ±
Pupil distance	45~88mm, 1mm Step
Min. pupil size	2.0mm
Keratometry
Radius of curvature	5.0~10mm(increment:1mm)
Corneal power	33.75~67.50m^-1 (when corner equivalent refractive index is 1.337)
Corneal power	(increment selectable from 0.12, 0.25m^-1)
Corneal astigmatism	0.0~8.00m^-1 (increment selectable from 0.12,0.25m^-1 )
Axis	1~180°(increment:1°)
Corneal diameter	2.0~14.0mm(increment: 0.1mm)
Others
Chart	Follow-up on the colorful fogging chart system
Memory of data	10 measure value for each right and left eye
Display	7″LCD/TFT
Print	Thermal printer
Power supply	220V±10% 50Hz 60VA
Dimension	478mm×268mm×472mm,
Weight	~15.5kg

Portable Keratometer Features: Ultra-small corneal curvature tester, is mainly used to measure the corneal curvature radius and diopter, wireless output print data. Technical Specifications:

Model	SW-100
Measuring Range	6.5mm~9.5mm: ±0.05mm: 0.01mm
Precision	± 0.05mm
Resolution of Curvature Radius of Cornea	0.01mm
Single Measuring Time	0.03s
Output	Wireless Infrared Thermal Printer
Can observe the eye directly through the screen.
Weight	0.5Kg(with batteries)
Dimension	240mmx90mmx60mm
Power	500mW+15%

The brand-new Pantoscopic Ophthalmoscope is a portable digital imaging device which makes it possible to view and take pictures of the eyes. The optical access of the Pantoscopic Ophthalmoscope is aligned to the visual axis of the smartphone camera by the adaptor which allows to you take pictures of the fundus and retinal nerve in high resolution. You could save pictures for each patient or email and print as needed. The Pantoscopic Ophthalmoscope provides a 5X larger view of the fundus compared with the standard ophthalmoscope. It has a wider view field of 230. Without dilating the pupil, the fundus imagines could be captured at any time and places. Features:

Rapid capture of fundus images on your cellphone.
Get eyeground documentation in an easy and low-cost way.
Send images to your peers across the continum of care instantly.
Easy carry to capture images at any clinical circumstance and work efficiently.
Make patient education easier.
5X larger view of the fundus vs. standard ophthalmoscopes in an undilated eye.
Halogen lamp provides bright, white light.
Apertures and Filters: Looking at the pupil through an add-on corneal viewing lens, the practitioner can detect lens opacities easily.

Features:

Corder Microscope has Fluid, Responsive and Accurate.

Fluid. Responsive. Accurate. These were a few of the principles guiding every phase in the design of the Corder Microscope. With the choicest mechanical machined components, the Corder Microscope has the grace and agility to adjust to every desired position on command. Well designed Apochromatic optics treated with Corder's Mcoatings produce true-to life sharp images with high depth, definition and contrast. More comfortable operation Tiltable binocular tubes available, which can incline more than 60° depending on the posture and physique of the operating surgeon. Movable range: 30° (straight) to 90° (inclined) Corder microscope configured with XYZ motorized movement operated through a comfortable foot /Handle control, a veryeffective co-axial illumnation and 50W halogen light source makes it ideal for Neuro surgeries.

Doctor-patient communication is easier

To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are made available with the ProLine in addition to Corder's proprietary iVu multi-functional imaging solution. 1080P full hd image quality, efficient image management during the operation. Integrate your digital workflow to facilitate case management and facilitate more intuitive patient communication. Technical Permeants: Magnification: motorized zoom system, 1:6 zoom ratio, magnification 3x~16x Focusing range: 50mm Binocular tube: 30°~90° tiltable tube ，(0° ~200° optional) Eyepiece: 12.5x / 10x Objective lens: F 300mm(175mm, 250mm, 350mm optional) pupil distance: 55mm~75mm diopter adjustment: +6D ~ -6D Field of view: Φ74~Φ12mm X-Y translator: Motorized by foot switch or handle controller, ±30mm Assistant tube: 360° Rotating assistant tube Reset functions: YES Illumination System: Coaxial illumination Light source: Halogen lamp Light intensity adjustment: Continuous brightness adjustment 0-100000lux Fiber optic illumination: Dual fiber Field of illumination: Φ50mm Filter: Red free filter, small spot Accessories CCD Camera system: Beam splitter, CCD adapter, CCD, Display XENON LAMP: 150000lux Integrated Video Adapter: SONY / CANON Camera

Click Here To Download Catalogue

Feature:

Large color liquid-crystal screen
Touch screen input, easy operation
Curve freezing: Manual/Auto mode, controlled by a pedal
Built-in speed thermal printer
Enter the name & ID; easy to check the archive

Technical Specifications:

Model	SW-1000 Ophthalmic A Scan Biometer
A Scan
A scan probe	10MHz import small size probe, built-in luminotron
Measuring range	15mm-40mm
Measurement precision	±0. 05mm; with macula lutea trace function
Measurement	Anterior chamber depth, lens thickness, vitreous body length, total length and average
Method of measurement	immersion and contact
Eye mode	Phakic/ Aphakic/Dense/ various IOL
IOL formula	SRK-II, SRK-T, BINKHORST- Ⅱ, HOLLADAY, HOFFER-Q, HAIGIS
Storage	10 cases, 5 readings each case
Output	A scan waveform and IOL calculation sheet

Operation Microscope(YZ20P5) is a simple binocular coaxial microscope for a single man. The Microscope is small, light, and convenient. It has high agility and can meet the requirements for general ophthalmology operation. The microscope fits mobile medical treatment. Features of Operation Microscope:

Multi-layer coating technology is used on optical lenses to enhance the transmission rate and prevent mildew.
Foot-controlled focus, three-step magnification change, good depth of field of view, and good binocular fusion to meet the need of cataract surgery.
Using apochromatic technology to make different wavelengths of the light focus near the focal point behind the lens, so as to make the operator's vision more clearly.
The machine weighs only 41Kg to be light and compact and is especially applicable for mobile medical.
Optional desktop components to make the machine more portable and can also be customized according to special requirements to meet the needs in ophthalmology, ENT and other surgery.
Optional F250/F300/F400 lens.

Technical Specifications of Operation Microscope:

Eyepiece Magnification	12.5×
Focal Length of Objective Lens	F=200
Working Distance	190 mm
Magnification for Main Microscope	5.3×, 8×, 16×
Diameter of Field	37 mm, 25 mm, 16.7 mm
Diopter Adjustment	±5D
Pupillary Distance	50 mm ～ 70 mm
Maximum Resolution	100 LP/mm
Light Source	12V/100W halogen lamp for medical use
Illumination Type	6° coaxial illumination of the cold light source
Coaxial Illuminance	≥30,000 Lx
Reaching Radius of Arm	870 mm
Adjustable Vertical Range	700 mm~1100 mm
Fine Focusing Range	30 mm
Input Voltage	AC 220V/110V±10%, 50Hz/60Hz
Power Consumption	120 VA
Fuse	AC 250V T4.0A, AC 125V T8.0A
Electrical Safety Standard	IEC 60601-1, Class I
Packing Volume	0.2 m3，1 carton
Total Weight	41 kg
