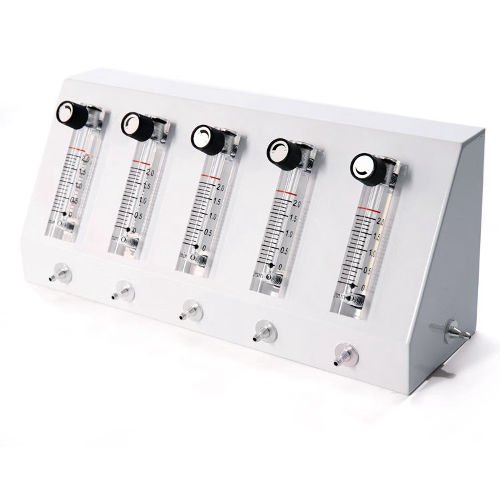

Flow Splitter JAY-500

Brands: Longfian

~~$0.00~~

Shipped From Abroad

A device distributes medical oxygen from a source to multiple independent outlets to provide oxygen for the adults or children. It can be connected to the oxygen concentrator with the outlet pressure as shown in the followina table. Place it on table or wall mounting horizontally.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130188-17

Brands:: Longfian

Description
Reviews (0)

Description

Features

1. Flow Splitter is a device through which oxygen in one inlet can be divided into several flows for more patients to inhale at the same time the same time.
2. The 5 flow meters in this flow splitter can work independently or together by adjusting flow knob.
3. Minimum oxygen flow for a single oxygen outlet can be 0.125L/min.

Key Specifications

Model	JAY-500
Dimension	38.111.416.6cm
Weight	2.5kgs
Operating Temperature	5ºC to 40ºC
Storage Temperature	-1ºC to 60ºC
Accuracy	±5%
Inlet Pressure	7Psi/20Psi/60Psi
Outlets	2/3/4/5 or customization
Flowmeters	2L/5L or customization
