GANSHORN PowerCube Body+
$0.00
Shipped From Abroad
The PowerCube Body+ is an advanced body-plethysmograph designed for full pulmonary function testing. It provides precise lung-volume and airway-resistance measurements using ultrasound sensor technology, featuring ergonomic cabin options for adults, children, and wheelchair users in hospital or research environments.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description

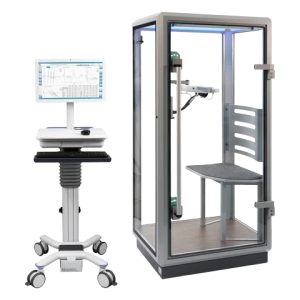

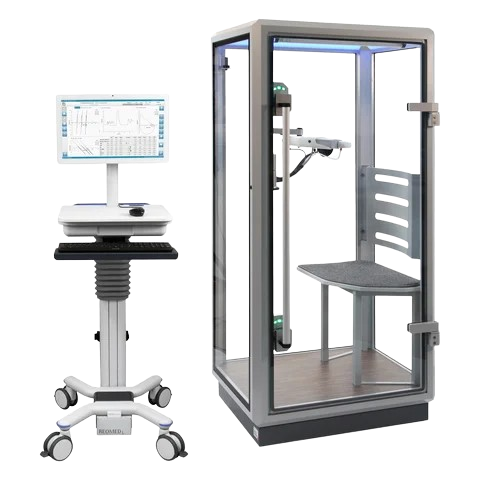

The PowerCube Body+ is a high-end pulmonary diagnostic system that measures total lung capacity, residual volume, and airway resistance with exceptional accuracy. Using SharpFlow ultrasonic sensor technology, it requires no calibration and ensures long-term stability. The system includes an ergonomic, transparent cabin, LED indicators, a patient communication system, and a height-adjustable 3D swivel arm. It is compliant with ATS/ERS standards and suitable for advanced pulmonary function testing, research laboratories, respiratory clinics, and hospitals requiring comprehensive lung assessment capabilities.
Body plethysmography is a very sensitive lung measurement used to detect complex or mixed lung pathologies that might otherwise be missed with conventional pulmonary function tests.
The long-term stability in conjunction with our new analysis algorithms enables you to initially differentiate between asthma, COPD, airway restriction, or any combination of these disorders just by looking at the shape of the curves.
Features
- 3D swivel arm can be easily adjusted
- Choice of either a broad bench seat (max. 250 kg) or a height-adjustable swivel chair (max. 120 kg)
- Automatic and simultaneous calibration of both cabin and mouth pressure at three different frequencies
- BodyLiveCal
- Ambilight
- LEDs indicating whether the door is locked or not
- Patient speaker and microphone for maximum cooperation
- Multiple options: easy integration of diffusion and/or provocation
Technical Specifications
| Parameter | Specification |
|---|---|
| Flow Measurement Principle | Ultrasound transit-time (SharpFlow) |
| Flow Range | 0 – 20 L/s |
| Volume Accuracy | ± 2 % or ± 50 mL (whichever greater) |
| Cabin Pressure Range | ± 30 kPa |
| Max Patient Seat Load | ~ 250 kg |
| Wheelchair Cabin Dimensions | Approx. 130 × 185 × 95 cm |
| Power Supply | 100 – 240 V AC, 50/60 Hz, 120 VA |
| Measurement Modes | Lung Volumes, Airway Resistance, Diffusion (optional) |
| Software Platform | LFX (Windows-based, SQL database, HL7/DICOM ready) |
| Compliance | ATS/ERS guidelines for body plethysmography |
