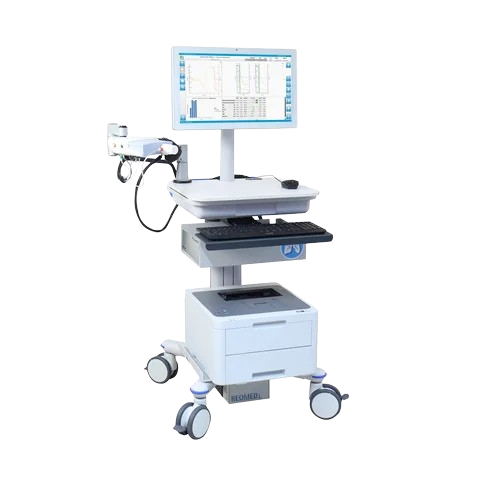

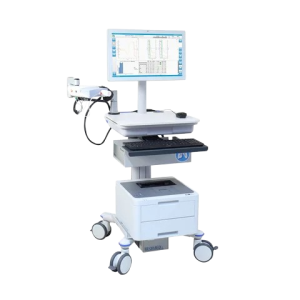

GANSHORN PowerCube Diffusion+
$0.00
Shipped From Abroad
The PowerCube Diffusion+ is an advanced lung-diffusion measurement system combining ultrasound flow-sensors with multigas analyzers to measure diffusion capacity (TLCO) and helium FRC in accordance with ERS/ATS standards.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
This system is engineered for comprehensive pulmonary diagnostics focused on gas-exchange and alveolar-capillary membrane assessment. It uses high-speed ultrasound technology for flow measurement and integrated real-time CO and He gas analysers to enable single-breath diffusion and online methodologies. The system features a demand valve for efficient gas usage, continuous display of exhalation CO/He concentrations to distinguish dead-space vs alveolar plateau, and assistance diagrams to optimise patient breathing manoeuvres. It’s designed for use in respiratory labs, lung-function and post-COVID rehabilitation clinics, cardiopulmonary diagnostics units, and research environments.
Accurate and reliable analysers enable a high-resolution display of the wash-in curves of CO and helium.
Any existing diffusion and distribution disorders become immediately visible. Our system’s demand valve regulates the gas intake, providing economical benefits.
Features
- No volume calibration needed
- Determination of diffusion capacity (TLCO) and helium-FRC SB in accordance with ERS/ATS standard
- Continuous display of the exhalation concentrations of CO and helium for the precise differentiation of dead space and alveolar plateau
- Economical measurement of gas consumption
- Optimisation of the breathing manoeuvres aided by informative assistance diagrams
- Fast multigas CO analyser
- Real-time molar mass helium analyser
- Detect diffusion and distribution disorders at a glance
- Assistance diagrams optimise breathing manoeuvres
- 3D swivel arm: flexible, height-adjustable interface
- Real-time breath: for patients who are unable to hold their breath for a prolonged period
- Measurement can be carried out without breath being held
- Intelligent Demand Valve (IDV) secures patient, lowers the cost per test, and optimizes gas usage
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Modes | Single-breath diffusion (DLCO/TLCO), helium-FRC SB |
| Sensor Technology | Ultrasound flow-sensor (SharpFlow) for flow; He real-time analyser; CO multi-gas analyser |
| Flow Measurement Range | 0 – ~20 L/s (ultrasound transit-time) |
| Volume Accuracy | ± 2 % (or ±50 mL whichever greater) |
| Helium Analyser Range | 0 – ~20 vol.% He |
| CO Analyser | Non-dispersive infrared / gas analyser for CO concentration (range ~0-3000 ppm) |
| Ambient Conditions – Operation | ~ +15 °C to +35 °C; pressure: 700–1050 hPa; humidity: 30–80% non-condensing |
| Standards | ERS/ATS guidelines for diffusion; Flow/volume per ATS/ERS |
| Power Supply | Typical ~30 VA; 24 V (per data sheet) |
| Device Weight / Mobility | Varies depending on trolley or cabin configuration |
