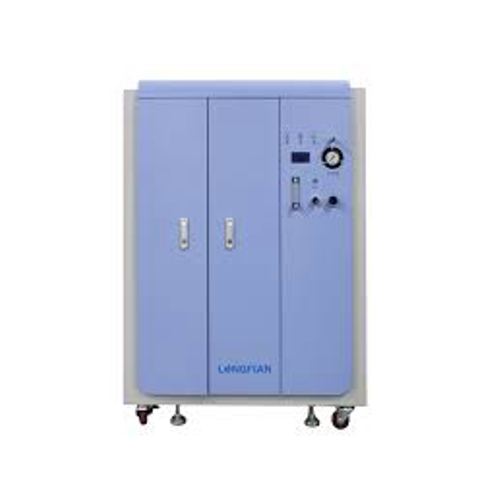

High Pressure Oxygen Concentrator

Features

• High pressure oxygen concentrator for small hospitals
• Manufactured by Longfian Scitech Co., Ltd.
• Thomas compressor for reliable performance
• High efficiency three-tower adsorption system for durability
• Pressure gauge on site for flexible adjustment
• Small and compact design for easy movement during emergencies
• Automatic dehydrator/refrigerated air dryer included
• Available models: JAY-10-4.0, JAY-15-4.0, JAY-20-4.0
• Flow rate options: 1-10L/min, 1-15L/min, 1-20L/min
• Oxygen purity of 93% (+3%)
• Outlet pressure range: 20-60 PSI (0.14-0.4Mpa)
• Low sound level of ≤ 50dB
• Net weight: 90kg (JAY-10-4.0), 118kg (JAY-15-4.0)
• Power consumption: ≤ 1250W (JAY-10-4.0), ≤ 2000W (JAY-15-4.0, JAY-20-4.0)
• Input frequency options: 50Hz; 60 Hz
• Input voltage options: AC 230V±10%, AC 110V ±10%

Features

• ✔ Precise DLco Measurement: Accurately assesses lung diffusion capacity for CO (carbon monoxide) to evaluate gas exchange efficiency.
• Advanced Sensor Technology: High-precision sensors ensure reliable and reproducible pulmonary function test results.
• User-Friendly Interface: Intuitive software for easy operation, data analysis, and report generation.
• Compact & Portable Design: Lightweight and ergonomically designed for clinical and research applications.
• Automated Calibration: Ensures consistent accuracy and minimal operator intervention.
• Multi-Parameter Analysis: Measures DLco, lung volumes, and additional respiratory parameters for comprehensive lung function assessment.
• Compliance with Global Standards: Meets ATS/ERS guidelines for pulmonary function testing.
• Patient-Friendly Testing: Fast and comfortable procedures, suitable for all age groups.
• Rapid digital NDIR gas analyzer
• Fast and reliable evaluation of the diffusion capacity
• Unique blocking valve design, Intelligent Demand Valve
• Easy and quick gas administration, no more complicated breathing line design
• ATS/ERS recommended standard test gas mixture
• 0.3% Carbon Monoxide (CO) + 0.3%CH4 +21% Oxygen (O2) , remainder Nitrogen(N2)

Main Functions

• Complete Spirometry (Slow VC, FVC, Flow-Volume Loop, Tidal FVL, MVV)
• Bronchial dilation test pre/post dilator)
• Bronchial provocation test (without hardware)

The Longfian JAY-10FW is a high-capacity, dual-flow oxygen concentrator designed to meet the needs of patients requiring substantial oxygen support. With a flow rate adjustable from 0.5 to 10 L/min and oxygen concentration maintained at 93% ± 3%, it ensures effective therapy for conditions like pulmonary fibrosis and severe COPD. The dual-flow configuration allows two users to inhale oxygen simultaneously, enhancing its utility in clinical settings. Equipped with advanced cooling technology, the JAY-10FW ensures reliable 24/7 operation. Its user-friendly LCD display, safety alarms, and mobility features enhance usability and patient safety.​

Key Features:

• Flow Rate: 0.5–10 L/min

• Oxygen Concentration: 93% ± 3%

• Dual-Flow Capability: Supports two users simultaneously

• Continuous Operation: Advanced cooling system for 24/7 use

• User-Friendly Interface: LCD display with simple controls

• Mobility: Four castors with two brakes for easy movement

• Safety Alarms: Power failure, high/low pressure, and low oxygen concentration alerts

The JAY-3AW and JAY-5AW are robust oxygen concentrators designed for continuous use. With flow rates of 3L/min and 5L/min, they deliver oxygen at a concentration of 93% (±3%). Their innovative cooling systems ensure reliable 24/7 operation, making them suitable for both home and clinical environments.​

Key features include:

• User-Friendly Interface: Simple controls with an easy-to-read LCD display.

• Mobility: Four flexible castors with two brakes for easy movement and secure positioning.

• Safety Features: Humidifier bottle with a 6PSI pressure relief valve, and alarms for power failure, high/low pressure, and low oxygen concentration.​

These models are compatible with High-Flow Nasal Cannula (HFNC), Hyperbaric Oxygen Chambers (HBOC), and BIPAP systems, enhancing their versatility in oxygen therapy applications. ​

Designed for uninterrupted oxygen therapy, the Longfian JAY-5DW combines efficiency with user comfort. Its compact dimensions (355×245×595 mm) and lightweight build (14 kg) make it easy to position in any environment. Operating at a noise level of ≤40 dB, it ensures minimal disturbance.​

Key features include:

• Flow Rate: Adjustable from 0.5 to 5 L/min.

• Oxygen Concentration: Maintains 93% (±3%) purity.

• Power Consumption: Efficient at ≤350W.

• Safety Alarms: Includes alerts for power failure, high/low pressure, and low oxygen concentration.​

Ideal for patients with respiratory conditions requiring consistent oxygen therapy.
