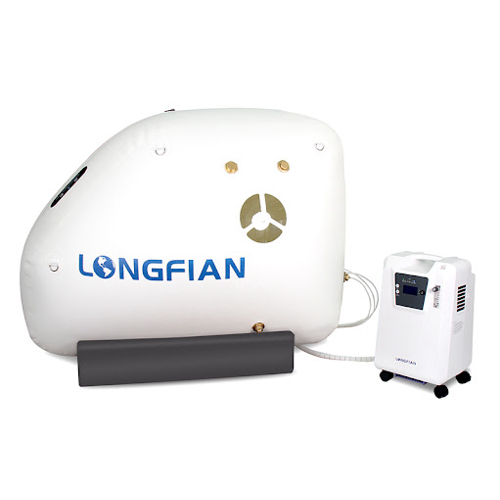

Hyperbaric Oxygen Therapy

Features

• 1.3ATA(4psi)operating pressure .
• 2 zipper seal for easier entrance .
• Cotton chamber protection cover , to avoid dirty and easy to wash .
• Most popular model for home treatment or commercial usage .Emergency valve - To speed the depressurization in emergency .
• Easy Operation - One people can operate it without assistance .
• Internal Pressure Gauge - User can observe the pressure while inside the chamber .
• Internal metal frame - Hold the shape when deflated

The JAY-20-4.0 high-pressure oxygen concentrator is engineered for medical environments that demand higher oxygen flow rates. Delivering 1 to 20 L/min at an outlet pressure of 20–60 PSI (0.14–0.4 MPa), this unit ensures a steady and pure oxygen supply with a concentration of 93% (±3%). Its durable construction and advanced features support continuous operation in demanding settings such as intensive care units and operating rooms.

Key Features

• Flow Rate: 1–20 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20–60 PSI (0.14–0.4 MPa)
• Power Consumption: ≤2200W
• Sound Level: ≤60 dB
• Net Weight: 118 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm: Blue light (>82%), Red light (<82%)
• Mobility: Equipped with wheels for easy transportation
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Suitable for hospitals with up to 100 beds
  • Compatible with hyperbaric oxygen chambers

The Longfian JAY-1000 is a lightweight and compact portable oxygen concentrator designed for individuals requiring supplemental oxygen therapy on the go. Weighing only 1.5 kg and measuring 193×83×173 mm, it offers enhanced mobility without compromising performance.​

Equipped with pulse dose delivery, the JAY-1000 provides oxygen flow settings from 1 to 5, ensuring efficient oxygen delivery tailored to the user's needs. It delivers medical-grade oxygen at a concentration of 93% ± 3%, supporting optimal respiratory function.​medzell.net

The device features an easy-to-remove external battery with a duration of up to 3 hours, allowing users to maintain their active lifestyles without interruption. Its user-friendly interface and comfortable shoulder bag enhance usability and portability.​

Key Features:

• Pulse Dose Delivery: Five flow settings (1–5) for personalized oxygen therapy.
• High Oxygen Concentration: Delivers 93% ± 3% purity.
• Lightweight Design: Only 1.5 kg for enhanced mobility.
• Compact Dimensions: 193×83×173 mm for easy transport.
• Battery Life: Up to 3 hours of operation.
• User-Friendly Interface: Simple controls for ease of use.
• Portability: Includes a strong, comfortable shoulder bag.

The JAY-40-4.0 is a high-pressure oxygen concentrator designed for large medical institutions and specialized applications. It provides an adjustable flow rate of 1 to 40 L/min with a consistent outlet pressure of 60 PSI (0.4 MPa). The unit maintains an oxygen concentration of 93% (±3%) and features a high-efficiency three-tower adsorption system for enhanced durability. Its robust design ensures reliable performance in intensive care units, operating rooms, and hyperbaric oxygen therapy chambers.

Key Features

• Flow Rate: 1–40 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 60 PSI (0.4 MPa)
• Power Consumption: ≤4440W
• Net Weight: 256 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen purity alarm
• Design: Compact and mobile with integrated pressure gauge and automatic dehydrator/refrigerated air dryer
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Compatible with hyperbaric oxygen chambers

The JAY-3AW and JAY-5AW are robust oxygen concentrators designed for continuous use. With flow rates of 3L/min and 5L/min, they deliver oxygen at a concentration of 93% (±3%). Their innovative cooling systems ensure reliable 24/7 operation, making them suitable for both home and clinical environments.​

Key features include:

• User-Friendly Interface: Simple controls with an easy-to-read LCD display.

• Mobility: Four flexible castors with two brakes for easy movement and secure positioning.

• Safety Features: Humidifier bottle with a 6PSI pressure relief valve, and alarms for power failure, high/low pressure, and low oxygen concentration.​

These models are compatible with High-Flow Nasal Cannula (HFNC), Hyperbaric Oxygen Chambers (HBOC), and BIPAP systems, enhancing their versatility in oxygen therapy applications. ​
