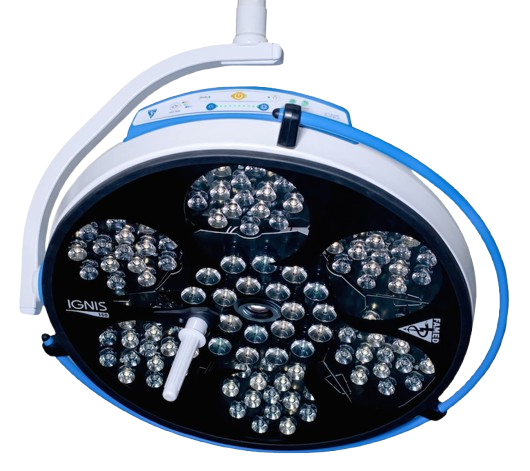

IGNIS 160 Surgical Light

Features

• Illumination intensity of 160,000 lux at 1 m

• Adjustable light intensity from 25 % to 100 %

• Colour rendering index (CRI) of 96 for true colour reproduction

• Selectable colour temperatures: 4000 K / 4400 K / 4800 K

• Dual control panels on the dome for easy access from multiple angles

• Separate sterile handle for focusing the light spot; large non-sterile surrounding handle for ease of position change

• Independent green-light mode for endoscopic visualization

• Operating field diameter d10: 240 mm; light spot diameter d50: 120 mm

• Depth of illumination (L1+L2) up to ~140 cm at 20% intensity and ~85 cm at 60% intensity

• Temperature rise near surgeon’s head: < 1 °C

• Power consumption: 55 W; supply voltage: 24 V DC; enclosure protection: IP 54

• Lightweight structure with powder-coated aluminium casing and safety glass bottom for easy cleaning and durability

The camera and surrounding diodes - the lamp can be equipped with an HD camera, which can be operated using two control panels placed on the dome. The central light panel guarantees excellent penetration of light whenever it is required. Additionally, it provides a homogeneous spot of light in the operating field, irrespective of the distance of the dome. The copula is covered with safety glass, ensuring easy disinfection and preserving unchanged light and camera parameters.

The lamp is equipped with the independent function of an endoscope light, located on the upper part of the dome. As a result of the research and consultation with the doctors, we used a green color light, which ensures the best representation of the red color, so important during endoscope procedures.

The control panel – the possibility to control light and camera parameters, using only one control panel. The dome has two identical control panels, which makes it simple to steer the lamp parameters independently of the location of the dome.

The DL-62C LED surgical light offers an illumination intensity of 160,000 LUX for the main lighthead and 120,000 LUX for the satellite lighthead, with an adjustable color temperature of 3500 K - 5000 K and lifetime of 50,000 hours. It also features a 4.3-inch LCD touchscreen for controlling all functions, along with a camera and arm-mounted medical monitor for monitoring and recording operations.

• High LED technology fulfilling lighting requirements of any kind of operation.
• Maximum lighting level by single button.
• LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

• Head design with low aerodynamic resistant protecting laminar flow of surgical space.

• Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
• Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
• Adjustable color temperature between 3500-5000 °K.
• LCD colour touchscreen control panel controlling all functions.

• Camera and medical monitor practically integrable with the lamp head for training purposes. It enables monitoring and recording operations.
• Manual focus function can be adjusted from the handle or the control panel.

• 4.3” LCD touchscreen and membrane control panel with led indicators are avaliable for all lamp heads.
• Model names with “A” refer to Analog membrane control panel and with “D” refer to Digital touchscreen control panel.

• Diameter of lighthead: Ø650 mm
• Illumination power, in 1 m: 160.000 Lux
• Color temperature: 3500 K – 5000 K
• Color rendering index, Ra CRI: 96%
• Dimming Range: % 1 – 100
• Adjustable focus diameter: 120 – 300 mm

Click Here To Download Catalogue

JSF-JC01 Examination Lamp

Product Features

Technical parameters:

• Model: JSF-JC01
• Power supply: 220V
• Bulb: Halogen
• Bulb power: 12V/35W
• Illumination(50cm):30 000Lux
• Height adjust: √
• Color temperature:4000K
• lifetime: 4000h
