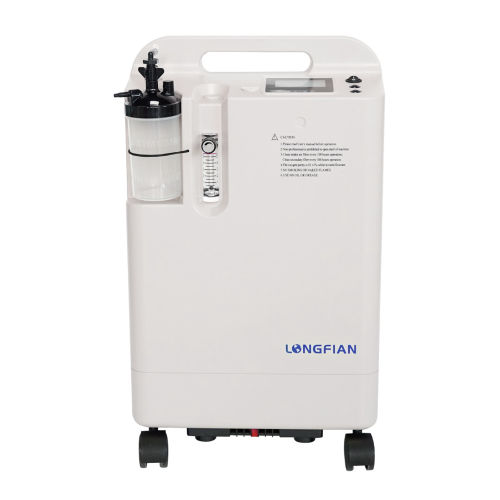

JAY-5BW Stationary Oxygen Concentrator (5L)

Key Features:

• Flow Rate: 0.5–5 L/min
• Oxygen Concentration: 93% ± 3%
• Dual-Flow Capability: Supports two users simultaneously
• Continuous Operation: Innovative cooling system for 24/7 use
• User-Friendly Interface: LCD display with simple controls
• Mobility: Four castors with two brakes for easy movement
• Safety Alarms: Power failure, high/low pressure, and low oxygen concentration alerts​

Features

• ✔ Precise DLco Measurement: Accurately assesses lung diffusion capacity for CO (carbon monoxide) to evaluate gas exchange efficiency.
• Advanced Sensor Technology: High-precision sensors ensure reliable and reproducible pulmonary function test results.
• User-Friendly Interface: Intuitive software for easy operation, data analysis, and report generation.
• Compact & Portable Design: Lightweight and ergonomically designed for clinical and research applications.
• Automated Calibration: Ensures consistent accuracy and minimal operator intervention.
• Multi-Parameter Analysis: Measures DLco, lung volumes, and additional respiratory parameters for comprehensive lung function assessment.
• Compliance with Global Standards: Meets ATS/ERS guidelines for pulmonary function testing.
• Patient-Friendly Testing: Fast and comfortable procedures, suitable for all age groups.
• Rapid digital NDIR gas analyzer
• Fast and reliable evaluation of the diffusion capacity
• Unique blocking valve design, Intelligent Demand Valve
• Easy and quick gas administration, no more complicated breathing line design
• ATS/ERS recommended standard test gas mixture
• 0.3% Carbon Monoxide (CO) + 0.3%CH4 +21% Oxygen (O2) , remainder Nitrogen(N2)

Main Functions

• Complete Spirometry (Slow VC, FVC, Flow-Volume Loop, Tidal FVL, MVV)
• Bronchial dilation test pre/post dilator)
• Bronchial provocation test (without hardware)

Features

• High pressure oxygen concentrator for small hospitals
• Manufactured by Longfian Scitech Co., Ltd.
• Thomas compressor for reliable performance
• High efficiency three-tower adsorption system for durability
• Pressure gauge on site for flexible adjustment
• Small and compact design for easy movement during emergencies
• Automatic dehydrator/refrigerated air dryer included
• Available models: JAY-10-4.0, JAY-15-4.0, JAY-20-4.0
• Flow rate options: 1-10L/min, 1-15L/min, 1-20L/min
• Oxygen purity of 93% (+3%)
• Outlet pressure range: 20-60 PSI (0.14-0.4Mpa)
• Low sound level of ≤ 50dB
• Net weight: 90kg (JAY-10-4.0), 118kg (JAY-15-4.0)
• Power consumption: ≤ 1250W (JAY-10-4.0), ≤ 2000W (JAY-15-4.0, JAY-20-4.0)
• Input frequency options: 50Hz; 60 Hz
• Input voltage options: AC 230V±10%, AC 110V ±10%

The Longfian Continuous Flow Portable Oxygen Concentrator is engineered for patients requiring a steady and uninterrupted oxygen supply. With a flow rate ranging from 1 to 7 L/min and an oxygen concentration of 93% ± 3%, it ensures consistent and effective oxygen therapy.​

Weighing 6 kg and measuring 220×280×310 mm, this device is suitable for both home and travel use. It features a robust design with an outlet pressure of 6–10 PSI, accommodating various respiratory needs. The concentrator operates on AC power and offers optional DC power supplies for in-car use, enhancing its versatility.

Key Features:

• Continuous Flow Delivery: Adjustable flow rate from 1 to 7 L/min.
• High Oxygen Concentration: Delivers 93% ± 3% purity.
• Robust Design: 6 kg weight and 220×280×310 mm dimensions for stability.
• Outlet Pressure: 6–10 PSI to meet various therapeutic needs.
• Versatile Power Options: Compatible with AC and optional DC power supplies.
• Safety Features: Equipped with alarms and safety mechanisms for patient well-being.

The JAY-20-4.0 high-pressure oxygen concentrator is engineered for medical environments that demand higher oxygen flow rates. Delivering 1 to 20 L/min at an outlet pressure of 20–60 PSI (0.14–0.4 MPa), this unit ensures a steady and pure oxygen supply with a concentration of 93% (±3%). Its durable construction and advanced features support continuous operation in demanding settings such as intensive care units and operating rooms.

Key Features

• Flow Rate: 1–20 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20–60 PSI (0.14–0.4 MPa)
• Power Consumption: ≤2200W
• Sound Level: ≤60 dB
• Net Weight: 118 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm: Blue light (>82%), Red light (<82%)
• Mobility: Equipped with wheels for easy transportation
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Suitable for hospitals with up to 100 beds
  • Compatible with hyperbaric oxygen chambers
