medilogFD-12-lead Holter ECG

Brands: SCHILLER

~~$0.00~~

Shipped From Abroad

The medilog FD is a high-performance 12-lead Holter ECG recorder offering real-time P-wave analysis, high sampling rate, optional SpO₂ monitoring, motion-artifact suppression, and extended recording capability for comprehensive ambulatory cardiac diagnostics.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: SCHILLER

Description
Reviews (0)

Description

This recorder delivers advanced ECG monitoring beyond standard systems. Equipped with a 12-lead configuration and a superior resting-ECG‐grade sampling rate (128 000 Hz), it enables detailed analysis of atrial fibrillation onset, ventricular ectopics, and spatial myocardial ischaemia in daily life. Live preview of channels, optional Bluetooth SpO₂ sensor, dual-battery capability (including standard AAA for rapid turnaround), and rugged carrying case make it ideal for cardiology clinics, electrophysiology centres, and ambulatory monitoring programmes. Its holistic design supports high-resolution heart-rate variability (HRV) and respiratory-derived parameters.

medilogFD is the Holter ECG recorder with the holistic approach. Instantaneous detection of atrial fibrillation onset, analysis of respiratory episodes, and high-resolution HRV are just some of the exceptional features.

The 12-lead Holter ECG is preferred for detailed and spatial heart analysis. Regional assessment of myocardial ischemia: distinguish anterior, septal, lateral, and inferior regions in the dynamic setting of everyday life. medilogFD identifies the origin of ectopic beats, whether they are from the left or right ventricle. This SCHILLER Holter is superior in identifying abnormal heartbeats that start in the right or left atrium.

Features

12-lead Holter ECG allows assessing the full spectrum of cardiac ECG conditions
Instantaneous atrial fibrillation/atrial flutter detection based on true P-wave analysis, thanks to a superior resting ECG-grade 128,000Hz sampling rate on 12 leads

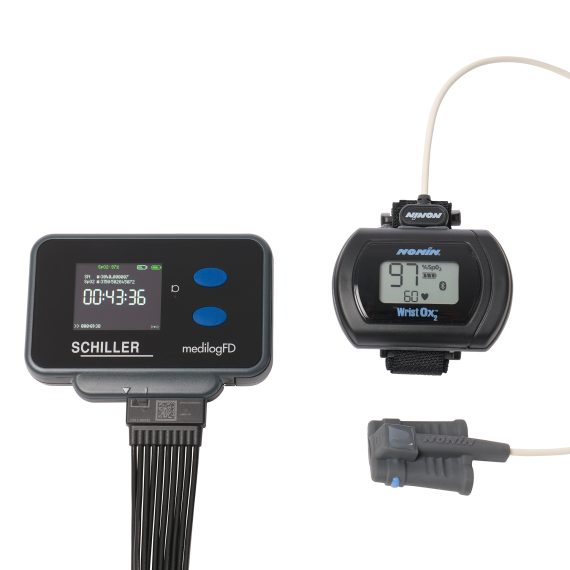

Optional SpO₂ sensor for additional respiratory information
Multifactor signal check based on impedance, amplitude, and amount of noise
High-contrast colour display for easy operation. Live ECG preview: 3 channels shown at a time, all 12 can be scrolled through
Microphone to record patient ID. In an anonymous start, a voice recording is a must to prevent patient mix-up.
Easy-to-clean carrying case
Eco-friendly: runs on an internal rechargeable battery, or, if needed, on normal AAA batteries for fast turnaround times
medilogFD completes your medilog line-up with medilogAR (3-lead Holter ECG, up to 14 days runtime) and medilog DARWIN2 (high-end ECG analysis software)

Technical Specifications

Parameter	Specification (typical)
Leads	12-lead ECG Holter
Sampling Rate	128 000 Hz
Respiration Monitoring	ECG-derived plus optional SpO₂
Battery Options	Internal rechargeable + standard AAA batteries
Connection	USB and/or Bluetooth (Bluetooth used for SpO₂ sensor)
Display	Colour screen with live channel preview
Use Case	Ambulatory ECG monitoring, arrhythmia detection

Download Catalogue

SCHILLER’S MEDILOG HOLTER SYSTEM

Reviews

There are no reviews yet.

Be the first to review “medilogFD-12-lead Holter ECG”

Quick Comparison

medilogFD-12-lead Holter ECG remove ASPEL Ambulatory BP Machine remove ASPEL Stress ECG with Ergometer and Software remove Bistos BT- 740 Patient Monitor remove Bistos BT-770-12.1" Touchscreen Patient Monitor remove MIR Spirolab Spirometer remove

Name medilogFD-12-lead Holter ECG remove ASPEL Ambulatory BP Machine remove ASPEL Stress ECG with Ergometer and Software remove Bistos BT- 740 Patient Monitor remove Bistos BT-770-12.1" Touchscreen Patient Monitor remove MIR Spirolab Spirometer remove


SKU SF1033560075-13 SF1033560075-1 SF1033560059-9 SF1033560059-1 SF1033560084-13

Rating

Price

~~$0.00~~

$920.00

$4,202.00

$715.00

$902.00

$2,101.00

Stock

Availability

Add to cart

Description

Shipped From Abroad The medilog FD is a high-performance 12-lead Holter ECG recorder offering real-time P-wave analysis, high sampling rate, optional SpO₂ monitoring, motion-artifact suppression, and extended recording capability for comprehensive ambulatory cardiac diagnostics.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad ASPEL Ambulatory BP Machine - is a recorder of long-term records of non-invasive measurement of blood pressure intended for use in clinics, hospitals, outpatient centers and specialist surgeries. The recorder enables the assessment of blood pressure by the oscillometric method in adult patients, pregnant women, including preeclampsia and pediatric patients (from 3 years of age). Blood pressure is assessed by using an inflatable cuff, an accurate pressure transducer, and a deflation valve. Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Ergometer CRG 200 is dedicated for Exercise Stress Tests System CardioTEST. The Ergometer has been designed according to modern technologies. It is controlled from PC equipped in CardioTEST software. Load level is controlled by a microprocessor, therefore it does not depend on speed, which in turn can be adjusted according to patient’s individual needs. Ergometer is equipped with ECG mode recording 12 standard leads. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The Bistos BT-770 patient monitor is equipped with a 12.1" touchscreen display, which allows for an easy operation and readability with a powerful rechargeable battery guaranteeing a continuous operation of 5 hours to monitor ECG, SpO2, NIBP, temperature and respiration Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock

Spirometry test:

FVC, VC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters. Pediatric Incentive for Spirometry. Each function can be easily activated by a simple touch on the bar menu Stand Alone Mode Delivery & Availability: Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

https://youtu.be/XHfFpwMMMBc This recorder delivers advanced ECG monitoring beyond standard systems. Equipped with a 12-lead configuration and a superior resting-ECG‐grade sampling rate (128 000 Hz), it enables detailed analysis of atrial fibrillation onset, ventricular ectopics, and spatial myocardial ischaemia in daily life. Live preview of channels, optional Bluetooth SpO₂ sensor, dual-battery capability (including standard AAA for rapid turnaround), and rugged carrying case make it ideal for cardiology clinics, electrophysiology centres, and ambulatory monitoring programmes. Its holistic design supports high-resolution heart-rate variability (HRV) and respiratory-derived parameters.

Features

12-lead Holter ECG allows assessing the full spectrum of cardiac ECG conditions
Instantaneous atrial fibrillation/atrial flutter detection based on true P-wave analysis, thanks to a superior resting ECG-grade 128,000Hz sampling rate on 12 leads
Optional SpO₂ sensor for additional respiratory information
Multifactor signal check based on impedance, amplitude, and amount of noise
High-contrast colour display for easy operation. Live ECG preview: 3 channels shown at a time, all 12 can be scrolled through
Microphone to record patient ID. In an anonymous start, a voice recording is a must to prevent patient mix-up.
Easy-to-clean carrying case
Eco-friendly: runs on an internal rechargeable battery, or, if needed, on normal AAA batteries for fast turnaround times
medilogFD completes your medilog line-up with medilogAR (3-lead Holter ECG, up to 14 days runtime) and medilog DARWIN2 (high-end ECG analysis software)

Technical Specifications

Parameter	Specification (typical)
Leads	12-lead ECG Holter
Sampling Rate	128 000 Hz
Respiration Monitoring	ECG-derived plus optional SpO₂
Battery Options	Internal rechargeable + standard AAA batteries
Connection	USB and/or Bluetooth (Bluetooth used for SpO₂ sensor)
Display	Colour screen with live channel preview
Use Case	Ambulatory ECG monitoring, arrhythmia detection

Download Catalogue SCHILLER'S MEDILOG HOLTER SYSTEM

ASPEL Ambulatory BP Machine - is a recorder of long-term records of non-invasive measurement of blood pressure intended for use in clinics, hospitals, outpatient centers and specialist surgeries. The recorder enables the assessment of blood pressure by the oscillometric method in adult patients, pregnant women, including preeclampsia and pediatric patients (from 3 years of age). Blood pressure is assessed by using an inflatable cuff, an accurate pressure transducer, and a deflation valve. Features: Save-2-Safe: Double security system Thanks to the use of two independent measuring systems with an additional valve, it meets the highest standards and takes care of patient safety even better. Start-Easy: Quick start in two moves The quick launch function allows you to use the device instantly, easily allows you to start recording in holter mode. Memo-Care: Cuff pressure memory Recorder remembers the pressure in the cuff. Thanks to the use of Intelligent Solutions, it adapts individually to the patient. Power-Usb: USB connection The device can work without batteries: by connecting to a computer via a USB cable. Technical Specification:

Measuring range - adult: 0-300 mmHg, pediatric: 0-150 mmHg
Pressure sensor - yes
Battery - up to 168 hours (exam every 30 minutes)
Memory - 1000 examination
Measurement periods - 6
Activity / sleep definition - yes
Operating mode - adult / pediatric
Stationary work - USB powered only and manual control
Measurement recording schedule - yes (division into activity and sleep)
Quick start of the recorder - yes
Use - easy, programming without a computer
Cooperation - ASPEL 508 ABPM or HolCARD CR-07 software
Internal real time clock - yes
Keyboard - yes, with event button
Screen - OLED
Work without batteries - yes, via USB cable
Cuff pressure - numerical or graphic value
Exam results - systolic, diasolic, mean and HR pressure
Display of measurement errors - yes, in the form of warnings and codes
Menu - extended, information data, quick start, exam results, factory reset, configuration
Pressure gauge test function - yes
Leak test function - yes
Energy saving - yes
Power - 4x battery AA, USB port: 5VDC
Weight 0,190kg

Accessories:

Adult cuff, medium
Pressure cable
Cuff and pressure cable connector
Recorder bag with belt
LR6 (AA) alkaline batteries - 4 pcs.
Instruction manual

Click Here To Download Catalogue

Ergometer CRG 200 is dedicated for Exercise Stress Tests System CardioTEST. The Ergometer has been designed according to modern technologies. It is controlled from PC equipped in CardioTEST software. Load level is controlled by a microprocessor, therefore it does not depend on speed, which in turn can be adjusted according to patient’s individual needs. Ergometer is equipped with ECG mode recording 12 standard leads. Technical Specifications:

Cooperation with the CardioTEST cardiovascular exercise system and AsTER cardiac rehabilitation system,
Control using a computer through the RS-232 port,
Braking: a processor-controlled brake with torque measurement,
Load range: 25 - 1000 W,
Speed range: 20 - 150 rpm,
Load independent of the number of turns,
Built-in ECG module,
12 standard leads in diagnostic mode,
2 leads in training mode,
Sensitivity 2,5 / 5/10/20 mm / mV,
Shift 25/50/100 mm / s,
Digital filters 25 Hz, 35 Hz, 50 Hz, anti-frit filter,
Digital filter of the isoelectric line,
Measuring range HR 15-240 bpm,
Maximum patient weight 200 kg,
Power supply: 230 V, 50 Hz, 60VA,
Dimensions: (LxWxH) 1190x600x1370 mm.

CardioTEST Software:

excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
uninterrupted recording and presentation of 12-lead ECG signal,
presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
automatic HR measurement, ST level and ST segment slope,
automatic control of cycloergometer and treadmill load,
archiving and printing of the research report,
automatic determination of measuring points with the possibility of manual correction,
automatic arrhythmia analysis,
presentation of parameters regarding: test phase, current load, stage time and total effort time,
monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
real-time ECG printout,
preview of trends of all measured parameters during the test,
alarm system for monitored parameters and arrhythmia,
an option to automatically measure blood pressure,
archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
standard test protocols and the ability to define your own protocols also in RAMP mode,
preview the report on the screen before printing the report,
function of reanalysis of the performed test,
presentation of 3D trends illustrating ST segment changes.

Click Here To Download Catalogue

Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Features:

8.4" TFT Color Screen - (Optional Touch Screen Upgrade)
Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
Ultra-low power consumption
Quiet operation
High accuracy SpO2 reading
Data transfer or firmware upgrade via USB
2 Years Manufacturer's Warranty

Technical Specifications:

Model		BT-740
Display		8.4" Color TFT Screen
ECG	Lead type	3/5 Lead
	Gain Selection	x0.25, x0.5, x1, x2, x4, auto
	Sweep speed (mm/s)	12.5, 25, 50
	Bandwith:(Diagnostic Mode)	0.05-130Hz
	Monitoring Mode	0.5-40Hz
	Surgery Mode	1-25Hz
	Strong Mode	5-20Hz
	Heart Rate Range (bpm)	Adult:15-300
	Heart Rate Range (bpm)	Pediatric/neonate: 15-350
Respiration	Method	Trance-thoracic Impedance
	Measurement Range	0-120rpm
	Sweep Speed (mm/s)	6.25, 12.5, 25
SpO2	Measurement Range	0-100%
	Accuracy (70-100%)	Adult/Pediatric	+/-2%
	Accuracy (70-100%)	Neonate	+/-3%
	Accuracy (0-69%)	Unspecified
	Perfusion Index	0.05-20%
Pulse Rate	Range (bpm)	25-250bpm
NIBP**	Method	Automatic (Oscillometric)
	Operation Mode	Manual/Auto/STAT
	Parameter	Systolic, Diastolic, Mean
	Systolic Range (mmHg)	Adult	40-270
		Pediatric	40-200
		Neonate	40-130
	Diastolic Range (mmHg)	Adult	10-210
		Pediatric	10-160
		Neonate	10-90
	Mean Range (mmHg)	Adult	20-230
		Pediatric	20-175
		Neonate	20-100
Temperature	Range	0-50°C
Temperature	Parameter	T1, T2 and TD
IBP"	Channel	2 Channel, 4 Channel
IBP"	Range (mmHg)	-50-400
Printer*	Type	Thermal dot array
	Print Speed (mm/s)	12.5, 25, 50
	Paper Size (mm)	50
CO2*	Sidestream	Masimo ISA / Bistos
CO2*	Mainstream	Masimo IRMA / Bistos
Multi-gas O2*		Masimo ISA
SpO2 Masimo*		Masimo SpO2
CO*	Method	Thermodilution
CO*	Range	0.2-20 L/min
Battery	Type (Capacity)	Li-ion (440mAh)
	Run Time	6 hour
	Charging Time	4 hour
Interface		RJ45, USB, Nursing Call
Warranty		2 Years

Click Here To Download Catalogue

Bistos BT-770 is a 12.1" touchscreen patient monitor designed for easy operations. SPECIFICATIONS

12.1“ color TFT touch screen
ECG, Resp., SpO2, NIBP, Temp., CO2, IBP, Multi-gas, C.O., Masimo SpO2
Precise ECG measurement with pacemaker detection ST segment and 16 types of arrhythmia analysis Double overpressure protection for NIBP Intelligent cuff inflation pressure adjustment
Smart Hook/Stand design, provide multiple placement modes Plug & Play Modular IBP& C.O., Modular Printer Multiple configuration options: 4-channel IBP, CO2, invasive C.O., Multi-gas Over 5 hours continuous working on battery 12-15V wide range DC input, suitable for ambulance Capable to connect with central monitoring system HL7 export to clinical information systems (option)

Click Here To Download Catalogue

Spirometry test:

FVC, VC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters. Paediatric Incentive for Spirometry. Each function can be easily activated by a simple touch on the bar menu Stand Alone Mode. Colour screen Touchscreen 7 inches TFT display Database up to 10,000 Spirometry tests or 900 hours of Oximetry recording coupled with powerful and flexible search services. Optional function available: Oximeter with adult or paediatric finger probe. Long life Rechargeable Battery. Available with both DISPOSABLE or REUSABLE turbine flowmeter. PC based mode, using WinspiroPRO® Bluetooth® 2.1 and USB Connectivity Wireless or via cable Real Time test directly on your PC. Winspiro PRO® PC software provides Real Time Flow/Volume and Volume/Time curves with PRE/POST Bronchodilator comparison on your PC. Includes free online updates. Paediatric Incentive for Spirometry with wide choice of pictures and animations. Spirometry test after drug adminitration Bronchodilator Reversibility, Bronchial Challenge with FEV1-response curve with protocols for both Methacholine and Mannitol. Quanjer 2012-GLI Predicted values with LLN and Z-score Patient Trend Charts for easy follow-up Search engine for instant access to database. Wide choice of communication protocols for integration with EMR.

Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, FEF75–85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/ FEV6, FEV1/PEF, FEV1/ FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).
