New
/

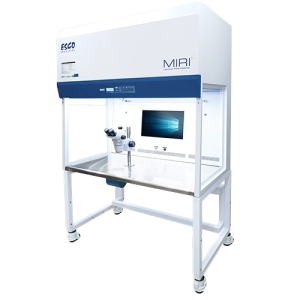

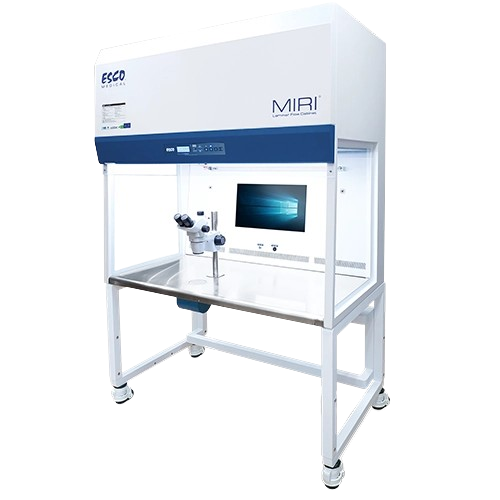

MIRI Laminar Flow Cabinet

$0.00

Shipped From Abroad

The MIRI Laminar Flow cabinet is a specialized piece of equipment that allows for a controlled, laminar airflow. It is designed with a vertical airflow configuration and is equipped with electronically commuted motor (ECM) technology that can provide excellent energy efficiency. The cabinet is available in different sizes, ranging from 3 to 6 feet, depending on your needs.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Esco Medical

Description

Laminar Flow Technology

A laminar flow cabinet is designed to prevent contamination of the sample being worked on. The cabinet’s airflow configuration draws air through a main filter, typically a HEPA or ULPA filter. The filtered air is then blown towards the user in a laminar flow pattern, protecting the sample. The main filtration system can trap microair particulates and/or microbes from the ambient air, providing only clean and sterile air to the working zone. The laminar flow cabinet is also designed with stainless steel material, which has no gaps or joints that can accumulate microbes and promote their growth.

Why Vertical Laminar Flow Cabinet?

Vertical laminar flow cabinets are widely used in In Vitro Fertilization (IVF) laboratories and the field of Assisted Reproductive Technology (ART). The MIRI® laminar flow cabinet ensures a constant and reliable flow of HEPA/ULPA filtered air into the working zone, which flows unidirectionally downwards. This configuration ensures that sample handling can be protected throughout the process. The perforation system at the back wall of the MIRI® Laminar Flow Cabinet is designed to eliminate air turbulence and the possibility of dead air zones at the corners of the working surface.

Applications

A laminar flow cabinet is designed to protect only the sample, not the personnel handling it. This means that laminar flow cabinets are unsuitable for handling pathogenic or harmful samples, as they could pose a risk of infection to the personnel. Therefore, the MIRI® Laminar Flow can be effectively used to handle samples in the ART field.

Features

ISO Class 3 Cleanliness

The cabinet’s main HEPA/ULPA filter ensures air is filtered with 99.9995% efficiency, providing clean airflow into the work zone to protect the samples.



Less Noise, Less Vibration, and Energy Efficient

Esco Medical’s MIRI® Laminar Flow cabinet has a high-efficiency ECM blower that produces less noise and vibration, creating a more suitable working environment.

Microscope Provision and Integrated Light Source (optional)

The MIRI® Laminar Flow cabinet can include a microscope mounting pole, allowing microscopic observations to be conducted inside the cabinet. Additionally, the optional LED light source for the microscope enhances the user’s everyday working experience.

ISOCIDE™ Anti-Microbial Coating

Esco Medical products are coated with a silver-ion-impregnated ISOCIDE™ powder, which inhibits and eliminates microbiological growth and improves sample protection.

Touchscreen Monitor Integration (Optional)

The user can integrate a touchscreen monitor into the cabinet, providing a larger platform to view the observed specimen. Additionally, the touchscreen monitor will make installing the electronic witnessing system easier for future use.
Specifications
Feature Specification
Airflow Type Vertical laminar airflow
Air Cleanliness ISO Class 3
Filtration System ULPA filter, H14-rated, ≥ 99.995% efficiency @ 0.3 µm
Blower Type Energy-efficient ECM (Electronically Commutated Motor)
Work Surface Stainless steel with spill-retaining design
Side Panels Tempered glass for visibility and light control
Surface Coating Isocide™ anti-microbial powder coating (optional)
Lighting Energy-efficient LED illumination
Decontamination UV sterilization lamp with programmable timer
Microscope Integration Optional built-in inverted microscope with LCD and camera support
Noise Level Low-noise, low-vibration design (fanless blower configuration)
Power Supply 100–240V AC, 50/60Hz (region-specific)
Accessories Support stand (fixed or with castors), gas ports, monitor arms, IV poles
Application IVF labs – embryo handling, ICSI, micromanipulation
Typical Sizes Available in 3 ft, 4 ft, and 6 ft widths
