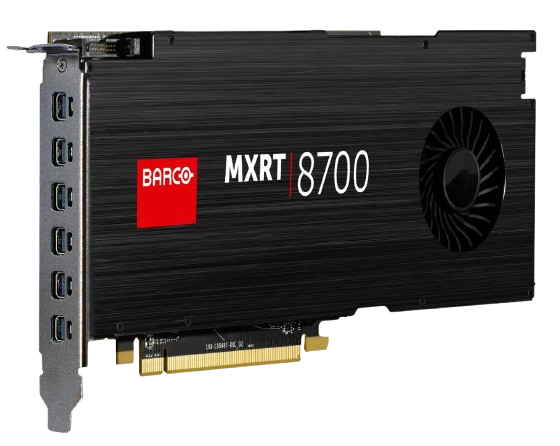

MXRT‑8700 Medical Display Controller

Delivering uncompromised features, performance, and reliability, the Barco MXRT-8700 graphics card is designed to handle the most demanding diagnostic workflows and complex image data sets. Available exclusively from Barco, the platform packages 16GB of graphics memory while driving six DisplayPort 1.4 in a single PCI slot, making it is the ideal solution for facilities using advanced multi-display production-level reading stations. Accelerate your workflow application responsiveness and data transfer with 2304 stream processors, 224 GB/s memory bandwidth, and PCIe 3.0 support. Key features include industry-leading 6 display ports to cover a wide array of display configurations, 16GB DDR5 memory for larger PACS data loading, EDID emulation for multi-workstation configurations, and 30-bit color depth support.

Features

• 16 GB GDDR5 display memory

• 256-bit memory interface

• 224 GB/s memory bandwidth

• PCIe Gen3 x16 bus interface

• Six mini DisplayPort 1.4 outputs

• Support for 10-bit grayscale and 30-bit color (32-bit pixels)

• Single-slot PCIe form factor

• Power consumption up to 130 W

• EDID emulation for multi-workstation configurations

• Built for demanding PACS, advanced clinical, and multi-display imaging systems

Technical Specifications

• Display Memory: 16 GB GDDR5

• Memory Interface: 256-bit

• Memory Bandwidth: 224 GB/s

• Pixel Depth / Color Support: 10-bit grayscale, 30-bit color (32-bit pixels)

• Bus Interface: PCIe Gen3 x16

• Outputs / Connectors: 6 × Mini DisplayPort 1.4

• Power Consumption: 130 W

• Operating System Support: Windows 7 (64-bit), Windows 10 (64-bit)

• Power Connector: One 6-pin (2×3) auxiliary power connector

• Form Factor / Dimensions: Single-wide PCIe card, approx. 241 mm × 112 mm

• Operating Temperature Range: 0 °C to 55 °C

• Graphics Accelerator: AMD Radeon Pro engine

• Direct3D / API Support: DirectX 12, Vulkan 1.1, Shader Model 5.1

• OpenGL Support: OpenGL 4.5

• Compliance & Certifications: Medical and electronics safety standards; RoHS, CE, FCC, etc.

• Additional Features: EDID emulation, locking adapters included
