Nio Color 2MP (MDNC‑2123 Option DE) Dental

$0.00

Shipped From Abroad

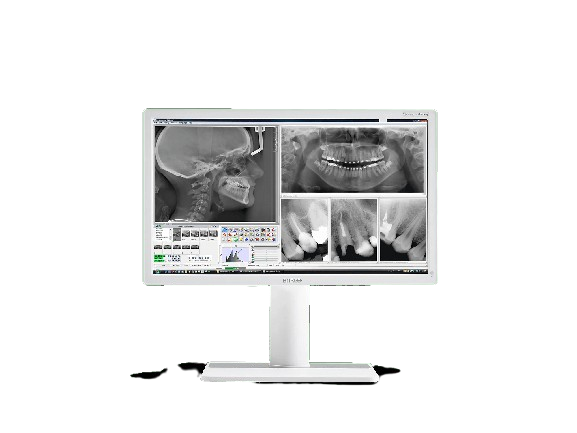

The Barco Nio Color 2MP (MDNC-2123) is a 23.6-inch dental/diagnostic display delivering bright, accurate color and grayscale imaging. With DICOM calibration, a built-in luminance sensor, and medical compliance, it offers dependable image fidelity in dental offices or reading rooms.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Barco-Health

Description

Barco’s Nio Color 2MP has everything it takes for your dental practice. It brings sharp and bright images to your desktop in a stylish but cleanable design.

Reliable diagnosis in your dental office

The Nio Color 2MP has been built for use in your reading or treatment room (room classes 5 and 6 as defined by DIN 6868-157). Its high brightness and contrast make subtle details more visible. So you can make diagnoses that are based on reliable images.

Automated quality control

Nio Color 2MP is always up to standard because of Barco’s luminance sensor technology and QAWeb Enterprise software. By constantly measuring and monitoring display brightness, we can ensure that your dental images will look consistent and accurate over time and across displays.

Compliant with medical safety standards

Nio Color 2MP is available with a protective cover (optional) for easy cleaning while complying with the medical 60601 safety standard. We recommend the version with an optional cover if you want to give your patients a clear picture of their oral health.

Models
  • Nio Color 2MP dental with protective cover
  • Nio Color 2MP without cover
An ecolabel for Nio Color 2MP Dental

The Nio Color 2MP Dental has been subjected to Barco’s ecoscoring protocol and has received an A rating. Some key factors that contributed to this rating are:

  • High energy efficiency when in active use, energy-efficient power supply
  • Possibility to switch to standby mode when the device is not in use
  • Halogen-free cables and plastic parts >25g
  • Product weight reduction compared to the previous model
  • Product design optimized for disassembly
Key Features
  • 23.6″ (598 mm) diagnostic display with 2MP resolution (1920 × 1080)

  • 30-bit color depth (wide color imaging + grayscale)

  • DICOM-calibrated luminance (370 cd/m²) and panel max 460 cd/m²

  • Front luminance sensor (FLOS) for real-time calibration

  • Support for QAWeb Enterprise for remote quality assurance

  • Optional protective glass cover, anti-reflective

  • sRGB color calibration and reading room presets

  • Dual video inputs: 1 × DVI, 1 × DisplayPort

  • USB interface: 1 upstream, 2 downstream ports

  • Medical safety compliance (FDA 510(k), IEC 60601-1, etc.)

  • Energy-efficient design with standby modes

Technical Specifications
Specification Detail
Screen Technology LCD
Active Diagonal 598 mm (23.6″)
Active Area (H × V) 521 × 293 mm
Aspect Ratio 16:9
Resolution 2MP (1920 × 1080)
Pixel Pitch 0.2715 mm
Color / Gray Imaging Yes
Bit Depth 30-bit
Viewing Angle 178° (H, V)
Max Luminance (Panel) 460 cd/m²
DICOM Calibrated Luminance 370 cd/m²
Contrast Ratio 1000:1
Response Time 15 ms (average of Tr + Tf)
Housing Color RAL 9003
Video Inputs 1 × DVI, 1 × DisplayPort
USB Ports 1 upstream (USB 2.0), 2 downstream (USB 2.0)
Power Supply 24 VDC, 4 A
Power Consumption 25 W (nominal); < 0.5 W in standby/hibernate
Dimensions with Stand 560 × 412–512 × 202 mm
Dimensions without Stand 560 × 335 × 61 mm
Packaged Dimensions 700 × 465 × 230 mm
Net Weight (With Stand) Option DE WP: 8.0 kg; Option DE WH: 6.7 kg
Net Weight (Without Stand) Option DE WP: 5.8 kg; Option DE WH: 4.5 kg
Tilt –1° to +24°
Pivot 90°
Height Adjustment 100 mm (landscape)
Mounting Standard VESA 100 mm
Screen Protection Optional protective cover (anti-reflective glass)
Recommended Modalities All digital images, except digital mammography
Certifications & Compliance FDA 510(k) K171812, CE0123, IEC 60601-1, IEC 60601-1-2, etc.
Operating Temperature 0 °C to 40 °C
Storage Temperature –20 °C to 60 °C
Operating Humidity 8% to 80% RH (non-converting)
Storage Humidity 5% to 85% RH
