New
/

Nio Color 3MP Dental (MDNC‑3521 Option DE)

$0.00

Shipped From Abroad

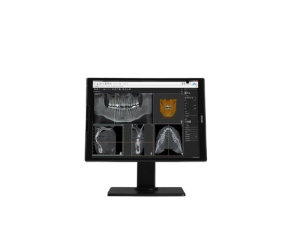

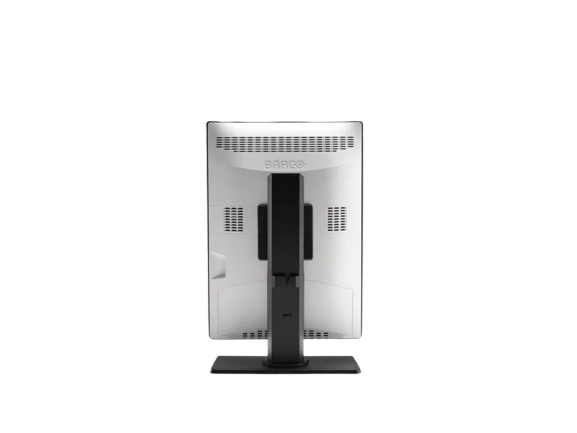

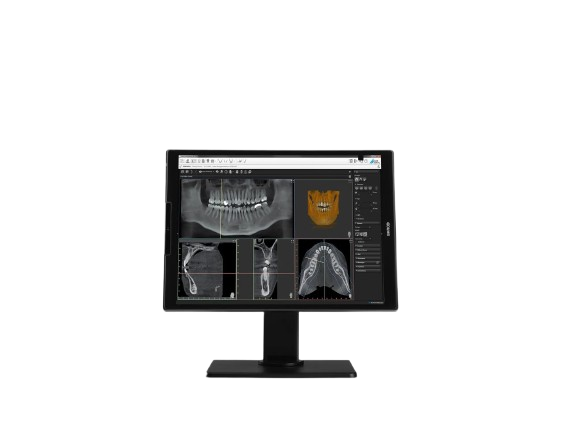

The Barco Nio Color 3MP (MDNC-3521) is a 21.3-inch 3-megapixel diagnostic dental display with dual imaging (color + grayscale), built-in calibration sensors, high luminance, and dental-optimized uniformity for enhanced anatomical visualization.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Barco-Health

Description

The Nio Color 3MP dental display has everything it takes for dental specialists. It brings sharp and bright images to the diagnostic reading room so you can quickly visualize concealed anatomic structures and easily detect dental abnormalities. The Nio Color 3MP is available with and without a cover.

An accurate diagnosis

The Nio Color 3MP dental display has been designed specifically for use in the dental reading room. For endodontic treatment, for example, visualization of small details is essential for a swift and correct diagnosis and an accurate treatment plan. Even when used in different ambient light conditions, the Nio Color 3MP display will provide you with crisp, high-contrast detail, enabling accurate treatment planning.

Planning with confidence

Thanks to the integrated uniformity technologies, subtle abnormalities or concealed anatomical structures in the oral and maxillofacial region can be visualized without imperfections or screen noise. While maintaining a steady brightness over time, you can make informed decisions.

In the case of oral surgery, it means critical structures can be more visible, which is crucial when planning for dental implant placement, for example. Detailed visualization of the bone structure, accurate localization of nerves and arteries all contribute to the success and safety of the procedure.

Models
  • Nio Color 3MP dental with protective cover
  • Nio Color 3MP without cover
Key Features
  • 3MP resolution (2048 × 1536, 4:3 aspect)

  • Supports both color and grayscale imaging

  • 30-bit color depth (True color + gray)

  • Built-in uniformity and stabilization technologies: ULT, SteadyGray, SteadyColor

  • Front luminance sensor (I-Guard) and ambient light sensor

  • RapidFrame refresh technology

  • Multiple ambient light presets (reading-room modes)

  • KVM switch support

  • Dual DisplayPort 1.4 video inputs

  • USB interface: 2 × USB-B upstream, 5 × USB-A downstream (one charge port)

  • Protective anti-reflective front glass

  • Medical compliance: FDA 510(k), CE, CCC, IEC 60601 1, IEC 60601-1-2



Technical Specifications
Specification Detail
Screen Technology IPS-SFT Color LCD
Active Diagonal 541 mm (21.3″)
Active Size (H × V) 433 × 325 mm
Aspect Ratio 4:3
Resolution 3MP (2048 × 1536)
Pixel Pitch 0.2115 mm
Color & Grayscale Support Yes, 30-bit
Viewing Angle 178° (horizontal & vertical)
Max Luminance (Panel) 1050 cd/m²
DICOM Calibrated Luminance 600 cd/m²
Contrast Ratio 2000:1 (typical)
Response Time 12 ms (average of gray-to-gray)
Housing Colors Black (RAL 9004) / White (RAL 9003)
Video Inputs Dual DisplayPort 1.4
Video Outputs None
USB 2 × USB-B (upstream), 5 × USB-A (downstream, one charge port)
KVM Switch Yes
Power Rating 24 VDC, 4 A
Power Requirements AC 100-240 VAC → DC 24 V / 6.6 A
Power Consumption ~45 W nominal; <0.35 W hibernate; <0.30 W off
Dimensions (with stand) Portrait: 351 × 531–631 × 225 mm
Landscape: 491 × 462–562 × 225 mm
Dimensions (without stand) Portrait: 351 × 491 × 64 mm
Landscape: 491 × 351 × 64 mm
Packaged Dimensions 455 × 210 × 770 mm
Net Weight (with stand) 8.8 kg
Net Weight (without stand) 5.8 kg
Mounting VESA 100 mm
Tilt –10° to +30°
Swivel –30° to +30°
Pivot 90°
Height Adjustment 100 mm
Screen Protection Anti-reflective front glass
Recommended Modalities All digital images except digital mammography
Safety & Certification FDA 510(k): K230520, CE, CCC, IEC / IEC 60601 standards
