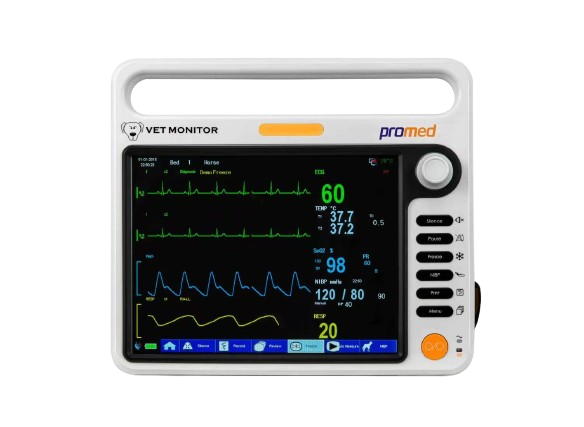

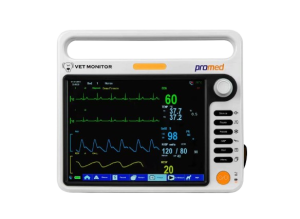

PM-12B VET Patient Monitor

The PM-12B VET Patient Monitor is engineered for veterinary clinics and hospitals requiring accurate, real-time monitoring. It supports optional CO₂ (mainstream or sidestream) and IBP measurements, ensuring comprehensive patient data for various procedures. With advanced over-pressure protection for large and small animals, it provides accurate NIBP readings. The monitor delivers EtCO₂, respiratory rate, invasive pressures, and oxygen parameters with high stability. Certified with CE, FDA, and ISO standards, the PM-12B VET is a dependable choice for professional veterinary monitoring.

Features

• CE, FDA, and ISO 21647 certified for veterinary use

• Over-pressure protection for large and small animal monitoring

• Optional EtCO₂ measurement (mainstream/sidestream)

• Optional IBP with 2 channels (ART, PA, CVP, ICP, etc.)

• High accuracy and stability with low drift

• Wide measurement ranges for CO₂, IBP, and respiratory rate

• Compact and efficient design with RS-232 interface

Technical Specifications

• Over-Pressure Protection: Large animals 300 mmHg ±10 mmHg; small animals 240 mmHg ±10 mmHg

• EtCO₂ (Mainstream): 0–20% / 0–150 mmHg, accuracy ±2 mmHg (<5% CO₂)

• EtCO₂ (Sidestream): 0–150 mmHg, sampling 50 mL/min ±10 mL/min

• Respiratory Rate: 3–150 BPM, accuracy ±1 breath

• IBP (Optional): 2 channels, ART 0–300 mmHg, PA –6 to 120 mmHg, CVP/RAP/LAP/ICP –10 to 40 mmHg, P1/P2 –10 to 300 mmHg

• Transducer Sensitivity: 5 mV/V/mmHg, resistance 300–3000 Ω

• Response Time: 10 ms

• Noise: ≤0.25 mmHg RMS at 5% CO₂

• Interface: TTL/RS-232, 19200 baud

• Power Supply: 5.0 V DC ±5%, ≤1000 mW consumption

• Operating Conditions: 5°C–55°C; Storage –40°C–70°C

The KSY-5 Vet is a versatile veterinary oxygen concentrator designed to assist animal patients with respiratory needs. Combining oxygen generation, aerosol atomization, and air purification in one unit, it supports comprehensive care. Equipped with a large touchscreen, remote control, and voice prompts, it simplifies operation. Its integrated timing oxygen therapy and automatic shutoff ensure safety and precision. Lightweight and portable, it’s ideal for veterinary clinics, mobile units, and home care. Ultrafine aerosol particles (≈ 3.7 µm) deepen lung delivery, enhancing treatment efficacy.

Features

Specifications

Features

• Dual-channel design for simultaneous warming of two fluid lines.

• Flexible LCD display for real-time monitoring and settings.

• Pet-specific infusion warmer, optimized for veterinary care.

• Precise temperature control for safe blood transfusion and IV fluid warming.

• Lightweight, compact, and easy to operate.

• Enhances patient safety by reducing hypothermia during treatment.

• Suitable for veterinary hospitals, clinics, and mobile practice.

Specifications

Features of Kingst Handheld Capnograph and Oximeter CapnoVet3

• Simple pencil type grip for easy use and accurate application
• A broad range of applicators
• Freezing temperature
  • Liquid freezing, -89°C / -128°C
  • Contact freezing, -80°C / -112°C
• The level of cold generated is adjusted by the rate at which the metering lever is depressed
• CE marked according to Medical Device II

Features
