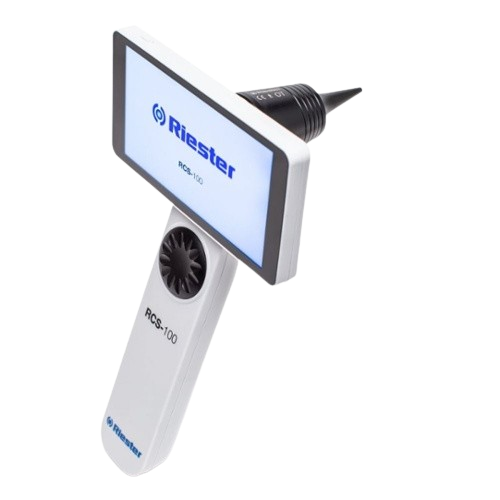

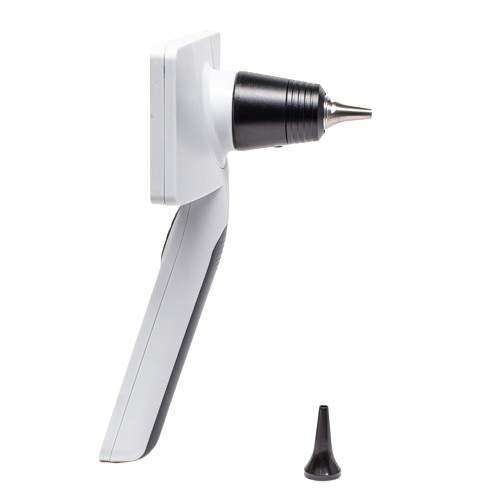

RCS-100 Digital Otoscope

Brands: Riester

~~$0.00~~

Shipped From Abroad

The RCS-100 Medical Camera System with otoscope lens and LED light provides an enhanced view of the auditory canal, as well as 6x magnification displayed on the 5” LCD screen.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

RCS-100 with otoscope lens can substitute the traditional otoscope

RCS-100 with otoscope lens can substitute or replace the traditional otoscope, providing the additional benefit of capturing and sharing the digital photograph or video of the ear canal and tympanic membrane. The otoscope lens can be used with a choice of reusable or disposable specula.

Key Features

6× magnification for detailed ear canal and tympanic membrane imaging
High-resolution 8 MP CMOS sensor
Natural-light LED illumination (4000 K)
Compatibility with reusable and disposable specula (2 mm, 3 mm, 4 mm, 5 mm)
Automatic and manual focus modes
One-hand rotary wheel for focus and light control
5-inch 1280 × 720 touchscreen display
16 GB internal storage for photos and videos
UVC output for live viewing on external monitors
3.5-hour video operation on a rechargeable Li-ion battery
Micro-USB OTG and USB-C connectivity
Multilingual user interface

Specifications

RCS-100 Otoscope Lens

Dimensions	73.5 mm x 40.0 mm x 40.0 mm
Weight	96 g (3.39 oz)
F/# (focal length/width)	2.9
Max object distance	15 mm, at max object distance FOC diameter: 15 mm
Depth of field scope	10 mm
Lighting source	Natural light LED
LED colour temperance	4000 K
Disposable and reusable specula	2 mm (0.08 in), 3 mm (0.12 in), 4 mm (0.16 in), 5mm (0.2 in)

RCS-100

Size	225 mm x 135 mm x 45 mm
Weight	292.0 g
Focus	Automatic / Manual
Image format	JPEG
Video format	MP4
Adapt input	100 – 240 VAC, 50/60 Hz, 0.3 A
Adapt outnput	5 VDC, 2 A
USB	OTG and type-C USB
Extend memory (OPT)	16 GB Wi-Fi SD card
RAM	2 GB LPDDR3
ROM	16 GB
CMOS sensor resolution	Total number of pixels: 3296 (H) x 2512 (V) approx. 8.28 M pixels Number of effective pixels: 3296 (H) x 2480 (V) approx. 8.17 M pixels Number of active pixels: 3280 (H) x 2464 (V) approx. 8.08 M pixels
Battery	3.6 V, 2600 mAh, Li-ion battery (type 18650) Video 3.5 hours (fully charged battery at 25 °C ambient temperature)
