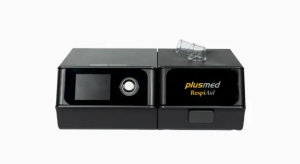

RespiAid BPAP System-30T

Brands: Plusmed

~~$0.00~~

Shipped From Abroad

The RespiAid BPAP-30T is a high-performance bi-level PAP device offering adjustable IPAP/EPAP settings, advanced respiratory support modes, and ultra-quiet operation. Ideal for patients with complex sleep apnea or respiratory insufficiencies, it features a built-in humidifier, SD card data logging, LCD display, and customizable therapy settings for home or clinical use.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Plusmed

Description
Reviews (0)

Description

Key Features

Adjustable IPAP/EPAP Settings: Delivers personalized bi-level pressure support.
Multiple Therapy Modes: Supports spontaneous (S), timed (T), and spontaneous/timed (S/T) modes.
Quiet Operation: Designed to operate at low noise levels for better sleep quality.
Integrated Humidifier: Prevents airway dryness and enhances comfort.
Ramp Function (0–60 mins): Gradual pressure increase for easy adaptation.
SD Card Support: Logs usage data and treatment history for review.
LCD Display: Displays pressure settings, time, and alerts clearly.
Safety Features: Alarms for low/high pressure, leaks, and power failure.
Ergonomic Design: Compact and lightweight for home or portable use.

Specifications

Parameter	Specification
Device Size	140 × 156 × 94 mm (without humidifier) 262 × 156 × 94 mm (with humidifier)
Operating Conditions	Temp: 5℃–35℃ Humidity: 10–93% (non-condensing) Pressure: 760–1060 hPa
Storage/Transport Conditions	Temp: -20℃–+60℃ Humidity: 10–93% (non-condensing) Pressure: 760–1060 hPa
Production Date	Indicated on device label
Operating Life	5 years (extendable with maintenance and part replacement)
Working Mode	Continuous mode, minimum 8 hours continuous operation
Power Supply Requirements	Voltage: 100–240 V AC Frequency: 50/60 Hz Input Power: ≤2 A
Security Type	Class II, Type BF Applied Part
Waterproof Level	IP22 – Drip proof
Pressure Range	4–25 hPa (±0.5 hPa)
Pressure Display Accuracy	±0.5 hPa
Ramp Time	Adjustable from 0–60 minutes
Noise Level	≤30 dB at 10 hPa
User Connector Specification	Ø22 mm cone joint
Filter Specification	Particle size: 10 μm
Maximum Pressure at Patient Connector	Single-level: Normal 20 hPa / Fault ≤30 hPa Bi-level: Normal 25 hPa / Fault ≤40 hPa
Ventilatory Capacity	See table below

Ventilatory Capacity by Pressure

Pressure (hPa)	Average Flow (L/min)
4	80
9	90
15	90
20	70
25	70

Dynamic Pressure Stability (±hPa)	10 BPM	15 BPM	20 BPM
4	±0.5	±0.55	±0.60
9	±0.80	±0.85	±0.85
15	±0.95	±0.95	±0.95
20	±0.95	±0.95	±1.00
25	±1.00	±1.00	±1.00

Humidifier Specifications

Parameter	Specification
Temperature Range	Adjustable from 0 to 5
Gas Temp at User Connection	≤43°C
Water Tank Capacity	≥240 ml

Other Details

Parameter	Specification
Tube Length	1.8 m (±0.18 m), Ø22 mm
Weight	<1 kg (without humidifier) <1.6 kg (with humidifier)
SD Card	≥8 GB, records user treatment
Pressure Adjustable Range	Refer to user manual (Section 3.4)
Operating Mode	Refer to user manual (Section 3.4)

Download Instruction Manual
