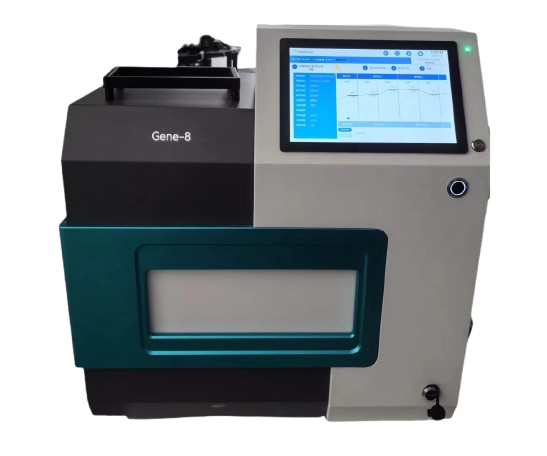

Respiration Infection Gene Test POCT System

A turnkey molecular diagnostic instrument for point‑of‑care settings, designed around an enclosed cartridge system. Users load the sample once and the device autonomously performs nucleic acid extraction via magnetic beads, multiplex real‑time PCR, and result reporting-without contamination or manual intervention. The built‑in touchscreen supports easy operation, data connectivity, and clear graphical outputs. Supports batch testing of eight samples, detecting up to 30 pathogens, including key viruses and bacteria, with rapid cycles and high precision.

Key Features

• 30-pathogen panel: Detects SARS-CoV-2, Influenza A/B, RSV A/B, parainfluenza (1–3), metapneumovirus, bocavirus, adenovirus B/C/E, Mycoplasma pneumoniae, coronavirus OC43/229E, and more

• Fast turnaround: Processes 8 samples per batch; one run completes in ≤ 45 min, full 30-target panel in ~120 min

• High extraction efficiency: Magnetic-bead method yields up to 99% nucleic acid recovery

• Fully enclosed cartridge: Prevents contamination; supports closed, automated sample-to-result workflow

• Integrated platform: Combines nucleic acid extraction, RT‑PCR amplification, and analysis—no need for external lab equipment.

• High-speed thermal control: Heats/cools at up to 12 °C/s; temperature accuracy ±0.1 °C, uniformity ≤0.3 °C.

• Multiplex fluorescence: 4 standard channels (FAM/HEX/ROX/CY5), expandable to 6 for additional flexibility.

• Low noise & power: Runs quietly at 50 dB, draws 300 VA, supports broad voltage (AC 100–240 V)

Instrument Characteristics

• Sample throughput: 8 simultaneously; single-tube detection of up to 30 pathogens halomedicals.com

• Sample compatibility: Swabs, blood, serum, plasma, urine, tissues

• Nucleic acid extraction: Magnetic‑bead, fully enclosed microfluidic channels; 100-400 µL sample volume

• Temperature control: Uniform heating/cooling at 9-12 °C/s, control accuracy ±0.1 °C; duration accuracy ±3%

• Fluorescence detection: 4‑channel (expandable to 6) for multiplex RT‑PCR

• User experience: Touchscreen interface, graphical results, automated report generation, multiple data‑export options.

• Contamination control: Closed cartridge design with microfluidic pollution barrier

• Flexibility: Supports nesting protocols, single or multiplex testing; compatible with third-party reagents

• Automation: Minimal manual steps-just sample load; device handles rest

• Cost efficiency: Positioned at a lower price point compared to comparable international systems

Physical Specifications

• Dimensions: 450 × 260 × 400 mm

• Weight: 25 kg

• Power supply: AC 100–240 V, 50/60 Hz, 3 A, 300 VA

• Noise level: 50 dB during operation

• Pad Size: Unfolded: 30 x 60 mm (other size can be request ).
• Folded: 30x30 mm, 30 x 35mm,can be 2ply or 4ply ( other size, ply can be request ).
• Aluminum Package: 60 x 50 mm , 50 x 50mm approximate ( other size can be request ).
• Packing: 100/200 pcs per inner box, 50/ 100 boxes per carton(packing can be request).

• For cleaning prior to injection or to disinfect the hurted skin for family and medical treatment organization use.
• For preparation and immediate disinfection of skin, wound area orr Instrument and utensil.

• Not for eyes;
• keep out of reach of children;
• For external use only;
• please stop using if you feel allergic or amyctic

• Renal Function - BUN, CREA eGFR
• Liver Function - ALB, TP, ALP, ALT, AST, TBIL, DBIL, GGT, LDH A/G#, GLOB#, IBIL
• Lipid Metabolism - TG, TC, HDL LDL#, VLDL
• Pancreatitis Markers - AMY, LIPA
• Carbohydrate Metabolism and Others - GLU , CPK, UA, LAC
• Inflammatory Markers - CRP
• Electrolyte - Na, K, Cl, Ca, PHOS, Mg, tCO2

• Colormetric System : LEDs 340nm~940nm wavelength

• Test Profiles : Panels
• Measurement Time - Panel: up to 15 tests/ 15 min
• Sample Type & Volume : 200 μl whole blood (PCV<60%), plasma, serum

• User Interface : 5 inch color LCD touch screen
• Internal Memory : Store up to 50,000 analysis results
• Printer : Built in thermal printer or external USB printer (PCL 3GUI)
• USB Socket : USB type A (Host) for external USB Printer, USB flash drive (FAT) or external barcode scanner
• Data transmission to PC : RS232 serial port or RJ45 (LAN)
• Dimensions : 233 (W) X 285 (D) X 300 (H) mm
• Weight : 5.5 kg

• Temperature / Humidity : 10 to 32˚C / 5 to 90 %

Click Here To Download Catalogue

• Rotor capacity: 12 x 1.5/2.0 mL vessels, 2 x PCR strip
• Max. speed: 14,100 x g (14,500 rpm)
• Extremely compact footprint — measures 9”W x 4.”H x 9ó”D!
• Aluminum rotor accommodates twelve 1.5- or 2.0-mL tubes (maximum diameter of 11 mm)
• Rotor can be autoclaved at 121°C for 20 minutes
• Minimal sample heat transfer — maximum of 12°C after 20 minutes at max speed
• Eliminate costly repairs with the low maintenance drive
• Soft-touch lid closure for ergonomic lid locking — and releases automatically at the end of a run

Click Here To Download Catalogue

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.
