New

Ophthamology

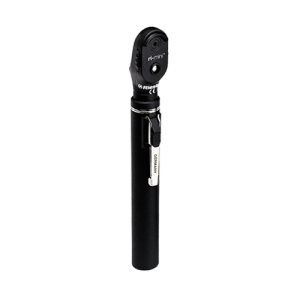

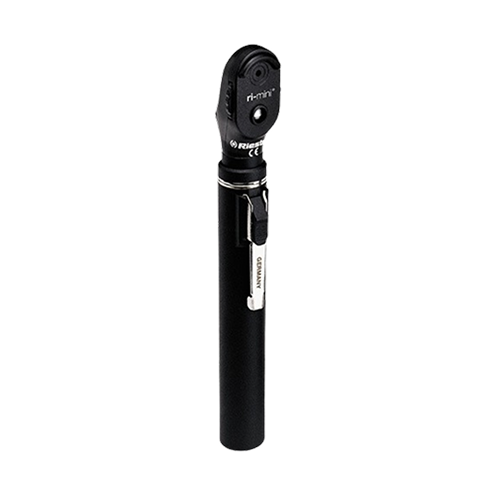

ri-mini® ophthalmoscope

Brands: Riester

~~$0.00~~

Shipped From Abroad

The ri-mini® Ophthalmoscope is a compact, cost-effective instrument featuring 2.5 V Xenon illumination. It includes a focusing wheel with 16 corrective lenses and an aperture hand-wheel with four apertures, housed in an impact-resistant, glass-fibre reinforced plastic casing.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

Ideal for clinics and practices, the ri-mini® Ophthalmoscope provides clear fundus visualization with its powerful 2.5 V Xenon (XL) lamp. It features an illuminated dioptre display for precise correction across 16 lenses, an integrated eyeglass protector, and four easy-to-operate apertures. The instrument head is secured by a screw fitting, and the entire unit is made from extremely impact-resistant, glass-fibre reinforced plastic.

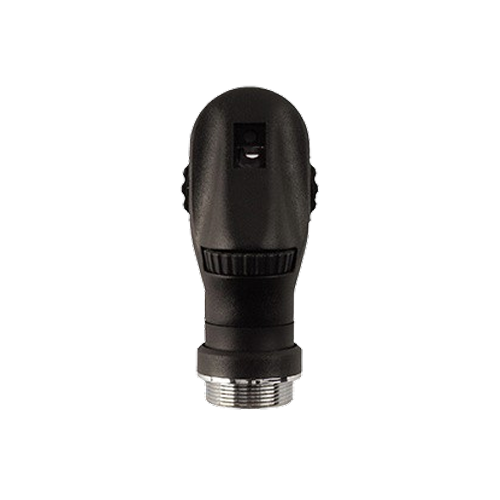

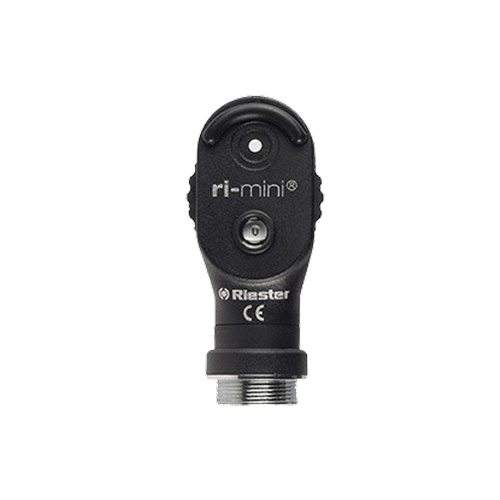

ri-mini® ophthalmoscope details

Dioptre wheel
Dioptre display
Aperture wheel
On/Off switch
Battery compartment

Features and benefits of the ri-mini® ophthalmoscope

ri-mini® with 2.5 V Xenon illumination.
Screw fitting for quick and secure attachment to the handle.
Sturdy adjustment ring for positioning the instrument head to the ideal angle on the handle.
Extremely impact-resistant casing made of glass-fibre reinforced plastic.
Easy lamp replacement at the base of the instrument head.

Patient’s side

Easy-to-operate aperture hand-wheel.
Four different apertures:
– Small circle + semi-circle to reduce reflexes in small pupils.
– Large circle for standard examination of the ocular fundus.
– Fixation star for determining central or eccentric fixation.
– Red open filter with a contrast-enhancing effect, for assessing fine vascular changes such as retinal haemorrhages.

Specifications

Dimensions	Ophthalmoscope head: 60 mm hight x 26.5 mm wide Ophthalmoscope battery compartment: 107.30 mm height, 20 mm in Ø 23 cm x 14 cm x 4.5 cm in hard case (set) 23 cm x 8.2 cm x 4.5 cm in hard case (single)
Magnification lens	The 2.5x magnification lens
The lamp for ri-mini® ophthalmoscope	XL, 2.5 V, 750 mA, average life span 16.5 h
Battery	2 Alkaline AA 1.5 V batteries
Ambient temperature	0 °C to 40 °C
Relative Humidity	30% to 70% non-condensing
Storage/ Transport Ambient temperature	-10 °C to 55 °C
Storage/ Transport relative Humidity	10% to 95% non-condensing

Download Brochure

Reviews

There are no reviews yet.

Be the first to review “ri-mini® ophthalmoscope”

Quick Comparison

ri-mini® ophthalmoscope remove Automatic Computer Goldmann (Visual Field Analyzer) remove Slit Lamp remove Auto Lensmeter TL-6500B remove Binocular Indirect Ophthalmoscope remove Digital Chart Projector remove

Name ri-mini® ophthalmoscope remove Automatic Computer Goldmann (Visual Field Analyzer) remove Slit Lamp remove Auto Lensmeter TL-6500B remove Binocular Indirect Ophthalmoscope remove Digital Chart Projector remove


SKU SF103356013013 SF1033560107-15 SF1033560107-20 SF1033560107-4 SF1033560107-25

Rating

Price

~~$0.00~~

$3,850.00

$1,375.00

$770.00

$880.00

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad The ri-mini® Ophthalmoscope is a compact, cost-effective instrument featuring 2.5 V Xenon illumination. It includes a focusing wheel with 16 corrective lenses and an aperture hand-wheel with four apertures, housed in an impact-resistant, glass-fibre reinforced plastic casing.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock

Features: The Bio-1000 automated perimeter absorbs the advantages of international advanced perimetry devices. It comprises the highly integrated computer, optics, machinery and electronics systems. Delivery & Availability: Typically 7-14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad

Top Optical System.
High eyepoint, comfort.
Five steps drum zoom design, easier to use 6x, 10x, 16x, 25x, 40x magnification.
High Definition Eyepieces, More Comfortable for Viewing.

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad

7.0-inch color LCD touch panel.
Hartman sensor with 108 multiple measure points.
Green measurement light beam.
Dyeing lens, sunglasses measured easily.

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad Super lightweight design, reduce fatigue, operation is very convenient.

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Ship from abroad

Easy installation and maintenance: It is quite easy to replace light bulks, and unnecessary to adjust its focus and position.
Customer Programmable: Icons can be displayed in predefined sequence by programming.
Display Single Icon: Display single icon by multi-function mask plate.
Tilted Placement: Perfect image position can be obtained by adjusting the horizontal axis of projector.
Standards parts: Metal plate with polarized coating (410x 410mm)

Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

ri-mini® ophthalmoscope details

Dioptre wheel
Dioptre display
Aperture wheel
On/Off switch
Battery compartment

Features and benefits of the ri-mini® ophthalmoscope

ri-mini® with 2.5 V Xenon illumination.
Screw fitting for quick and secure attachment to the handle.
Sturdy adjustment ring for positioning the instrument head to the ideal angle on the handle.
Extremely impact-resistant casing made of glass-fibre reinforced plastic.
Easy lamp replacement at the base of the instrument head.

Patient’s side

Easy-to-operate aperture hand-wheel.
Four different apertures: - Small circle + semi-circle to reduce reflexes in small pupils. - Large circle for standard examination of the ocular fundus. - Fixation star for determining central or eccentric fixation. - Red open filter with a contrast-enhancing effect, for assessing fine vascular changes such as retinal haemorrhages.

Specifications

Dimensions	Ophthalmoscope head: 60 mm hight x 26.5 mm wide Ophthalmoscope battery compartment: 107.30 mm height, 20 mm in Ø 23 cm x 14 cm x 4.5 cm in hard case (set) 23 cm x 8.2 cm x 4.5 cm in hard case (single)
Magnification lens	The 2.5x magnification lens
The lamp for ri-mini® ophthalmoscope	XL, 2.5 V, 750 mA, average life span 16.5 h
Battery	2 Alkaline AA 1.5 V batteries
Ambient temperature	0 °C to 40 °C
Relative Humidity	30% to 70% non-condensing
Storage/ Transport Ambient temperature	-10 °C to 55 °C
Storage/ Transport relative Humidity	10% to 95% non-condensing

Download Brochure

The Bio-1000 automated perimeter absorbs the advantages of international advanced perimetry devices. It comprises the highly integrated computer, optics, machinery and electronics systems. Incorporated with the advanced configuration, comprehensive software inspection categories， and strictly in accordance with international Goldman standard, it provide scientific means for glaucoma, fundus disease, visual pathway injury and neurological diseases. Feature: * Comprehensive real-time monitoring,Heiji-krakau physiological blind spot monitoring,gaze tracking/head position tracking,automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection. * Personalized design,accurate clinical analysis,accurate and repid examination strategy. * Under international Goldman standard,providing a variety of classic test procedures and report analysis. Technical Specification:

Inspection range	90°
Inspection distance	30cm
Background light brightness	White 31.5abs
Visual target brightness	1abs --- 10000abs
Visual target size	Goldmann III
Visual target interval time	200ms
Visual target interval time	Stardard or adjustment according to patient reflection
Threshold test model	Center5°- 16°,center10°- 68, 24-2, 30-2, 30°- 60°,nasal step
Upper threshold test model	30°-40,30°-76,P-60,60°-81,60°-120,190°-135,nasal side
Special detection strategy	Esterman monocular,Esterman binocular,user-customized test,150°driver monocular fast detection, 150°driver monocular standard detection, upper36°detection, blind spot detection, 150° horizontal straightness detection
Pupil size test	Automatic
Fixation monitoring	Blind spot monitoring, eye position deviation alarm, eyedeviation curve
Enviroment light detection	Automatic
Analysis software	Reliability analysis,single vision report,triple visionreport,GPA half vision analysis, GPA glaucoma developing analysis, VFI vision index analysis
Operation system	Win7 above

Click Here To Download Catalogue

Slit Lamp Features:

Top Optical System.
High eyepoint, comfort.
Five steps drum zoom design, easier to use 6x, 10x, 16x, 25x, 40x magnification.
High Definition Eyepieces, More Comfortable for Viewing.

Technical Specifications:

Microscope Type	Galileo Parallel
Optics	Super Optic System
Magnification Change Way	Drum Rotation
Eyepiece Magnification	12.5x
Total Magnifications	6x 10x, 16x, 25x, 40x
Diopter Adjustment	-5D ~+5D
Slit Width	0-14MM Continuous
Slit Height	1-14MM Continuous
Slit Angle	0°- 180° Adjustable
Light Source	LED
Light Spot Diameter	0.2mm, 2mm, 3mm, 5mm, 10mm, 14mm
Filter	Heat Absorption; Grey; Redfree; Cobalt Blue
Fixation	Red LED
Electrical
Illumination Bulb	LED
Input Voltage	110V/220V (±10%)
Applanation Tonometer Interface	Included

Features:

7.0-inch color LCD touch panel.
Hartman sensor with 108 multiple measure points.
Green measurement light beam.
Dyeing lens, sunglasses measured easily.

Technical Specifications:

Sphere lenses: 0~±25D
Cylinder lenses: 0~±10D
Cylinder Axis Angle: 0°~180°
Add.:0~10D
Power supply: 100~240V, 50/60HZ, 30W
Weight: 5kg

Ophthalmoscope Features:

LED bulb(low-temperature,low-pressure,high-brightness) with long lifetime to make the illumination uniformly and bright. The illumination brightness can be adjusted continuously.
Imaging clearly,strong dimensional sense and large field of view range.The main body part of this device adopts engineering plastics and is designed to be compact and exquisite.
Super lightweight design, reduce fatigue,operation is very convenient.
The portable power supply is suitable for surgery, ward round and consultation.
This device is equipped with color filter,teaching mirror and sclera depressor to be more handy in operation.

Technical Specifications:

Pupilary Adjustment	52mm～74mm adjustable
Intensity of Illumination	continuous adjustment with the maximum intensity no less than 500Lx
Headband	520～640mm in circumference, 85～125mm in depth
Light Spots	Big spot, middle spot and small spot
Filters	Red-free, white and cobalt blue
Light Source	LED light
Source of Power	Li+ battery, DC 7.4V
Source of Power	AC 100～240V, 50/60Hz
Input Power	Battery charger: 15 VA
Input Power	AC charger: 50VA
Dimension of Main Part	142mm × 48mm × 128mm（long×breadth×high）
Weight of Main Part	230g

Digital Chart Projector-Features:

Easy installation and maintenance: It is quite easy to replace light bulks, and unnecessary to adjust its focus and position.
Customer Programmable: Icons can be displayed in predefined sequence by programming.
Display Single Icon: Display single icon by multi-function mask plate.
Tilted Placement: Perfect image position can be obtained by adjusting the horizontal axis of projector.
Standards parts: Metal plate with polarized coating (410x 410mm)

Technical Specifications of Digital Chart Projector:

Projection Distance	1.5m~6m
Projection Magnification	30x (at 5m)
Projection Size	330x270mm (at 5 m)
Chart Switching Speed	One chart per 0.03s
Mask Switching Speed	1 open, 5 horizontal different lines, 8 vertical lines, 21 single letters, 1 red/green
Program	2 sets programs, each program contains up to 30 steps
Speed of mask conversion	One mask per 0.03s
Lamp	LED lamp
Auto-off function	After 10 minutes idle time
Power Source	AC 220V, 50Hz or 110V, 60Hz
Power consumption	40W
Accessories	Remote control, polarized metal screen, halogen lamp, polarized glasses, fuses (2), batteries (2)

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A

Additional information
