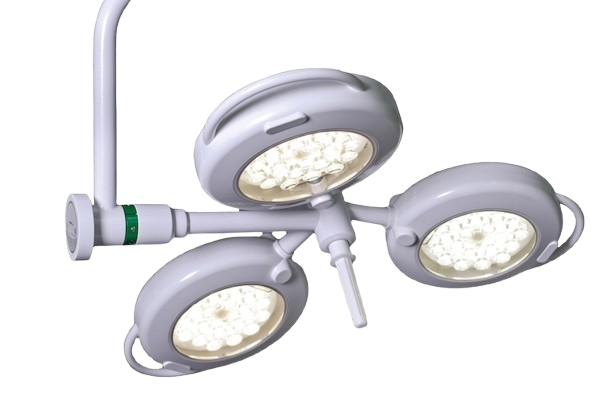

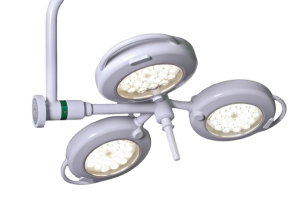

SOLIS 160 Surgical Light

The SOLIS 160 surgical light merges advanced LED illumination with ergonomic design and clean room-ready features. With up to 160,000 lux at 1 m and a fixed colour temperature around 4,400 K, it reproduces tissue colours accurately. The dome houses three independent LED modules for redundancy and shadow-free lighting. A sterile central handle enables precise adjustment of the light field, while the slim projector body and smooth surface allow easy cleaning and optimum airflow. Intensity is adjustable from 25 % to 100 %, making the light suitable for a variety of surgical procedures.

Features

• Illumination intensity up to 160,000 lux at 1 metre.

• Adjustable light intensity from 25 % to 100 %.

• High colour rendering index (CRI) of 96 for accurate colour reproduction.

• Colour temperature approx. 4,400 K (constant).

• Slim dome design with smooth surfaces for optimum hygiene and laminar-flow compatibility.

• Three independent LED light modules offer built-in redundancy if one fails.

• Sterile central handle for beam-field adjustment; minimal external fasteners on the dome.

• Operating field diameter (d10) approx. 210–220 mm; spot diameter (d50) approx. 105–110 mm.

• Temperature rise at the surgeon’s head < 1 °C, promoting comfort in long procedures.

• Compact power consumption (~52 W for the lighthead).

• Protection class around IP43; insulation Class I.

The control panel – easy to use, with the turn on/off button and

adjustment of the light intensity.

The sterile handle enables focusing of the light spot of the operating field,

ergonomic, placed in the centre for easy access and positioning of the dome.

Domes - three separated light sources, in the case of failure of one of them, the other two sources provide adequate illumination. The dome doesn't have any external screws and other fasteners. The smooth surface and perfectly matched components guarantee keeping it perfectly clean.

Features

• Complete round light dome made of molding plastic for best shadowless efficiency and less weight for movement.
• Multi-facet reflector technology, assures low power consumption, and uniform lighting effect on the surface and depth.
• The lamp dome body is waterproof and dustproof up to the international IP54 standard (providing domestic and international authoritative third-party test reports).
• Pure cold white LED from an internationally famous brand, protects the eyes of doctors and patients.
• Particular Optics Array:7 groups patented reflective technology with multiple-facet reflector, using Germany-made LED bulb, offers excellent focusing, illumination, and shadowless efficiency.
• Optimal Cold and Natural Lighting: Advanced CRI, color temperature, and temperature control meet the high standard examination request, ensuring the most comfortable use and feeling for the operator and patient.
• Optimized Illumination Controling Provides Power ON/OFF, dimming adjustable from 10%-100% by 9 levels to satisfy different using
• The lifetime of the LED light source is over 50,000 hours. At the same time, each LED component can be replaced independently, which is economically and environmentally friendly.

Product Features

Technical parameters:

Features

• Complete round light dome made of molding plastic for best shadowless efficiency and less weight for movement.
• Multi-facet reflector technology, assures low power consumption,and uniform lighting effect on the surface and depth.
• The lamp dome body is waterproof and dustproof up to the international IP54 standard (providing domestic and international authoritative third-party test reports).
• Pure cold white LED from an internationally famous brand, protects the eyes of doctors and patients.
• Particular Optics Array:7 groups patented reflective technology with multiple-facet reflector, using Germany-made LED bulb, offers excellent focusing, illumination, and shadowless efficiency.
• Optimal Cold and Natural Lighting: Advanced CRI, color temperature, and temperature control meet the high standard examination request, ensuring the most comfortable use and feeling for operator and patient both.
• Optimized Illumination Controling: Provides Power ON/OFF, dimming adjustable from 10%-100% by 9 levels to satisfy different using
• The lifetime of the LED light source is over 50,000 hours. At the same time, each LED component can be replaced independently, which is economically and environmentally friendly.

• High LED technology fulfilling lighting requirements of any kind of operation.
• Maximum lighting level by single button.
• LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

• Head design with low aerodynamic resistant protecting laminar flow of surgical space.

• Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
• Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
• Adjustable color temperature between 3500-5000 °K.
• LCD colour touchscreen control panel controlling all functions.

• Camera and medical monitor practically integrable with the lamp head for training purposes. It enables monitoring and recording operations.
• Manual focus function can be adjusted from the handle or the control panel.

• 4.3” LCD touchscreen and membrane control panel with led indicators are avaliable for all lamp heads.
• Model names with “A” refer to Analog membrane control panel and with “D” refer to Digital touchscreen control panel.

• Diameter of lighthead: Ø650 mm (Main Lighthead x1), Ø440 mm (Satellite Lighthead x1)
• Illumination power, in 1 m: 160.000 Lux (Main Lighthead x1 and 120.000 Lux(Satellite Lighthead x1)
• Color temperature: 3500 K - 5000 K(Main Lighthead x1) and 3500 K - 5000 K(Satellite Lighthead x1)
• Color rendering index, Ra CRI: 96% (Main Lighthead x1) and 96%(Satellite Lighthead x1)
• Dimming Range: % 1 – 100(Main Lighthead x1) and % 1 – 100(Satellite Lighthead x1)
• Adjustable focus diameter: 120 – 300 mm(Main Lighthead x1) and 120 – 300 mm(Satellite Lighthead x1)
• Temperature increase in surgical area: < 0,5°C(Main Lighthead x1) and < 0,5°C(Satellite Lighthead x1)
• Number of LED modules: 68(Main Lighthead x1) and 28(Satellite Lighthead x1)
• Lifetime of LED: 50.000 hour(Main Lighthead x1) and 50.000 hour(Satellite Lighthead x1)
• IP: IP 54(Main Lighthead x1) and IP 54(Satellite Lighthead x1)
