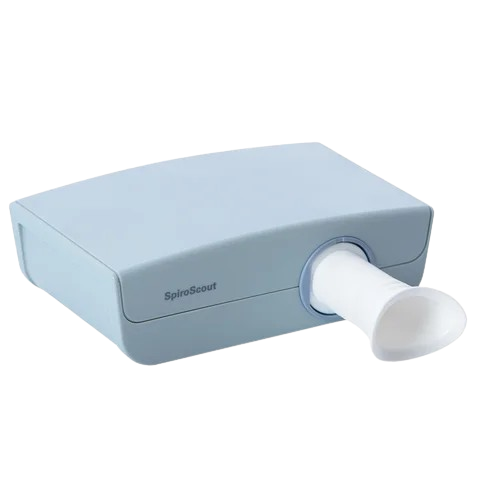

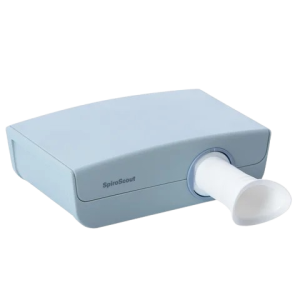

SpiroScout SP plus

The SpiroScout SP plus helps to make your office more efficient by adding spirometry measurements to your existing compatible SCHILLER ECG device. You’ll enjoy all the benefits of a full-featured ECG and spirometer with data organised in the same fashion, facilitating data management. The SpiroScout SP plus incorporates an ultrasound flow sensor to measure the flow of air into and out of the patient’s lungs. There are no moving parts, no screens to catch sputum, and no disposables to calibrate.

Features

• High-precision spirometry using direct flow measurement via ultrasound technology and direct flow measurement.

• Unaffected by humidity, barometric pressure, or contamination.

• Maintenance-free operation - no moving parts or calibration required.

• Single-use ergonomic mouthpiece ensures hygiene and prevents cross-contamination.

• Compact and lightweight for easy handling and transport.

• USB connectivity for seamless integration with ECG or diagnostic systems.

• Supports international reference standards for both adults and children.

• Provides accurate FVC, SVC, and MVV testing.

Technical Specifications

The JAY-40-4.0 is a high-pressure oxygen concentrator designed for large medical institutions and specialized applications. It provides an adjustable flow rate of 1 to 40 L/min with a consistent outlet pressure of 60 PSI (0.4 MPa). The unit maintains an oxygen concentration of 93% (±3%) and features a high-efficiency three-tower adsorption system for enhanced durability. Its robust design ensures reliable performance in intensive care units, operating rooms, and hyperbaric oxygen therapy chambers.

Key Features

• Flow Rate: 1–40 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 60 PSI (0.4 MPa)
• Power Consumption: ≤4440W
• Net Weight: 256 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen purity alarm
• Design: Compact and mobile with integrated pressure gauge and automatic dehydrator/refrigerated air dryer
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Compatible with hyperbaric oxygen chambers

The Longfian JAY-10FW is a high-capacity, dual-flow oxygen concentrator designed to meet the needs of patients requiring substantial oxygen support. With a flow rate adjustable from 0.5 to 10 L/min and oxygen concentration maintained at 93% ± 3%, it ensures effective therapy for conditions like pulmonary fibrosis and severe COPD. The dual-flow configuration allows two users to inhale oxygen simultaneously, enhancing its utility in clinical settings. Equipped with advanced cooling technology, the JAY-10FW ensures reliable 24/7 operation. Its user-friendly LCD display, safety alarms, and mobility features enhance usability and patient safety.​

Key Features:

• Flow Rate: 0.5–10 L/min

• Oxygen Concentration: 93% ± 3%

• Dual-Flow Capability: Supports two users simultaneously

• Continuous Operation: Advanced cooling system for 24/7 use

• User-Friendly Interface: LCD display with simple controls

• Mobility: Four castors with two brakes for easy movement

• Safety Alarms: Power failure, high/low pressure, and low oxygen concentration alerts

The Longfian JAY-1000P is an advanced portable oxygen concentrator designed for patients requiring reliable oxygen therapy during travel or daily activities. With a weight of 1.98 kg and dimensions of 183×86×199 mm, it combines portability with high performance.​

This device offers pulse dose delivery with five adjustable flow settings (1–5), ensuring precise oxygen delivery tailored to individual needs. It maintains an oxygen concentration of 93% ± 3%, supporting effective respiratory therapy.​

The JAY-1000P features a user-friendly LCD display and intuitive controls, enhancing the user experience. Its 12-cell battery provides up to 5.5 hours of operation on flow setting 1, making it ideal for extended use. The device is CE and ISO 9001 certified, ensuring compliance with international quality standards.​

Key Features:

• Pulse Dose Delivery: Five flow settings (1–5) for customized therapy.

• High Oxygen Concentration: Maintains 93% ± 3% purity.

• Lightweight and Compact: 1.98 kg and 183×86×199 mm for portability.

• Extended Battery Life: Up to 5.5 hours on flow setting 1.

• User-Friendly Interface: LCD display with simple controls.

• Certifications: CE and ISO 9001 certified for quality assurance.

• Portability: Includes a durable shoulder bag for easy transport.

The JAY-20-4.0 high-pressure oxygen concentrator is engineered for medical environments that demand higher oxygen flow rates. Delivering 1 to 20 L/min at an outlet pressure of 20–60 PSI (0.14–0.4 MPa), this unit ensures a steady and pure oxygen supply with a concentration of 93% (±3%). Its durable construction and advanced features support continuous operation in demanding settings such as intensive care units and operating rooms.

Key Features

• Flow Rate: 1–20 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20–60 PSI (0.14–0.4 MPa)
• Power Consumption: ≤2200W
• Sound Level: ≤60 dB
• Net Weight: 118 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm: Blue light (>82%), Red light (<82%)
• Mobility: Equipped with wheels for easy transportation
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Suitable for hospitals with up to 100 beds
  • Compatible with hyperbaric oxygen chambers

The JAY-10-4.0 is a high-pressure oxygen concentrator designed to provide a consistent oxygen supply with adjustable flow rates ranging from 1 to 10 L/min and an outlet pressure of 20–60 PSI (0.14–0.4 MPa). Its compact design and mobility make it suitable for various medical settings, including intensive care units and operating rooms. The unit features a high-efficiency three-tower adsorption system, ensuring durability and consistent oxygen purity of 93% (±3%).

Key Features

• Flow Rate: 1–10 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20–60 PSI (0.14–0.4 MPa)
• Power Consumption: ≤1250W
• Sound Level: ≤50 dB
• Net Weight: 90 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm: Blue light (>82%), Red light (<82%)
• Mobility: Equipped with wheels for easy transportation
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Suitable for hospitals with up to 100 beds
  • Compatible with hyperbaric oxygen chambers and nanobubble generators
