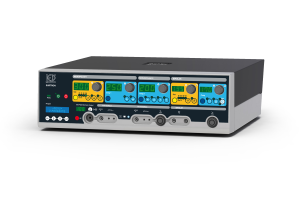

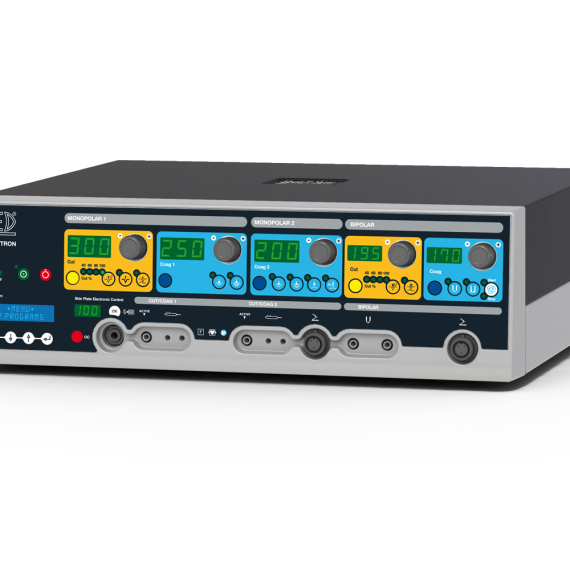

SURTRON 300 HP

Key Features

• Surgical Modes: Supports pure CUT, BLEND, ENHANCED incision, FORCED COAG, SOFT COAG, BIPOLAR coagulation, and ABLATION.

• Programmable RF Emission: Allows RF power emissions for programmable times as short as 10 milliseconds.

• Digital Control: Microcontroller-managed digital interface for precise power delivery and operational oversight.

• Safety Monitoring: Continuous monitoring of neutral electrode connection and patient/plate contact using a split neutral electrode.

• User-Friendly Operation: Control of output functions and power delivery directly from the handle, minimizing the need for the surgeon to divert attention from the surgical field.

Technical Data

• Max output power monopolar pure CUT 300 W – 300 Ω
• Max output power monopolar cut-coag CUT80% 250 W – 300 Ω
• Max output power monopolar cut-coag CUT60% 200 W – 300 Ω
• Max output power monopolar cut-coag CUT40% 150 W – 300 Ω
• Max output power monopolar cut ENHANCED 200 W – 500 Ω
• Max output power monopolar cut-coag BLEND 200 W – 300 Ω
• Max output power monopolar coag SPEEDY 100 W – 500 Ω
• Max output power monopolar coag DEEP 100 W – 200 Ω
• Max output power monopolar coag SPRAY 70 W – 2000 Ω
• Max output power monopolar coag SPRAY ARGON 70 W – 2000 Ω
• Max output power of bipolar CUT 120 W – 50 Ω
• Max output power bipolar cut-coag CUT80% 120 W – 50 Ω
• Max output power bipolar cut-coag CUT60% 120 W – 50 Ω
• Max output power bipolar cut-coag CUT40% 100 W – 50 Ω
• Max output power bipolar cut-coag BLEND 120 W – 150 Ω
• Max output power bipolar coag COAG 120 W – 50 Ω
• Vessel sealing 200 W – 50 Ω
• Working frequency Monopolar / Bipolar 425 kHz / 525 kHz
• Patient circuit F
• Selectable input voltage 115 – 230 Vac
• Mains frequency 50 – 60 Hz
• Electrical input power 1000 VA
• Size WxHxD 470x150x400 mm
• Weight 17,5 Kgs

Features:

1. Material: Made from medical-grade silicone, which is durable and flexible.
2. Reusable: Can be used multiple times after proper sterilization, making it cost-effective.
3. Adhesive Backing: Comes with an adhesive side to securely attach to the patient's skin.
4. Large Surface Area: Designed to disperse electrical current over a wide area to minimize the risk of burns.
5. Connectors: Typically equipped with connectors like REM or banana connectors for easy attachment to electrosurgical units.

Uses:

1. Electrosurgical Procedures: Used in various surgical procedures, including cutting, coagulating, and desiccating tissue.
2. Patient Safety: Ensures safe operation of electrosurgical units by dispersing the electrical current away from the patient's body.
3. Versatility: Suitable for different types of surgeries, from open surgeries to laparoscopic procedures.

Features

• Concise and reasonable design, which is easy and convenient to operate.
• Safe and efficient for surgery, and the needle could be withdrawn fluently and accurately.
• Smooth and beautiful suture, small and micro healing scar.
• There's good compatibility with tissues and less inflammatory response.
• It's easy and convenient to take out the stitches, which will promote wound healing.
• Sterile Disposable Skin Stapler reduces the patient's pain and improves operation efficiency.

• Power output can be controlled by the easy to use power adjustment button on the electrosurgical hand pencil which can shorten the operation time.
• With the inbuilt memory function on the device, you can set the required function parameters then power off the unit, next time the unit is powered on, the unit the last set parameter will be displayed.
• Output power of between 10 and 30 watts or less can be adjusted up and down by 0.1-watt increments, which is suitable for various delicate procedures.
• It can be used with disposable dispersive electrode

• x1 OBS-50 High-Frequency Electric Coagulator Unit
• x1 Reusable power control electrosurgical pencil
• x10 Non-Sterile Single-Use Short Sharp Tips
• x10 Non-Sterile Single-Use Short Blunt Tips
• x1 Power cord
• x1 Instruction manual

Multiple Applications to meet your different clinic demands

• Monopolar output mode without using the dispersive electrode
• Contact or insert into the tissue with the electrode
• The unit produces a high-frequency current, which runs through the patient via the electrode and then returns to the unit through grounding.
• High-frequency current vaporises the liquid inside the tissue cell therefore causing denaturation on the protein

• Another monopoly output mode without using a dispersive electrode
• Holding the electrode above the lesions rather than contact directly, will release an electric arc to the tissue.
• Range of action in this mode is limited to the surface where the arc contacts the tissue

• Suitable for hemostasis and shrinkage of tissue
• Used in control of hemostasis
• Suitable for more difficult cutting procedures for good hemostasis

• Monopolar output mode using the dispersive electrode
• Under this mode, the high-frequency current that is produced from the unit flows through the patient and then returns to the unit via a dispersive electrode
• The dispense electrode can draw more high-frequency current to the electrode, making the tip of electrode produce a more powerful desiccation to the tissue.

• An Output mode in which the high-frequency current circulates between two nearby electrodes (bipolar forceps), without using the dispersive electrode.
• In contrast to the effect of monopolar coagulation, since the high-frequency current is only circulated separately in the forceps, the bipolar coagulation effect acts only on the tissue surface, causing minimal damage to the tissue.

• Single foot switch
• Reusable power control electrosurgical pencil
• Reusable dispersive electrode (Patient Plate) & Cable
• Reusable bipolar forceps & cable
• Reusable Connecting Cable (for disposable dispersive electrode)
• Disposable dispersive electrodes
• Wall mounting Plate
