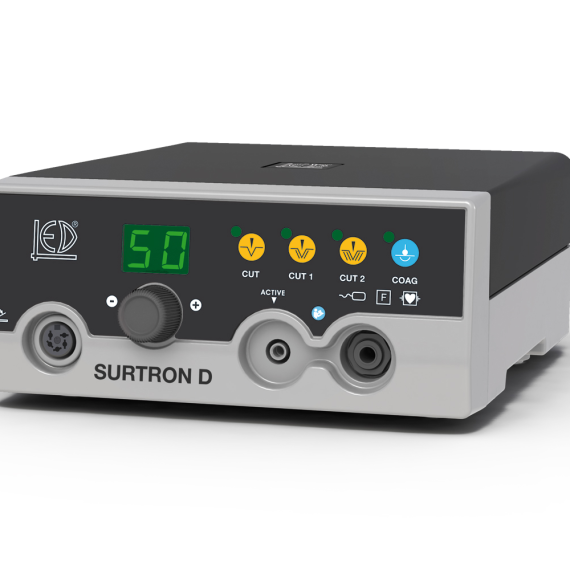

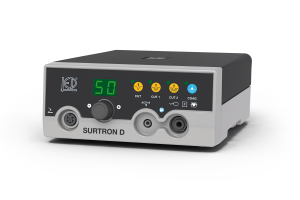

SURTRON 50D

• Max output power CUT 50 W – 400 Ω
• Max output power CUT 1 45 W – 400 Ω
• Max output power CUT 2 40 W – 400 Ω
• Max output power COAG 40 W – 400 Ω
• Working frequency 600 kHz
• Patient circuit F
• Selectable input voltage 115/230 VAC
• Main frequency 50-60 Hz
• Electrical input power: 280 VA
• Size WxHxD 190x85x239 mm
• Weight 2,5 Kgs

• Output power monitoring
• Self-check control

• EN60601-1
• EN60601-1-2
• EN60601-2-2
• Electrical Class: I CF
• MDR 2017/745/UE Class: II b

Features

• Concise and reasonable design, which is easy and convenient to operate.
• Safe and efficient for surgery, and the needle could be withdrawn fluently and accurately.
• Smooth and beautiful suture, small and micro healing scar.
• There's good compatibility with tissues and less inflammatory response.
• It's easy and convenient to take out the stitches, which will promote wound healing.
• Sterile Disposable Skin Stapler reduces the patient's pain and improves operation efficiency.

• Power output can be controlled by the easy to use power adjustment button on the electrosurgical hand pencil which can shorten the operation time.
• With the inbuilt memory function on the device, you can set the required function parameters then power off the unit, next time the unit is powered on, the unit the last set parameter will be displayed.
• Output power of between 10 and 30 watts or less can be adjusted up and down by 0.1-watt increments, which is suitable for various delicate procedures.
• It can be used with disposable dispersive electrode

• x1 OBS-50 High-Frequency Electric Coagulator Unit
• x1 Reusable power control electrosurgical pencil
• x10 Non-Sterile Single-Use Short Sharp Tips
• x10 Non-Sterile Single-Use Short Blunt Tips
• x1 Power cord
• x1 Instruction manual

Multiple Applications to meet your different clinic demands

• Monopolar output mode without using the dispersive electrode
• Contact or insert into the tissue with the electrode
• The unit produces a high-frequency current, which runs through the patient via the electrode and then returns to the unit through grounding.
• High-frequency current vaporises the liquid inside the tissue cell therefore causing denaturation on the protein

• Another monopoly output mode without using a dispersive electrode
• Holding the electrode above the lesions rather than contact directly, will release an electric arc to the tissue.
• Range of action in this mode is limited to the surface where the arc contacts the tissue

• Suitable for hemostasis and shrinkage of tissue
• Used in control of hemostasis
• Suitable for more difficult cutting procedures for good hemostasis

• Monopolar output mode using the dispersive electrode
• Under this mode, the high-frequency current that is produced from the unit flows through the patient and then returns to the unit via a dispersive electrode
• The dispense electrode can draw more high-frequency current to the electrode, making the tip of electrode produce a more powerful desiccation to the tissue.

• An Output mode in which the high-frequency current circulates between two nearby electrodes (bipolar forceps), without using the dispersive electrode.
• In contrast to the effect of monopolar coagulation, since the high-frequency current is only circulated separately in the forceps, the bipolar coagulation effect acts only on the tissue surface, causing minimal damage to the tissue.

• Single foot switch
• Reusable power control electrosurgical pencil
• Reusable dispersive electrode (Patient Plate) & Cable
• Reusable bipolar forceps & cable
• Reusable Connecting Cable (for disposable dispersive electrode)
• Disposable dispersive electrodes
• Wall mounting Plate

Features

• Clinic result proves that higher frequency can get less tissue resists nee. 4Mhz frequency can reduces heat injury a ind carbonizing to tissue at maximum. It realizes low temperature cutting.
• The antenna pad is unnecessary for skin touch, no current goes through the body, and no possibility of burning
• No pressure cutting and the pencil is operated easily and it's full of flexibility.
• No carbonation, less bleeding, and no adhesions.
• Less pain, scarring, and fast healing after operation.

Technical Parameters

Product Details

OUTPUT MODE

• CUT - For micro-smooth cutting
• BLEND - For cutting with coagulation
• HEMO - For pure Hemostasis-Coagulation to control most forms of bleeding
• FULGURATION - For desiccation or fulgurate spark-gap
• BIPOLAR - For precise coagulation utilizing bipolar energy

INTENDED USE

• Cutting: snoring, submucosal palatal shrinkage, traditional uvulopalatoplasty (RAUP), myringotomy with effective hemorrhage control, epistaxis treatment, turbinate shrinkage, skin incisions, biopsy, cysts, abscesses, tumors, cosmetic repairs, development of skin flaps, skin tags and blepharoplasty.
• Blended (cutting and coagulation): snoring, submucosal palatal shrinkage, traditional uvulopalatoplasty (RAUP), myringotomy with effective hemorrhage control, epistaxis treatment, turbinate shrinkage, skin tags, papilloma keloids, keratosis, verrucae. basal cell carcinoma, nevi, fistulas, epithelioma, cosmetic repairs, cysts, abscesses, and development of skin flaps.
• Hemostasis: control of bleeding, epilation, telangiectasia.
• Fulguration: basal cell carcinoma, papilloma, cyst destruction, tumors, verrucae, hemostasis.
• Bipolar: pinpoint precise coagulation, pinpoint hemostasis in any field (wet or dry), snoring, submucosal palatal shrinkage, traditional uvulopalatoplasty (RAUP), myringotomy with effective hemorrhage control, epistaxis treatment and turbinate shrinkage.

Transportation Data :

• WxHxD:34(L)'23.5(W)*10.6(H) 49(L)*35.5(W)'31(H)cn Weight:8.2kg(NetWeight);12. cm(Generator) i(outer carton) 1kg(Gross Weight)
• Standard Matching Accessories
• Instruction for Use: 1pc
• Power Cord: 1pc
• Dual Pedal Switch: 1pc
• Disposable ESU Pencil: 2 pes
• Reusable Antenna Pad with cable: 1 set
• Reusable Bipolar Forceps with Cable: 1 set
• Reusable ESU pencil: 1 pc
• Reusable Fine Electrode tips (Needle, curved, Needle .Ball): 7pcs
• Disposable leep Electrode tips: 5pcs
