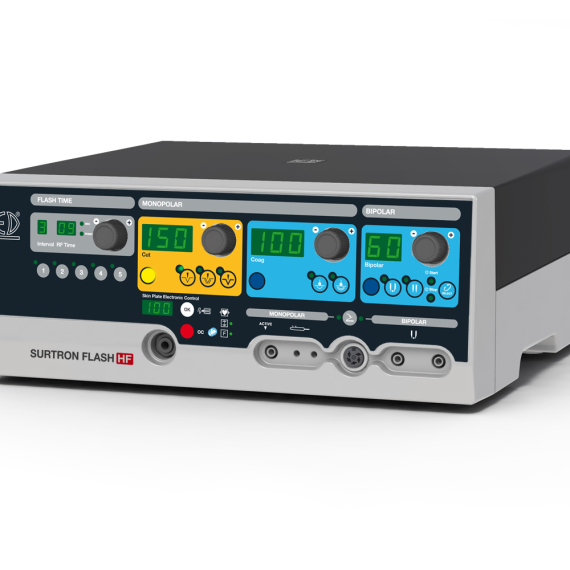

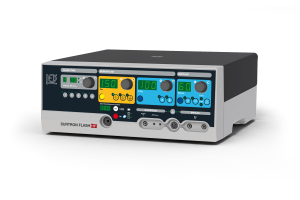

SURTRON FLASH 160 HF

Key Features

• Surgical Modes: Supports pure CUT, BLEND, ENHANCED incision, FORCED COAG, SOFT COAG, BIPOLAR coagulation, and ABLATION.

• Programmable RF Emission: Allows RF power emissions for programmable times as short as 10 milliseconds. avrasyamed.com.tr+5Walen Tec Asia Pte Ltd+5MedicalExpo+5

• Digital Control: Microcontroller-managed digital interface for precise power delivery and operational oversight.

• Safety Monitoring: Continuous monitoring of neutral electrode connection and patient/plate contact using a split neutral electrode.

• User-Friendly Operation: Control of output functions and power delivery directly from the handle, minimizing the need for the surgeon to divert attention from the surgical field.

Technical Data

• Max output power CUT 150 W-500 Ω
• Max output power BLEND 100 W-500 Ω
• Max output power ENHANCED 100 W-500 Ω
• Max output power FORCED COAG 100 W-150 Ω
• Max output power SOFT COAG 80 W-100 Ω
• Max output power BIPOLAR COAG 60 W-50 Ω
• Working frequency 60 W-100 Ω
• Working frequency 600 KHz – 4.0 MHz
• RF power pulse emission time 10 ms – 30 sec
• RF power pulse interval 1 – 9
• Patient circuit F
• Selectable input voltage 115 – 230 VAC
• Main frequency 50 – 60 Hz
• Electrical input power: 350 VA
• Size WxHxD 370x144x319 mm
• Weight 6 Kgs

• Power output can be controlled by the easy to use power adjustment button on the electrosurgical hand pencil which can shorten the operation time.
• With the inbuilt memory function on the device, you can set the required function parameters then power off the unit, next time the unit is powered on, the unit the last set parameter will be displayed.
• Output power of between 10 and 30 watts or less can be adjusted up and down by 0.1-watt increments, which is suitable for various delicate procedures.
• It can be used with disposable dispersive electrode

• x1 OBS-50 High-Frequency Electric Coagulator Unit
• x1 Reusable power control electrosurgical pencil
• x10 Non-Sterile Single-Use Short Sharp Tips
• x10 Non-Sterile Single-Use Short Blunt Tips
• x1 Power cord
• x1 Instruction manual

Multiple Applications to meet your different clinic demands

• Monopolar output mode without using the dispersive electrode
• Contact or insert into the tissue with the electrode
• The unit produces a high-frequency current, which runs through the patient via the electrode and then returns to the unit through grounding.
• High-frequency current vaporises the liquid inside the tissue cell therefore causing denaturation on the protein

• Another monopoly output mode without using a dispersive electrode
• Holding the electrode above the lesions rather than contact directly, will release an electric arc to the tissue.
• Range of action in this mode is limited to the surface where the arc contacts the tissue

• Suitable for hemostasis and shrinkage of tissue
• Used in control of hemostasis
• Suitable for more difficult cutting procedures for good hemostasis

• Monopolar output mode using the dispersive electrode
• Under this mode, the high-frequency current that is produced from the unit flows through the patient and then returns to the unit via a dispersive electrode
• The dispense electrode can draw more high-frequency current to the electrode, making the tip of electrode produce a more powerful desiccation to the tissue.

• An Output mode in which the high-frequency current circulates between two nearby electrodes (bipolar forceps), without using the dispersive electrode.
• In contrast to the effect of monopolar coagulation, since the high-frequency current is only circulated separately in the forceps, the bipolar coagulation effect acts only on the tissue surface, causing minimal damage to the tissue.

• Single foot switch
• Reusable power control electrosurgical pencil
• Reusable dispersive electrode (Patient Plate) & Cable
• Reusable bipolar forceps & cable
• Reusable Connecting Cable (for disposable dispersive electrode)
• Disposable dispersive electrodes
• Wall mounting Plate

Features

• Clinic result proves that higher frequency can get less tissue resists nee. 4Mhz frequency can reduces heat injury a ind carbonizing to tissue at maximum. It realizes low temperature cutting.
• The antenna pad is unnecessary for skin touch, no current goes through the body, and no possibility of burning
• No pressure cutting and the pencil is operated easily and it's full of flexibility.
• No carbonation, less bleeding, and no adhesions.
• Less pain, scarring, and fast healing after operation.

Technical Parameters

Product Details

OUTPUT MODE

• CUT - For micro-smooth cutting
• BLEND - For cutting with coagulation
• HEMO - For pure Hemostasis-Coagulation to control most forms of bleeding
• FULGURATION - For desiccation or fulgurate spark-gap
• BIPOLAR - For precise coagulation utilizing bipolar energy

INTENDED USE

• Cutting: snoring, submucosal palatal shrinkage, traditional uvulopalatoplasty (RAUP), myringotomy with effective hemorrhage control, epistaxis treatment, turbinate shrinkage, skin incisions, biopsy, cysts, abscesses, tumors, cosmetic repairs, development of skin flaps, skin tags and blepharoplasty.
• Blended (cutting and coagulation): snoring, submucosal palatal shrinkage, traditional uvulopalatoplasty (RAUP), myringotomy with effective hemorrhage control, epistaxis treatment, turbinate shrinkage, skin tags, papilloma keloids, keratosis, verrucae. basal cell carcinoma, nevi, fistulas, epithelioma, cosmetic repairs, cysts, abscesses, and development of skin flaps.
• Hemostasis: control of bleeding, epilation, telangiectasia.
• Fulguration: basal cell carcinoma, papilloma, cyst destruction, tumors, verrucae, hemostasis.
• Bipolar: pinpoint precise coagulation, pinpoint hemostasis in any field (wet or dry), snoring, submucosal palatal shrinkage, traditional uvulopalatoplasty (RAUP), myringotomy with effective hemorrhage control, epistaxis treatment and turbinate shrinkage.

Transportation Data :

• WxHxD:34(L)'23.5(W)*10.6(H) 49(L)*35.5(W)'31(H)cn Weight:8.2kg(NetWeight);12. cm(Generator) i(outer carton) 1kg(Gross Weight)
• Standard Matching Accessories
• Instruction for Use: 1pc
• Power Cord: 1pc
• Dual Pedal Switch: 1pc
• Disposable ESU Pencil: 2 pes
• Reusable Antenna Pad with cable: 1 set
• Reusable Bipolar Forceps with Cable: 1 set
• Reusable ESU pencil: 1 pc
• Reusable Fine Electrode tips (Needle, curved, Needle .Ball): 7pcs
• Disposable leep Electrode tips: 5pcs

Features

1. LED light positioned between the electrodes enhances the vision during surgery.

Indications for Use

• Ensure that both electrodes are in contact with the tissue to be treated. Activation and saline flow occur simultaneously.
• Ensure that saline is flowing at the time of activation
• These devices should never be used when:
• There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.
• These devices fail the inspection described herein.
• In the presence of flammable gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O), or in oxygen-riched environments.
• Do not use monopolar electrosurgery on small appendages, as in circumcision or finger surgery.

Features

1. Portable and  affordable

Technical Details

Disposable ECG Electrodes are pre-gelled, non-sterile, single use disposable electrocardiographic electrodes which are intended for use as an accessory to ECG equipment for ECG monitoring , diagnostic procedures and can used for stress test & holter.

1. Clean the skin area where the electrode will stick on. Make sure the skin area for sticking is intact (uninjured). 2. Connect the leadwire with the electrode. Make sure it is fastened and in good contact. 3. Tear off the release film from the bottom (the part away from metal stud) of electrode. 4. Press lightly when stick the electrodes to the skin and make sure the conductive gel and adhesive backing stick on the skin tightly. Caution

• Don’t peel the release film from the metal stud of the electrode. It may break the structure and affect the function of electrodes.
• ECG electrodes should only be used by or in consultation with a healthcare provider familiar with their proper placement and use.
• ECG electrodes may damage the skin if removed carelessly.
• ECG electrodes should be applied only to intact, clean skin (e.g., not over open wounds, lesions, or infected, or inflamed areas).
• Do not reuse this device. It may cause infection and affect the performance of the reuse of this device.
