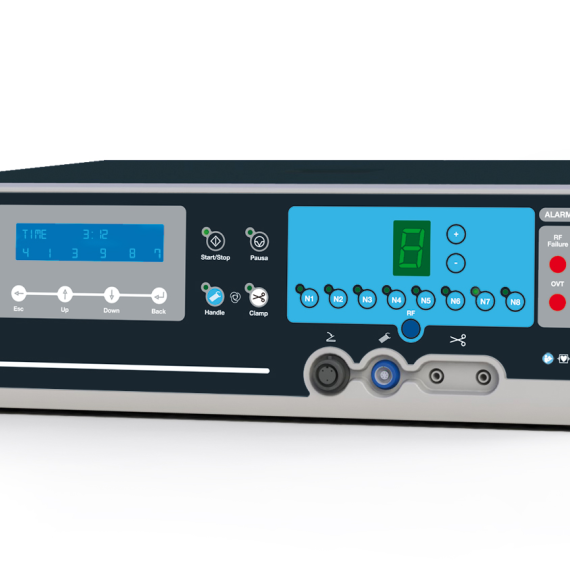

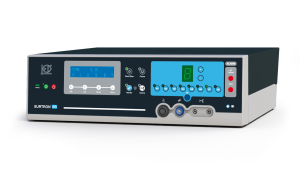

SURTRON SB- Epatic Resection without Bleeding

• Innovative Incremental Voltage RF Generator
• Disposable No-Stick Multielectrode
• Guide designed to avoid electrodes
• Protective shield to help in the insertion of the electrodes and for thermal isolation of the tissues below the parenchyma

Key Features

• Patented RF Technology: Utilizes an innovative incremental voltage RF generator with automatic energy control, ensuring precise coagulation of targeted liver tissue.led.it

• Multielectrode Comb Design: Features a disposable, non-stick multielectrode resembling a comb, promoting uniform coagulation across the transection plane.led.it

• Comprehensive Accessory Set: Includes a guide to prevent electrode misplacement and a protective shield to assist in electrode insertion and provide thermal isolation to underlying tissues.led.it

• Clinical Efficacy: Studies have demonstrated that the SURTRON SB enables bloodless hepatic resections without the need for vascular occlusion techniques, thereby reducing operative time and postoperative complications

Technical Specifications

• Max output power 250 W-50 Ω
• Working frequency 350 kHz
• Max output voltage 600 Vpp
• Input voltage 100-240 Vac
• Mains frequency 50-60 Hz
• Electrical input power 450 VA
• Size WxHxD 470x150x400 mm
• Weight 15 Kgs

Disposable ECG Electrodes are pre-gelled, non-sterile, single use disposable electrocardiographic electrodes which are intended for use as an accessory to ECG equipment for ECG monitoring , diagnostic procedures and can used for stress test & holter.

1. Clean the skin area where the electrode will stick on. Make sure the skin area for sticking is intact (uninjured). 2. Connect the leadwire with the electrode. Make sure it is fastened and in good contact. 3. Tear off the release film from the bottom (the part away from metal stud) of electrode. 4. Press lightly when stick the electrodes to the skin and make sure the conductive gel and adhesive backing stick on the skin tightly. Caution

• Don’t peel the release film from the metal stud of the electrode. It may break the structure and affect the function of electrodes.
• ECG electrodes should only be used by or in consultation with a healthcare provider familiar with their proper placement and use.
• ECG electrodes may damage the skin if removed carelessly.
• ECG electrodes should be applied only to intact, clean skin (e.g., not over open wounds, lesions, or infected, or inflamed areas).
• Do not reuse this device. It may cause infection and affect the performance of the reuse of this device.

Features:

1. High Conductivity: They are made from materials that ensure efficient conduction of electrical current.
2. Large Surface Area: This helps in dispersing the current over a wide area, reducing the risk of burns.
3. Adhesive Backing: They usually have an adhesive side to securely attach to the patient's skin.
4. Flexible Design: They are designed to conform to the contours of the patient's body.
5. Safety Mechanisms: Modern pads often include features like dual-pad return electrodes for fail-safe operation.

Uses:

1. Completing the Electrical Circuit: They act as a return path for the electrical current used in electrosurgery.
2. Minimizing Burns: By dispersing the current, they help prevent burns at the surgical site.
3. Ensuring Patient Safety: They are crucial for the safe operation of electrosurgical units, especially in patients with electronic implants like pacemakers.
4. Versatile Applications: Used in various surgical procedures, including cutting, coagulating, and desiccating tissue.

Features

• Power: It offers cutting power up to 350W and coagulating power up to 150W.
• Frequency: Operates at 417 kHz.
• Applications: Suitable for general surgery, vascular surgery, hepatobiliary and pancreatic surgery, cardiothoracic surgery, gastroenterology, TURP (Transurethral Resection of the Prostate), TUVP (Transurethral Vaporization of the Prostate), and compatible with cystoscopy, arthroscopy, laparoscopy, and hysteroscopy.
• Modes: It has 8 different working modes including pure cut, blend, coagulation, and bipolar vessel sealing.
• Display: Features a 7-segment LED display for easy monitoring.
• Presets: Comes with 10 saved presets for quick access
• Monopolar and Bipolar Modes: This device supports both monopolar and bipolar modes, offering flexibility for various surgical needs.
• User-friendly Interface: The intuitive LCD display provides real-time feedback and easy control settings, enhancing the precision and efficiency of surgical procedures.
• Safety Features: It includes automatic self-checking systems and alarms for safety, ensuring reliable performance during operations.
• Memory Function: You can save and recall up to 10 presets, allowing for quick setup and operation tailored to specific surgical requirements.
• Efficient Smoke Evacuation: Integrated smoke evacuation system helps maintain a clear surgical field and improves visibility.

Technical Specifications

• Cutting Power: Up to 350W
• Coagulating Power: Up to 150W
• Frequency: 417 kHz
• Power Supply: AC 100-240V, 50/60Hz
• Dimensions: 380mm x 280mm x 120mm
• Weight: Approximately 6kg

Applications

• General Surgery: Versatile for cutting and coagulating tissue.
• Vascular Surgery: Precise control for delicate procedures.
• Laparoscopy: Compatible with minimally invasive surgical techniques.
• Hysteroscopy: Suitable for gynecological procedures.

Features

• Biocompatible Material, latex-free in construction
• Ratchet handles are designed ergonomically which comfortably fit into the surgeon´s hand
• Nylon coating resists abrasion and provides superb insulation.
• Well-balanced and highly polished tips aid fine control.
• 50-time autoclave

Features

1. Intended for ablation,tissue modification, and coagulation of soft tissue in arthroscopic procedures such as hip,  shoulder, ankle, wrist, elbow, and knee. 2. The Extending shaft enables good visualization and easy insertion through subcutaneous tissue,and  well insulated coating guarantee its safety and reliability. 3.Irrigation/suction solution is available with a cannula and an adjustable flow control valve. 4. Tips in different shapes and angles fit in particular arthroscopic procedures. 5. Compatible with most electrosurgical generators.

Use Indication

This device should never be used when:

• There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.
• These devices fail the inspection described herein.
• In the presence of flammable gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O), or in oxygen-riched environments.
• Do not use monopolar electrosurgery on small appendages, as in circumcision or finger surgery.
