20-60PSI High Pressure Oxygen Concentrator

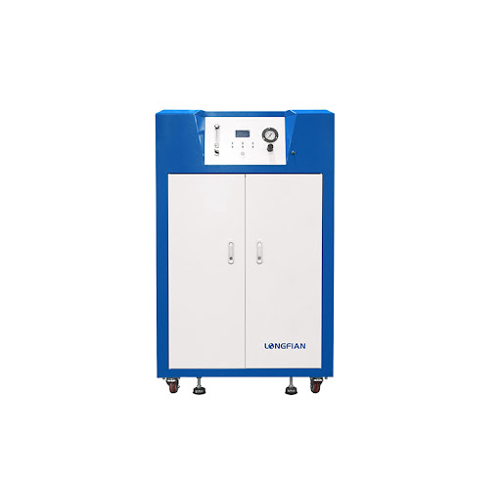

The JAY-40-4.0 is a high-pressure oxygen concentrator designed for large medical institutions and specialized applications. It provides an adjustable flow rate of 1 to 40 L/min with a consistent outlet pressure of 60 PSI (0.4 MPa). The unit maintains an oxygen concentration of 93% (±3%) and features a high-efficiency three-tower adsorption system for enhanced durability. Its robust design ensures reliable performance in intensive care units, operating rooms, and hyperbaric oxygen therapy chambers.

Key Features

• Flow Rate: 1–40 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 60 PSI (0.4 MPa)
• Power Consumption: ≤4440W
• Net Weight: 256 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen purity alarm
• Design: Compact and mobile with integrated pressure gauge and automatic dehydrator/refrigerated air dryer
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Compatible with hyperbaric oxygen chambers

The JAY-3AW and JAY-5AW are robust oxygen concentrators designed for continuous use. With flow rates of 3L/min and 5L/min, they deliver oxygen at a concentration of 93% (±3%). Their innovative cooling systems ensure reliable 24/7 operation, making them suitable for both home and clinical environments.​

Key features include:

• User-Friendly Interface: Simple controls with an easy-to-read LCD display.

• Mobility: Four flexible castors with two brakes for easy movement and secure positioning.

• Safety Features: Humidifier bottle with a 6PSI pressure relief valve, and alarms for power failure, high/low pressure, and low oxygen concentration.​

These models are compatible with High-Flow Nasal Cannula (HFNC), Hyperbaric Oxygen Chambers (HBOC), and BIPAP systems, enhancing their versatility in oxygen therapy applications. ​

Key Features

• Flow Rate: 0.5–10 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20 PSI (0.14 MPa)
• Power Consumption: ≤880W
• Sound Level: ≤50 dB
• Net Weight: 27 kg
• Dimensions: 365 × 375 × 600 mm
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm
• Display: Large LCD showing operating parameters
• Additional Features:
  • Easy dial flow control
  • Indicator lights for operating status
  • Optional dual flow function for two patients
  • US humidifier bottle with 6 PSI pressure relief valve
  • Top storage box for accessories
  • Suitable for use with nebulizers
  • Continuous operation capability

The Longfian Continuous Flow Portable Oxygen Concentrator is engineered for patients requiring a steady and uninterrupted oxygen supply. With a flow rate ranging from 1 to 7 L/min and an oxygen concentration of 93% ± 3%, it ensures consistent and effective oxygen therapy.​

Weighing 6 kg and measuring 220×280×310 mm, this device is suitable for both home and travel use. It features a robust design with an outlet pressure of 6–10 PSI, accommodating various respiratory needs. The concentrator operates on AC power and offers optional DC power supplies for in-car use, enhancing its versatility.

Key Features:

• Continuous Flow Delivery: Adjustable flow rate from 1 to 7 L/min.
• High Oxygen Concentration: Delivers 93% ± 3% purity.
• Robust Design: 6 kg weight and 220×280×310 mm dimensions for stability.
• Outlet Pressure: 6–10 PSI to meet various therapeutic needs.
• Versatile Power Options: Compatible with AC and optional DC power supplies.
• Safety Features: Equipped with alarms and safety mechanisms for patient well-being.

Key Features:

• Flow Rate: 0.5–5 L/min
• Oxygen Concentration: 93% ± 3%
• Quiet Operation: ≤40 dB noise level
• Compact Design: Easy to place in various settings
• User-Friendly Interface: Simple controls for ease of use
• Safety Alarms: Power failure, high/low pressure, and low oxygen concentration alerts​

The Longfian JAY-1000 is a lightweight and compact portable oxygen concentrator designed for individuals requiring supplemental oxygen therapy on the go. Weighing only 1.5 kg and measuring 193×83×173 mm, it offers enhanced mobility without compromising performance.​

Equipped with pulse dose delivery, the JAY-1000 provides oxygen flow settings from 1 to 5, ensuring efficient oxygen delivery tailored to the user's needs. It delivers medical-grade oxygen at a concentration of 93% ± 3%, supporting optimal respiratory function.​medzell.net

The device features an easy-to-remove external battery with a duration of up to 3 hours, allowing users to maintain their active lifestyles without interruption. Its user-friendly interface and comfortable shoulder bag enhance usability and portability.​

Key Features:

• Pulse Dose Delivery: Five flow settings (1–5) for personalized oxygen therapy.
• High Oxygen Concentration: Delivers 93% ± 3% purity.
• Lightweight Design: Only 1.5 kg for enhanced mobility.
• Compact Dimensions: 193×83×173 mm for easy transport.
• Battery Life: Up to 3 hours of operation.
• User-Friendly Interface: Simple controls for ease of use.
• Portability: Includes a strong, comfortable shoulder bag.
