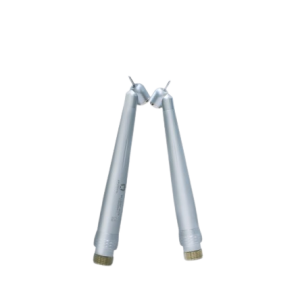

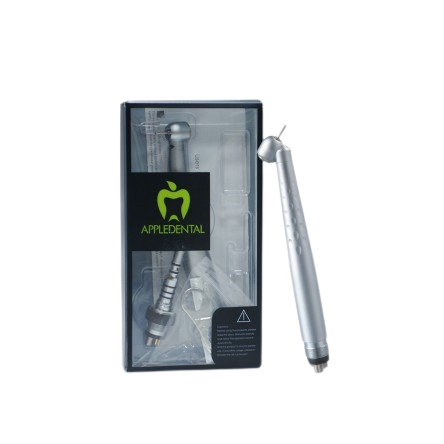

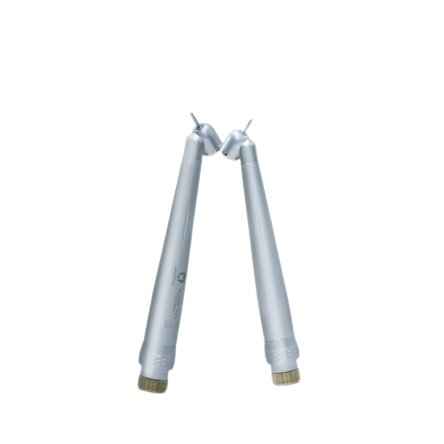

45° Surgical Dental Handpiece
$0.00
Shipped From Abroad
The 45° Surgical Handpiece is specialised for impacted teeth procedures, offering optimal posterior access and visibility. It features a push-button chuck, a crucial single-port water spray for safety, and high-speed operation (up to 420,000 rpm).
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The Apple Dental 45° Surgical Handpiece (Code: BULE45º-SU) is specifically designed for complex posterior procedures, like impacted wisdom tooth removal, due to its angled head and exceptional access. It features a reliable push-button chuck, high rotational speed, and utilizes a single water spray system to minimize surgical risks, such as subcutaneous emphysema. Available with optional LED light, it is fully autoclavable at 135°C for superior hygiene and durability.
Features
-
Surgical Design: 45-degree angled head for exceptional access to third molar areas and other hard-to-reach surgical sites.
-
Safety Cooling: Uses a Single Water Spray system, which is critical in surgical environments to prevent air from being forced into tissue planes (subcutaneous emphysema).
-
Specialized Application: Primarily designed for procedures involving impacted teeth, bone trimming, and sectioning procedures.
-
Illumination: LED Light available (some models feature self-generating LED) for enhanced visibility during complex procedures.
-
Bur Retention: Features a secure Push-Button chuck mechanism for rapid, simple, and safe bur changes.
-
Sterilization: Fully Autoclavable up to 135°C (275°F) to meet stringent infection control standards.
-
Durability: Constructed with high-quality materials and often utilizes German/Japanese ceramic bearings for reliable, low-noise performance.
Maintenance and cleaning
- Clean the surface after using:
First, wipe the body with alcohol cotton and then rinse the outside of the handpiece. Remove the handpiece surface and the nose part of some of the dirt (tooth powder, blood), rinse with water. Please keep the phone head up; only flush the outside.
- Clean by lubricating the machine:
Connect the handpiece with the lubricating machine by a 2-hole / 4-hole connection, press the start switch (according to the lubricating machine, the function or process automatically completes the cleaning).
- Sterilized after cleaning:
A.Complete the oiling cleaning, and wipe the surface clean of the lubricant, the sterile bag with a
sealing machine.
B, the ready handpiece will be sealed into the sterilizer
disinfection (commonly used equipment for 134 ℃
three pre-vacuum disinfection)
Specifications
• Code: BULE45°-SU
• Air Pressure: 0.22 (Mpa) – 0.25 (Mpa)
• Rotor Speed: 350 (krpm) – 400 (krpm)
• Torque: 0.35 (N) – 0.4 (N)
• Water flow: 90 (ml/min) – 110 (ml/min)
• Water pressure: 0.2 (Mpa) – 0.23 (Mpa)
• Noise: ≤ 65 dB
• Apply bur: 1.59 mm – 1.6 mm
• Noise: ≤ 70 dB
