Chemistry-Experiments / Health Education

Ax60+ Kiosk

Brands: Analox

~~$0.00~~

Shipped From Abroad

Key Features

Low maintenance
Quick Connect System
Pre-wired, ready to go
Can support up to 4 alarm units
Push button for unit testing

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130141-6

Brands:: Analox

Description
Reviews (0)

Description

CO2 MONITOR & ALARM DESIGNED FOR KIOSKS

The Ax60+ Kiosk is a CO2 monitor and alarm specifically designed by Analox to alert personnel to a build up/leak of CO2 using a state-of-the-art infrared sensor. The alarm provides both audio and visual alerts in the case of increased levels of carbon dioxide (CO2). Up to four alarms can be added as needed and the unit does not need periodic calibration.

CO2 monitoring with the AX60+ Kiosk

The Ax60+ Kiosk is a smaller version of the popular Ax60+ carbon dioxide (CO2) monitor. It is simple to wall mount in the area where carbon dioxide (CO2) is stored or piped.

The Ax60+ Kiosk sensor needs to be installed at a height of 12-18 inches (305-457mm) above the floor – this is because the carbon dioxide (CO₂) that leaks from a gas cylinder is denser than ambient air and can collect at low levels. The alarm should be located above the sensor at about head height or at the entrance to the kiosk.

Technical Specification

Sensor Unit


Gas detected	Carbon Dioxide (CO2)
Sensor technology	Infrared
Range	0.1% to 5%
Default alarm set-points	USA regulations (NFPA 55, IFC, NBIC, OSHA and NIOSH): TWA – 5,000ppm (0.5%) AL1 – 5,000ppm (0.5%) AL2 – 15,000ppm (1.5%) AL3 – 30,000ppm (3%) International/European regulations (EH40) (DIN 6653-2:2015-06 compliant, assessed by TUV): TWA – 5,000ppm (0.5%) AL1 – 15,000ppm (1.5%) CO2 – 30,000ppm (3%)
Warm up time	40 Seconds
Resolution	0.01%
Accuracy	±2.5% of the alarm levels
Response Time	30 seconds to T90
IP Rating	IP55
LED indicators	Green = Power

Alarm Unit


Strobe	White LED strobe, with an option to change to blue, red or amber filter.
Sounder	min 80 dBA @3 m (9.8 feet)
IP Rating	IP55
LED indicators	Green = Power, Amber = Fault
Cable	2m included

Reviews

There are no reviews yet.

Be the first to review “Ax60+ Kiosk”

Quick Comparison

Ax60+ Kiosk remove CARBON MONOXIDE MONITORING SYSTEM (AX60+ CO) remove Automatic Pipette remove PORTABLE OXYGEN MONITOR remove PERSONAL CO2/O2 MONITOR-SUB-ASPIDA remove Pilot-RO Water Purification System remove

Name Ax60+ Kiosk remove CARBON MONOXIDE MONITORING SYSTEM (AX60+ CO) remove Automatic Pipette remove PORTABLE OXYGEN MONITOR remove PERSONAL CO2/O2 MONITOR-SUB-ASPIDA remove Pilot-RO Water Purification System remove


SKU SF1033560130141-6 SF1033560130141-1 SF1033560084-130 SF1033560130141-18 SF1033560130141-13 SF1033560130126-2

Rating

Price

~~$0.00~~

~~$0.00~~

~~$0.00~~

~~$0.00~~

~~$0.00~~

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad

Key Features

Low maintenance
Quick Connect System
Pre-wired, ready to go
Can support up to 4 alarm units
Push button for unit testing

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

The Ax60+ CO protects users in plant rooms, parking garages and anywhere that carbon monoxide can collect. The Ax60+ CO also can be used for online cylinder filling, to protect divers from compressed air contaminated with carbon monoxide related to compressor maintenance or contamination at the compressor inlet.

The Ax60+ CO benefits from the ability to operate as a single sensor and alarm or as part of a system of up to 4 sensors. Each system can also be composed of Ax60+: O2 sensors and Ax60+ CO2 sensors so it can fulfil multiple application needs.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock

This Automatic Pipette will help you get your lab up and running in no time—at a great price! Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Key Features

Fitted with a temperature compensated sensor which offers an expected 3 year life
Water and drop resistance, perfect for when using onboard diving trips
Compact and robust with minimal maintenance costs
Fast and easily transportable

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Key features

It is the only portable monitor to be pressure corrected ensuring no false readings are given
The Sub Aspida is compact in size (127 x 44 x 90mm LxDxW)
The oxygen (O2) sensor can be calibrated on air, reducing costly gas requirements and making you self sufficient in the maintenance of the sensor
The carbon dioxide (CO2) sensor only needs calibrating every 12 months
OLED (Organic Light Emitting Diode) display
Pressure compensated CO2 & O2 sensors
Rechargeable battery-operated (NiMH)
Datalogging
Man-down alarm
Can offer continuous monitoring or spot checking
Audio, visual and vibration alarms
TWA (Time Weighted Average) Alarm
User maintainable
Can be worn on the belt or clipped to a panel
Pressure range of 700-1200mbara
Maintenance reminders as standard

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad An economical choice of primary pure water for daily laboratory cleaning , with a water output of 45 - 180 liters per hour, ion retention rate >98%, organic matter retention rate >99% (when MW >200 Daltons), particle and bacteria retention rate >99%, which can meet the requirements of conventional production process water and laboratory utensil cleaning water, and can be used as the inlet water for ultrapure water systems, high-pressure steam sterilizers, environmental test chambers and other instruments.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

CO2 MONITOR & ALARM DESIGNED FOR KIOSKS

The Ax60+ Kiosk is a CO2 monitor and alarm specifically designed by Analox to alert personnel to a build up/leak of CO2 using a state-of-the-art infrared sensor. The alarm provides both audio and visual alerts in the case of increased levels of carbon dioxide (CO2). Up to four alarms can be added as needed and the unit does not need periodic calibration.

CO2 monitoring with the AX60+ Kiosk

The Ax60+ Kiosk is a smaller version of the popular Ax60+ carbon dioxide (CO2) monitor. It is simple to wall mount in the area where carbon dioxide (CO2) is stored or piped. The Ax60+ Kiosk sensor needs to be installed at a height of 12-18 inches (305-457mm) above the floor – this is because the carbon dioxide (CO₂) that leaks from a gas cylinder is denser than ambient air and can collect at low levels. The alarm should be located above the sensor at about head height or at the entrance to the kiosk.

Technical Specification

Sensor Unit


Gas detected	Carbon Dioxide (CO2)
Sensor technology	Infrared
Range	0.1% to 5%
Default alarm set-points	USA regulations (NFPA 55, IFC, NBIC, OSHA and NIOSH): TWA - 5,000ppm (0.5%) AL1 - 5,000ppm (0.5%) AL2 - 15,000ppm (1.5%) AL3 - 30,000ppm (3%) International/European regulations (EH40) (DIN 6653-2:2015-06 compliant, assessed by TUV): TWA - 5,000ppm (0.5%) AL1 - 15,000ppm (1.5%) CO2 - 30,000ppm (3%)
Warm up time	40 Seconds
Resolution	0.01%
Accuracy	±2.5% of the alarm levels
Response Time	30 seconds to T90
IP Rating	IP55
LED indicators	Green = Power

Alarm Unit


Strobe	White LED strobe, with an option to change to blue, red or amber filter.
Sounder	min 80 dBA @3 m (9.8 feet)
IP Rating	IP55
LED indicators	Green = Power, Amber = Fault
Cable	2m included

https://youtu.be/--wsZFTYVWs?si=nI8q1AThpkBD4yNv https://youtu.be/Bi7CmSLIIbA?si=dVXlyZaRw893no_T

Key Features

Ambient CO monitoring
Online CO monitoring
Can be used with Nitrogen (N2) background gasses or, with calibration, can be used with Helium (He) background gasses
Has up to 3 user configurable alarms
Can operate as a stand alone sensor or as part of a larger system
Compatible with the rest of the Ax60+ range

Click here to download Quick Start Guide

Click here to download Manual

Click here to download Service Manual

This Automatic Pipette will help you get your lab up and running in no time—at a great price! Features:

Lowest operation and tip ejection forces
Fully autoclavable
Ultra light weight with space-age materials
Secondary adjustment option for various liquid classes
Spring loaded tip con
For transferring molecular samples and PCR mix solutions.
One set is for DNA work and the other for RNA work. Each with the following specs
Light weight, traditional tip shaft, and will fit all generic brands of tips
Equal to or better than accuracy and precision compared to ISO 8655, so results can be trusted.
Easy and quick volume adjustment with or without gloves. Foolproof volume lock prevents accidental volume changes.
Low maintenance and autoclavable 121° for at least 20 minutes
Quick release

Description

The O2 Portable is an oxygen monitor designed to provide sample readings from cylinders containing different levels of O2. The O2 Portable is supplied with a sampling adaptor to be easily fitted to cylinders. O2 MONITORING WITH THE O2 PORTABLE

Ensuring the oxygen content of a cylinder is correct is vital to ensure the safety of the end user. The O2 Portable provides a fast and accurate reading of O2 levels in that cylinder, easy to use as an instant spot check, the handheld unit is quick and simple to operate, with a robust design. The O2 Portable has a large digital display and operates from an internal temperature compensated 3 year life (expected) electrochemical oxygen sensor. Power is provided by a 9V, 4000-hour life battery giving up to 3 years of operation before replacement is necessary.

Technical Specification

O2 PORTABLE

Range	0.1% to 100% in O2
Accuracy	±1% of reading over range 0 to 50% when calibrated on air in accordance with the manual ±2% of reading over range 0 to 100% when calibrated on certified pure oxygen in accordance with the manual
Sensor Warranty	2 years (graded)
Sensor Response	<15 seconds to T90
Power	9V Alkaline (PP3)
Operating Temp	5°C to 50°C
Dimensions	64mm x 98mm x 36mm (w x h x d)
Weight	200g

Click to download Data Sheet

Click here to download User Manual

Click here to download Quick Start Guide

Description

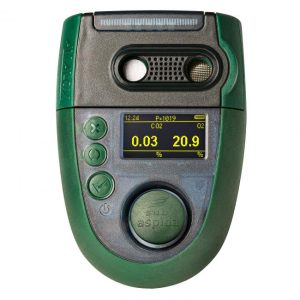

The Sub Aspida is a personal, portable monitor which is used to detect levels of carbon dioxide (CO2) and oxygen (O2) in pressurized environments.

CO2 monitoring & O2 monitoring with the Sub Aspida

Unlike industrial sensing monitors, the Sub Aspida was designed with pressure corrected sensors, giving you 100% confidence in your readings. The Sub Aspida has been upgraded to support those who work at high altitude. Pressure tested to 10,000 ft or 700 MB, the Sub Aspida will remain accurate and reliable when monitoring CO2 and O2 in the atmosphere, meaning you can concentrate on the job at hand!

Technical Specification

SUB-ASPIDA

Operating temperature	0°C to +50°C
Operating pressure	700 to 1200 mbara
Humidity Range	0 to 99% RH
Display	High-visibility, Organic Light Emitting Diode (OLED) display
Alarm horn	95dB @ 30cm
LED indicators	1 x Green - OK, 1 x Amber - Fault, 1 x Red - Alarm
Internal data log	1 log every 30 seconds for at least 7 days of continuous use
Batteries	2 x NiMH 2100mAh AA batteries (or suitable AA type batteries)
Battery discharge time	12 hours under normal operation (Passive atmospheric monitoring, minimal user interaction, no alarms)
Battery lifespan	2 years
Battery charge time	4.5 hours (from flat)
Charge power supply rating	9 V DC - 0.55A, DC jack 5.5x12.0x2.1mm centre +ve
Electronics warranty	2 years
IP rating	IP65
Dimensions	127 x 44 x 90 mm / 5 x 1.7 x 3.5 inches (LxDxW)
Weight	335g/11.8oz , O2 350g/12.3oz, CO2 335g/11.8oz

SENSORS

CO2 Sensor Unit	O2 Sensor Unit
Sensor type	Analox infrared MIR	Electrochemical
Accuracy (at standard temperature and pressure)	±(1% of full scale + 2% of reading)	±1% of full scale (For best performance, calibrate the Sub Aspida while on battery power only.)
Range	0.01 to 50.0 mbar ppCO2 (0.01 to 5% at 1000 mbara)	0.1 to 2000.0 mbar ppO2 (0.1 to 100% O2 at 1000 mbara)
Response time	T90 <60 seconds	T90 <30 seconds
Sensor life span	5 years	1 year (expected)

An economical choice of primary pure water for daily laboratory cleaning , with a water output of 45 - 180 liters per hour, ion retention rate >98%, organic matter retention rate >99% (when MW >200 Daltons), particle and bacteria retention rate >99%, which can meet the requirements of conventional production process water and laboratory utensil cleaning water, and can be used as the inlet water for ultrapure water systems, high-pressure steam sterilizers, environmental test chambers and other instruments

Technical Parameters

Product Model	Pilot-RO45	Pilot-RO63	Pilot-RO90	Pilot-RO120	Pilot-RO180
Pure water output*	45L/Hour	63L/Hour	90L/Hour	120L/Hour	180L/Hour
RO reverse osmosis water indicators
Ion retention rate	98%-99% (when using new RO membrane)
Organic matter retention rate	>99%, when MW>200 Daltons
Particle and bacteria retention	>99%
bacteria	<0.01 cfu/ml (optional 0.2μm imported PES terminal filter)
Particles (>0.2μm)	<1/ml (optional (0.2μm imported PES terminal filter)
Raw water requirements	Urban drinking tap water, water temperature 5-45℃, water pressure 1.0-4.0Kgf/ ^cm2
Size and weight	Length × width × height: 640 × 540 × 1110mm; Weight: about 70Kg
Electrical requirements	220V, 50/Hz
power	120W	120W	240W	240W	240W
System Configuration	Main unit (including 1 set of purification column) + 2 built-in 15L pressure water buckets + TDS/conductivity test pen + accessory bag

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A
