| Description | Shipped From Abroad

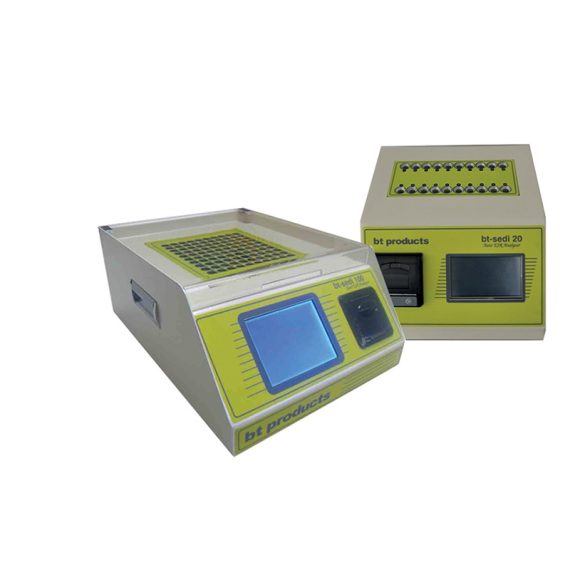

BT SEDI 20/100 is an automated ESR analyzer designed for accurate erythrocyte sedimentation rate testing in clinical laboratories. Using infrared reading technology and the Westergren method correlation, it delivers reliable inflammation testing with continuous sample loading and efficient laboratory workflow.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped from Abroad
Advanced routine laboratory microscope for brightfield observations with IOS W-PLAN objectives and rackless stage. The high-efficiency X-LED3 makes it reliable for all transmitted light observations for great-looking, rich and high-quality view.
Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped from Abroad
Cordless binocular microscope ideal for students and primary schools, with four PLAN achromatic lenses (1000x), FN 18 high eyepointeyepieces, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 1 W X-LED1 illumination.
Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | In stock
- Classification: Laboratory Centrifuge
- Brand Name: xiangtian
- Model Number: 800-1
- Place of Origin: Jiangsu, China
- Time range: 0-60min
- Max speed: 4000r/min
- Max RCF: 1790xg
- Capacity: 20ml*6
Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | In stock
- Sturdy high-impact plastic rack will hold from 6 to 31 test tubes up to 25mm in a diameter
- Easy to assemble
- Chemical resistant
Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | In stock
- Type: Biochemical Analysis System
- Brand Name: WINCOM
- Model Number: DY-300
- Instrument classification: Class II
- Output: D.C.300V, 100MA
- POWER: A.C.220V, 50HZ
Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. |
| Content | BT SEDI 20/100 is a fully automated analyzer used to measure erythrocyte sedimentation rate (ESR) in blood samples for clinical diagnostics. The analyzer operates using an infrared optical reading system and produces results correlated with the Westergren reference method. It supports continuous loading and random sample access to improve laboratory efficiency. With two model options - BT SEDI 20 and BT SEDI 100 - the system offers flexible throughput for small or large laboratories performing inflammation and infection screening tests.
Features
- Random Access and non-stop sample loading
- Correlated to the Westergren Reference method
- At 30 minutes-30, 60, 120 min. sedimentation results
- Stabilizing the internal temperature at 18°C with a temperature regulation system.
- At 15 minutes, 30 min. sedimentation result
Specifications
| Throughput |
SEDI 20: Max 40 t/h
SEDI 100: Max 200 t/h |
| Loading Capacity |
SEDI 20: Max 20 Samples
SEDI 100: Max 100 Samples |
| ESR Tube Volume |
1,6 mL |
| Advanced routine laboratory microscope for brightfield observations with IOS W-PLAN objectives and rackless stage. The high-efficiency X-LED3 makes it reliable for all transmitted light observations for great-looking, rich and high-quality view.
Features:
- Observation mode: Brightfield.
- Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
- Interpupillary distance: Adjustable between 50 and 75 mm.
- Dioptric adjustment: On the left eyepiece tube.
- Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
- Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
- Objectives:
– IOS W-PLAN 4x/0.10
– IOS W-PLAN 10x/0.25
– IOS W-PLAN 40x/0.65
– IOS W-PLAN 100x/1.25 (Oil)
All with anti-fungus treatment.
- Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
- Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
- Condenser: Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable.
- Transmitted illumination (Full Koehler type): X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
Technical Specifications:
| Observation Method -
Transmitted Light |
Brightfield |
Yes |
| |
Phase contrast (Positive type) |
As optional |
| |
Darkfield |
As optional |
| |
Simple polarized light |
As optional |
| Main Body |
Type |
Upright |
| |
Construction material |
Aluminum die-cast |
| |
Trasportation handle |
Yes |
| Head |
Type |
Trinocular (Siedentopf) |
| |
Split ratio |
50/50 |
| |
Inclination |
30° |
| |
360° rotating |
Yes |
| |
Interpupillary distance (mm) |
50-75 |
| |
Dioptric adjustement |
On left tube |
| |
Tube inner diameter (mm) |
30 |
| Eyepieces |
Field number (mm) |
22 |
| |
Magnification |
10x |
| |
Planar type |
Yes |
| |
Micrometric scale |
As optional |
| |
Diameter of micrometer glass (mm) |
26 |
| |
High eyepoint (for glass wearers) |
Yes |
| |
Rubber cup |
Yes |
| |
Retractable protections |
Yes |
| Nosepiece |
Positions |
Quintuple |
| |
Reversed |
Yes |
| |
Bi-directional |
Yes |
| |
Rotation on ball bearings |
Yes |
| |
Objective thread |
RMS |
| Objectives |
Optical system |
∞ |
| |
Anti-fungus treatment |
Yes |
| |
Parfocal distance (mm) |
45 |
| |
Standard magnifications |
40x-1000x |
| |
Type |
IOS W-PLAN |
| |
Objectives included |
4x/0.10, W.D. 17.3 mm
10x/0.25, W.D. 10 mm
40x/0.65, W.D. 0.54 mm
100x/1.25 (Oil),
W.D. 0.13 mm |
| Stage |
Type |
Double layer |
| |
Dimensions (mm) |
233x147 |
| |
Moving mechanism |
Rackless |
| |
Moving range (mm) |
78x54 |
| |
Material |
Anti-scratch painting |
| |
Specimen holder |
Yes |
| |
Slide number |
2 |
| |
Click-stop (45°) |
No |
| |
X-Y Vernier scale |
Yes |
| |
Vernier scale accuracy (mm) |
0.1 |
| Condenser - Single
Position |
Type |
Swing-out |
| |
Removable |
Yes |
| |
Numerical aperture (N.A.) |
0.2 / 0.9 |
| |
Diaphragms |
Iris |
| |
Centrable |
Yes |
| |
Focusable |
By rack and pinion |
| Focusing System |
Type |
Coaxial coarse & fine |
| |
Coarse total travel (mm) |
25 |
| |
Fine total travel (per single rotation) (mm) |
0.2 |
| |
Fine graduations |
100 |
| |
Fine resolution (µm) |
2 |
| |
Upper stop to prevent contact |
Yes |
| |
Adjustable tension |
Yes |
| |
Flat knob for ergonomy |
Yes |
| Transmitted
Illumination |
Kohler illumination |
Full |
| |
Type |
X-LED |
| |
X-LED type |
X-LED3 |
| |
Light source power (W) |
3.6 |
| |
Brightness control |
Manual
|
| |
Lifetime (hours) |
> 65,000 |
| |
Temperature (K) |
6,300 |
| |
Max. required power (W) |
6 |
| Power Supply for
Transmitted
Illumination |
Type |
External |
| |
Microscope connector |
Jack, 2.1 mm |
| |
Power plug type |
Multi-plug (EU, UK, US) |
| |
Input voltage |
100/240 Vac, 50/60 Hz |
| |
Output voltage |
6 Vdc 2.5A |
| Accessories Included |
Dust cover |
Yes |
| |
Immersion oil (10ml) |
Yes |
| |
Tension adjustment tool |
Yes |
| |
Allen wrench |
Yes |
| |
User Manual |
Digital version (downloadable) |
| Additional Information |
|
Heating stage (as optional).
External rechargeable battery pack (as optional). |
| Product Weight |
Height (mm) |
420 |
| |
Width (mm) |
270 |
| |
Depth (mm) |
390 |
| Product Weight |
(kg) |
9 |
| Cordless binocular microscope ideal for students and primary schools, with four PLAN achromatic lenses (1000x), FN 18 high eyepointeyepieces, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 1 W X-LED1 illumination. Slim and easy to carry, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use. The exclusive Li-Ion battery ensures unparalleled duration and fast recharge.
Features:
- Observation mode: Brightfield.
- Head: Binocular, 30° inclined; 360° rotating.
- Eyepieces: WF10x/18 mm, secured by screw.
- Nosepiece: Quadruple ball bearings revolving nosepiece.
- Objectives:
– N-PLAN 4x/0.10 , with anti-fungus treatment
– N-PLAN 10x/0.25 , with anti-fungus treatment
– N-PLAN 40x/0.65 , with anti-fungus treatment
– N-PLAN 100x/1.25 (Oil/Water) , with anti-fungus treatment
- Specimen stage: Mechanical stage, 125x116mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
- Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
- Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
- Illumination: X-LED1 with white 1 W LED and light intensity control.
- Color temperature: 6,300 K. Li-Ion battery for long lasting operation. Multi-plug 100-240Vac/5Vdc external power supply.
Technical Specifications:
| Observation Method -
Transmitted Light |
Brightfield |
Yes |
| |
Simple polarized light |
As optional |
| Main Body |
Type |
Upright |
| |
Construction material |
Aluminum die-cast |
| Head |
Type |
Binocular (Siedentopf) |
| |
Inclination |
30° |
| |
360° rotating |
Yes |
| |
Interpupillary distance (mm) |
48-75 |
| |
Dioptric adjustement |
On left tube |
| |
Fixing screw for eyepieces |
Yes |
| |
Tube inner diameter (mm) |
23 |
| Eyepieces |
Field number (mm) |
18 |
| |
Magnification |
10x |
| |
High eyepoint (for glass wearers) |
Yes |
| |
Pointer |
As optional |
| |
Micrometric scale |
As optional |
| |
Diameter of micrometer glass (mm) |
20 |
| Nosepiece |
Positions |
Quadruple |
| |
Bi-directional |
Yes |
| |
Rotation on ball bearings |
Yes |
| |
Objective thread |
RMS |
| Objectives |
Optical system |
160 |
| |
Anti-fungus treatment |
Yes |
| |
Parfocal distance (mm) |
45 |
| |
Standard magnifications |
40x-400x |
| |
Type |
N-PLAN |
| |
Objectives included |
4x/0.10, W.D. 15.2 mm
10x/0.25, W.D. 5.5 mm
40x/0.65, W.D. 0.45 mm |
| |
|
100x/1.25 (Oil/Water)
W.D. 0.13 mm |
| Stage |
Type |
Double layer |
| |
Dimensions (mm) |
125x116 |
| |
Moving mechanism |
Rack and pinion |
| |
Moving range (mm) |
70x30 |
| |
Material |
Anti-scratch painting |
| |
Specimen clips |
Yes |
| |
Slide number |
1 |
| |
X-Y Vernier scale |
Yes |
| |
Vernier scale accuracy (mm) |
0.1 |
| Condenser - Single
Position |
Type |
Abbe |
| |
Numerical aperture (N.A.) |
1.25 |
| |
Diaphragms |
Iris |
| |
Centrable |
Pre-centered |
| |
Focusable |
By rotation |
| Focusing System |
Type |
Coaxial coarse & fine |
| |
Coarse total travel (mm) |
16 |
| |
Fine total travel (per single rotation) (mm) |
0.4 |
| |
Fine graduations |
100 |
| |
Fine resolution (µm) |
4 |
| |
Upper stop to prevent contact |
Yes |
| |
Adjustable tension |
Yes |
| Transmitted
Illumination |
Type |
X-LED |
| |
X-LED type |
X-LED1 |
| |
Light source power (W) |
1 |
| |
Brightness control |
Manual |
| |
Lifetime (hours) |
> 65,000 |
| |
Temperature (K) |
6,300 |
| |
Max. required power (W) |
1.5 |
| Power Supply for
Transmitted
Illumination |
Type |
External |
| |
Microscope connector |
Jack, 2.1 mm |
| |
Power plug type |
Multi-plug (EU, UK, US) |
| |
Input voltage |
100/240 Vac, 50/60 Hz |
| |
Output voltage |
5 Vdc 500 mA |
| |
LED indicator |
Yes |
| |
Rechargeable batteries |
Yes |
| |
Battery type |
Li-ion (battery pack) |
| |
Working time of batteries (hours) |
15 |
| |
Charging time of batteries (hours) |
6 |
| Accessories Included |
Dust cover |
Yes |
| |
Immersion oil (10ml) |
Yes |
| |
Tension adjustment tool |
Yes |
| |
User Manual |
Digital version (downloadable) |
| Additional Information |
|
Mirror for transmitted light (as optional) |
| Product Weight |
Height (mm) |
350 |
| |
Width (mm) |
170 |
| |
Depth (mm) |
320 |
| Product Weight |
(kg) |
4 |
| 800-1 electric centrifuge is widely used in hospitals, chemical and Biological Chemistry Laboratory for serum, plasma, immune qualitative analysis experiment. Has beautiful shape, large capacity, small volume, complete function. Its performance is stable, the speed is adjustable and can automatically adjust the balance, low temperature, high efficiency and wide applicability and advantages.
Technical Specifications:
|
Type No. |
800-1 |
|
Power source |
220V 50HZ 110V 60HZ |
|
Speed Range （rpm） |
0～4000（rpm） |
|
Time Range(min) |
0-60min |
|
Capacity （ml） |
20（ml）×6 |
|
Maximum centrifugal force(xg) |
1790（xg） |
|
Package Size （cm） |
29*29*26 |
|
- Sturdy high-impact plastic rack will hold from 6 to 31 test tubes up to 25mm in a diameter
- Easy to assemble
- Chemical resistant
|
- Type: Biochemical Analysis System
- Brand Name: WINCOM
- Model Number: DY-300
- Instrument classification: Class II
- Output: D.C.300V, 100MA
- POWER: A.C.220V, 50HZ
- Weight: 6kg
|
