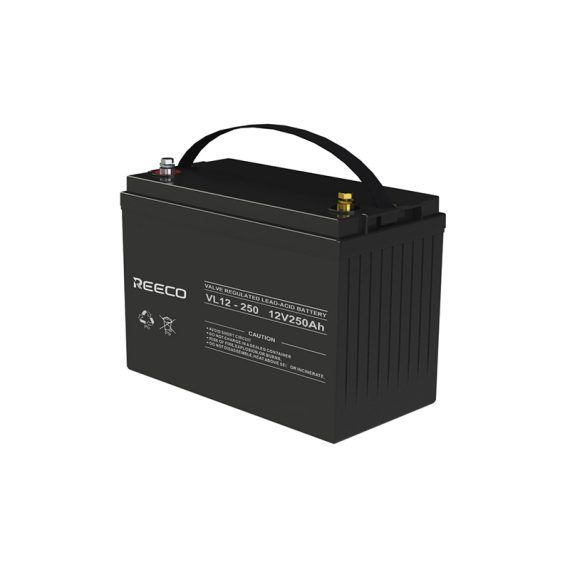

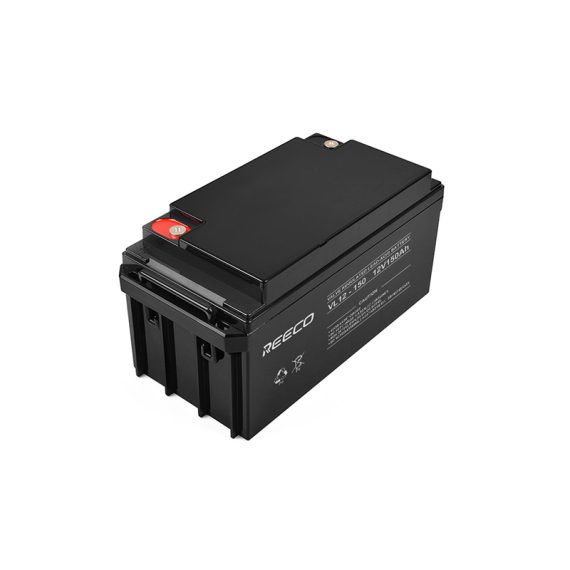

Lead Acid Maintenance Free Battery 5AH-250AH

Brands: Reeco Power

~~$0.00~~

Shipped From Abroad

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

f

Sku:

SF1033560130139-15

Brands:: Reeco Power

Description
Reviews (0)

Description

Features：

Nomimal voltage: 12V
Rated Capacity: 5Ah ~ 250Ah
Operating temperature range: -15 ~ 45 ℃
The design life is 5 years
Using new special process sheet formula to improve the utilization of active material
Using high quality superfine glass fiberliquid-suction battery technology to exceed 99% gas recombination rate
High-strength ABS plastic battery slot and cover with features of compact structure, corrosion resistant, impact resistance and
anti-vibration and so on
Small internal impedance, excellent performance when high current discharge
Low self-discharge, wide operating temperature range
Using multiple sealing technologies to ensure no leakage, no acid mist escaping to keep safe and reliable
Using strict production process, unit voltage balance is strong
Free maintenance, without adding water rehydration

Technical Specifications

Model	Nominal Voltage	Capacity	Dimension LXWXH (mm)			Total Height (mm)	Weight (KG)	Terminal
VL12-24	12	24	166	175	125	125	8	M6
VL12-28	12	28	166	175	125	125	9	M6
VL12-33	12	33	196	130	163	180	10	M6
VL12-35	12	35	197	130	163	180	10.5	M6
VL12-40	12	40	197	166	171	171	13.5	M6
VL12-44	12	44	196	166	171	171	13.5	M6
VL12-55	12	55	230	138	211	229	17.2	M6
VL12-65	12	65	350	166	179	179	22	M6
VL12-70	12	70	260	169	211	229	23	M8
VL12-80	12	80	260	169	211	229	24	M8
VL12-90	12	90	307	169	211	234	28	M8
VL12-100	12	100	331	173	213	233	32	M8
VL12-120	12	120	407	174	209	233	3, 8	M8
VL12-130	12	134	341	173	283	287	41	M8
VL12-150	12	150	484	171	241	241	46	M8
VL12-160	12	160	534	209	216	237	52	M8
VL12-180	12	180	530	209	216	237	56	M8
VL12-200	12	200	522	240	220	244	64	M8
VL12-230	12	230	520	268	220	240	72.5	M8
VL12-250	12	250	520	268	220	249	76	M8
