001-10

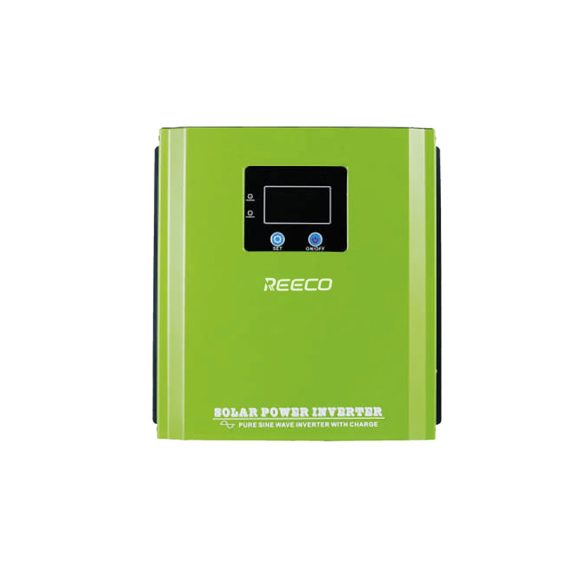

Single Phase Low Frequency Hybrid Solar Inverter VKS Series 300W-1200W

Brands: Reeco Power

$0.00

Shipped From Abroad

Features：
  • Pure sine wave output
  • AC Charging current 15A
  • High-low voltage protection
  • Against overload, short-circuit Protection
  • Over voltage,battery reverse connection(optional)
  • Under-voltage and over-temperature protection
  • Selectable battery priority or utility priority
  • UPS function and AC charger function
  • Built in 10A/20A/30A solar charge PWM controller



Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
SF1033560130139-28
Brands:: Reeco Power

Description

Features：
  • Pure sine wave output
  • AC Charging current 15A
  • High-low voltage protection
  • Against overload, short-circuit Protection
  • Over voltage,battery reverse connection(optional)
  • Under-voltage and over-temperature protection
  • Selectable battery priority or utility priority
  • UPS function and AC charger function
  • Built in 10A/20A/30A solar charge PWM controller



Applications:
  • Mammogram
  • Ultrasound Equipments
  • Radiology rooms



Technical Specifications
MODEL VKS300W VKS500W VKS700W VKS800W VS1000W VKS1200W
Rated Power 300W 500W 700W 800W 1000W 1200W
Peak Power 600W 1000W 1400W 1600W 2000W 2400W
AC input voltage range 73V-135VAC(110VAC/120VAC) 145V-275VAC(220VAC /230VAC )
Input frequency range 45-65HZ
Battery voltage 12VDC /24VDC
DC voltage 12VDC:10.5 -15VDC/24VDC:21-30VDC
Solar Controller 10A/20A/30A
Solar Input 120W 240W 360W 480W 720W
Battery undervoltage alarm 10.5VDC /21VDC
Battery undervoltage protection 10VDC /20VDC
Battery overvoltage protection 17V±0.5V /34V±0.5V
Voltage overvoltage alarm 15V-16VDC/30V-32VDC
Overload protection Rated power of 110% or more
Temperature protection ≥85 °C alarm, ≥90 °C off the machine
Inverter output voltage 110VAC/120VAC/ 220VAC/230VAC ±2%
Inverter output frequency 50/60HZ±10%
Inverter output waveform pure sine wave
AC output voltage range AVR output 110VAC/120VAC/ 220VAC/230VAC ±10%
Output frequency range Automatic tracking
Conversion time <5ms
Cooling method Intelligent fan control, ≤42 °C fan slow working , ≥45 °C fan high working .
AC Charging current 15A
Working mode selection Free to choose(SET)
01: AC priority/Citypower priority:
When city power is available, the inverter will work AC output, city power will supply power to appliances.The city power and sun power will charges 2 kinds power to battery. When city power failed,Sun power will charge the battery and  use battery power(Solar power) to take the appliances.02: energy saving mode
load power ≤10% off the machine, ≥11% -100% turn on03: Solar power priority/ Battery priority
When it have sun power,sun power charges the battery and supply power to the appliances.When it does not have sun power or battery voltage ≤10.5V, inverter will automatic use city power to take the appliances, When battery voltage reach 13V inverter will use battery power and sun power.
External Size(mm) DxWxH 300*290*150mm
Packing Size(mm) DxWxH 350*350*405（2pcs）
Net Weight(KG) 5.5 6.5 7 8 9.5 10
Gross Weight(KG) 13 15 16 18 20 22
