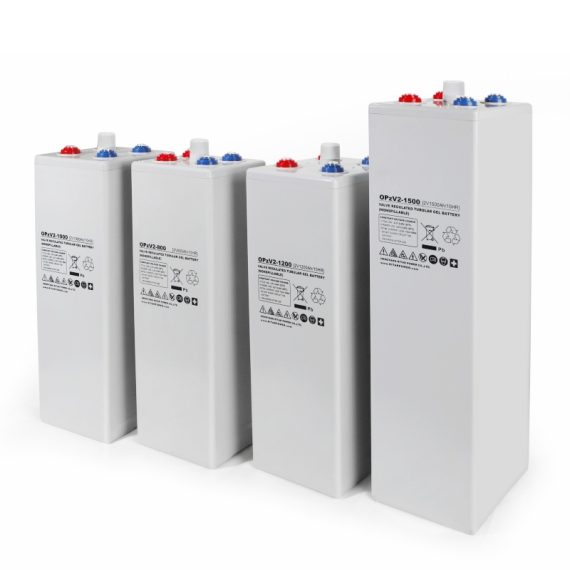

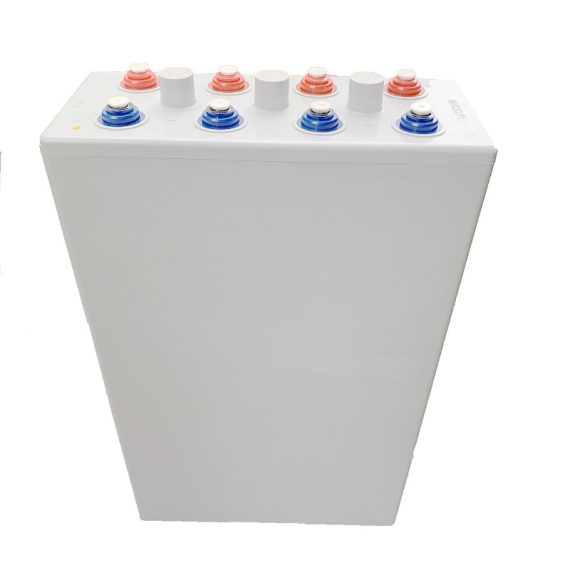

OPzV Tubular Gel Battery 60AH-3000AH

Brands: Reeco Power

~~$0.00~~

Shipped From Abroad

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130139-18

Brands:: Reeco Power

Description
Reviews (0)

Description

Features:

OPzV Tubular Gel Battery ( solid-state) 60AH-3000AH
Voltage class: 12V/2V
Capacity range: 60Ah~3000Ah

OPzV batteries offer high capacity reserve power and true deep cycling performance. With a design life of 20 years and a maintenance-free operation,
OPzV battery are perfect for regions with an unstable supply of electricity. OPzV battery are also completely spill-proof, which makes them safe to install anywhere,
even in remote environments with minimal supervision.

Technical Specifications

Model	Nominal Voltage	Capacity	Dimension				Terminal
	Nominal Voltage	C10/1.80VPC （Ah）	Length	Width	Height	Total Height
	（V）	C10/1.80VPC （Ah）	mm	mm	mm	mm
OPzV6-200	6	200	322	177.5	226	231	F16(M8) F14(M8)
OPzV12-60	12	60	260	169	211	216	F11(M6)
OPzV12-80	12	80	328	172	215	220	F12(M8)
OPzV12-100	12	100	407	177	225	225	F12(M8)
OPzV12-120	12	120	483	170	241	241	F12(M8)
OPzV12-140	12	140	532	207	214	219	F12(M8)
OPzV12-160	12	160	532	207	214	219	F12(M8)
OPzV12-180	12	180	522	240	219	224	F10(M8)
OPzV12-200	12	200	521	268	220	225	F14(M8)
OPzV2-200	2	200	103	206	355	390	F10(M8)
OPzV2-250	2	250	124	206	355	390	F10(M8)
OPzV2-300	2	300	145	206	355	390	F10(M8)
OPzV2-350	2	350	124	206	470	505	F10(M8)
OPzV2-420	2	420	145	206	470	505	F10(M8)
OPzV2-500	2	490	166	206	470	505	F10(M8)
OPzV2-770	2	770	210	254	470	505	F10(M8)
OPzV2-600	2	600	145	206	645	680	F10(M8)
OPzV2-800	2	800	191	210	645	680	F10(M8)
OPzV2-1000	2	1000	233	210	645	680	F10(M8)
OPzV2-1200	2	1200	276	210	645	680	F10(M8)
OPzV2-1500	2	1500	275	210	795	830	F10(M8)
OPzV2-2000	2	2000	399	214	770	805	F10(M8)
OPzV2-2500	2	2500	487	212	770	805	F10(M8)
OPzV2-3000	2	3000	576	212	770	805	F10(M8)
