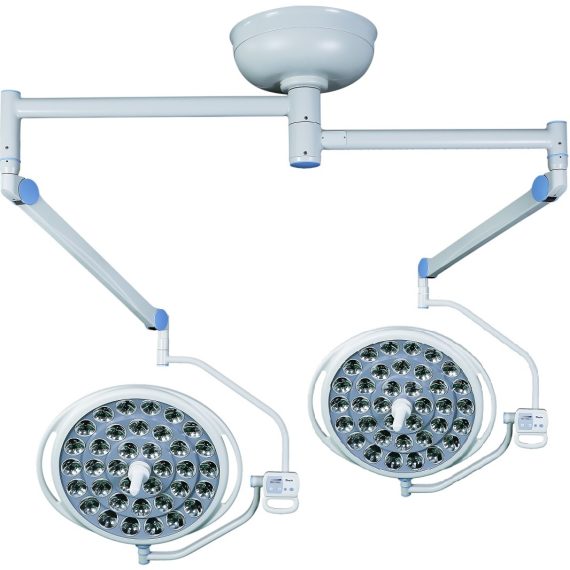

LEDTECH 7070 Surgical Lighting System

Brands: Bowin-Med

~~$0.00~~

Shipped From Abroad

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130166-12

Brands:: Bowin-Med

Description
Reviews (0)

Description

Features

Unique Multi-faced Reflection technology ensures high performance of illumination within the light field
One main L70cm dome with max.illumination of 160,000lux
One satellite L50cm dome with max.illumination of 120,000lux
4300K color temperature in accordance with sunlight which requested by operation (With optional color temperature adjustment range from 3700-5100K by 5 steps)
With color-temperature adjustment function added as an option
Good Laminar Flow design for surgeon/s comfort
High CRI performance reduces eye fatigue in long term operation
MIS(Endo) Mode for ambient light
Advanced heat management systems offer real cool light
Germany LED resources offer a long life of>60000H

Reviews

There are no reviews yet.

Be the first to review “LEDTECH 7070 Surgical Lighting System”

Quick Comparison

LEDTECH 7070 Surgical Lighting System remove LEDTECH 3000 Ceiling Examination Light remove Uzumcu DL-62D LED Operating Lights Twin Dome Ceiling Mounted remove Aluminum Alloy lamp Holder remove JSF-JC05 Examination Lamp remove K066/E Phototherapy Device remove

Name LEDTECH 7070 Surgical Lighting System remove LEDTECH 3000 Ceiling Examination Light remove Uzumcu DL-62D LED Operating Lights Twin Dome Ceiling Mounted remove Aluminum Alloy lamp Holder remove JSF-JC05 Examination Lamp remove K066/E Phototherapy Device remove


SKU SF1033560130166-12 SF1033560130166-7 SF10335601269 SF1033560130178-13 SF1033560130178-8 SF1033560130177-36

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

The DL-62D LED surgical light offers an illumination intensity of 160,000 LUX for the main lighthead and 120,000 LUX for the satellite lighthead, with an adjustable color temperature of 3500 K - 5000 K and lifetime of 50,000 hours. It also features a 4.3-inch LCD touchscreen for controlling all functions, along with a camera and arm-mounted medical monitor for monitoring and recording operations. Delivery & Availability: Typically 14-21 Working Days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad The Aluminum Alloy Lamp Holder is a durable and lightweight fixture designed to securely hold lamps in place. Made from high-quality aluminum alloy, it offers excellent strength, heat resistance, and corrosion protection, making it ideal for both indoor and outdoor lighting applications.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad The JSF-JC05 Examination Lamp delivers bright, focused lighting for medical exams and procedures. With adjustable brightness and a flexible arm, it allows for precise positioning to ensure clear visibility. Its durable design makes it perfect for use in various clinical environments, enhancing accuracy and efficiency during patient assessments.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

The K066/E Phototherapy Device is designed to provide effective phototherapy treatment, commonly used for neonatal care, such as treating jaundice in newborns. Key features include:

Phototherapy Light Source: Utilizes specialized light to deliver therapeutic wavelengths beneficial for treating neonatal jaundice.
Adjustable Settings: Features adjustable light intensity and treatment duration to cater to varying patient needs.
User-Friendly Interface: Equipped with an intuitive control panel for easy operation by healthcare professionals.
Safety Features: Incorporates alarms to notify caregivers upon reaching the end of the treatment
Durable Construction: Built with high-quality materials to ensure longevity and consistent performance.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Features

Unique Multi-faced Reflection technology ensures high performance of illumination within the light field
One main L70cm dome with max.illumination of 160,000lux
One satellite L50cm dome with max.illumination of 120,000lux
4300K color temperature in accordance with sunlight which requested by operation (With optional color temperature adjustment range from 3700-5100K by 5 steps)
With color-temperature adjustment function added as an option
Good Laminar Flow design for surgeon/s comfort
High CRI performance reduces eye fatigue in long term operation
MIS(Endo) Mode for ambient light
Advanced heat management systems offer real cool light
Germany LED resources offer a long life of>60000H

Features

Complete round light dome made of molding plastic for best shadowless efficiency and less weight for movement.
Multi-facet reflector technology, assures low power consumption, and uniform lighting effect on the surface and depth.
The lamp dome body is waterproof and dustproof up to the international IP54 standard (providing domestic and international authoritative third-party test reports).
Pure cold white LED from an internationally famous brand, protects the eyes of doctors and patients.
Particular Optics Array:7 groups patented reflective technology with multiple-facet reflector, using Germany-made LED bulb, offers excellent focusing, illumination, and shadowless efficiency.
Optimal Cold and Natural Lighting: Advanced CRI, color temperature, and temperature control meet the high standard examination request, ensuring the most comfortable use and feeling for the operator and patient.
Optimized Illumination Controling Provides Power ON/OFF, dimming adjustable from 10%-100% by 9 levels to satisfy different using
The lifetime of the LED light source is over 50,000 hours. At the same time, each LED component can be replaced independently, which is economically and environmentally friendly.

The DL-62D operating lights feature LED bulbs with 50,000 hours of lifetime and allows for maximum lighting level by a single button. It has an adjustable color temperature of between 3500-5000 °K and enables automatic switching off of related LED sections to prevent formation of shade on the lighting area when faced with a barrier. Features: LED Technology

High LED technology fulfilling lighting requirements of any kind of operation.
Maximum lighting level by single button.
LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

Special Head Design

Head design with low aerodynamic resistant protecting laminar flow of surgical space.

Sensor Technology & Endoscopy Mode

Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
Adjustable color temperature between 3500-5000 °K.
LCD colour touchscreen control panel controlling all functions.

Camera System & Focusing

Camera and medical monitor practically integrable with the lamp head for training purposes. It enables monitoring and recording operations.
Manual focus function can be adjusted from the handle or the control panel.

Alternative Control Panels

4.3” LCD touchscreen and membrane control panel with led indicators are avaliable for all lamp heads.
Model names with “A” refer to Analog membrane control panel and with “D” refer to Digital touchscreen control panel.

Technical Specifications:

Diameter of lighthead: Ø650 mm (Main Lighthead x1), Ø440 mm (Satellite Lighthead x1)
Illumination power, in 1 m: 160.000 Lux (Main Lighthead x1 and 120.000 Lux(Satellite Lighthead x1)
Color temperature: 3500 K - 5000 K(Main Lighthead x1) and 3500 K - 5000 K(Satellite Lighthead x1)
Color rendering index, Ra CRI: 96% (Main Lighthead x1) and 96%(Satellite Lighthead x1)
Dimming Range: % 1 – 100(Main Lighthead x1) and % 1 – 100(Satellite Lighthead x1)
Adjustable focus diameter: 120 – 300 mm(Main Lighthead x1) and 120 – 300 mm(Satellite Lighthead x1)
Temperature increase in surgical area: < 0,5°C(Main Lighthead x1) and < 0,5°C(Satellite Lighthead x1)
Number of LED modules: 68(Main Lighthead x1) and 28(Satellite Lighthead x1)
Lifetime of LED: 50.000 hour(Main Lighthead x1) and 50.000 hour(Satellite Lighthead x1)
IP: IP 54(Main Lighthead x1) and IP 54(Satellite Lighthead x1)

Click Here To Download Catalogue

The Aluminum Alloy Lamp Holder is a robust and lightweight fixture designed to securely support lamps in a variety of settings. Made from high-quality aluminum alloy, it offers exceptional durability, heat resistance, and corrosion protection, making it suitable for both indoor and outdoor use. The holder is engineered to withstand high temperatures and harsh environments, ensuring long-lasting performance. Its sleek design allows for easy installation and compatibility with various lighting setups, making it an ideal choice for residential, commercial, and industrial applications.

Product Features

* Single- hole cold light, vertical and moveable. * Adjustable height between 1000- 1600mm. * With the spherical joint, the lamp holder is upright and side-ling adjustable. * Pedal switch is installed in the base, which makes the lamp has more convenient use.

Technical parameters:

Model: JSF-JC05 Power supply: 220V Bulb power:35W Illumination: ≥12000Lux Color temperature:3000±500K

Technical Specifications:

Dimensions: Specific measurements are not provided; designed to fit standard neonatal care units.
Power Rating: Details not specified; designed for efficient energy consumption suitable for continuous use.
Materials: Constructed with a combination of high-grade plastics and metals to ensure durability and ease of cleaning.
Mobility: Equipped with casters for easy movement and positioning within medical facilities.
Power Supply: Compatible with standard hospital electrical systems; exact specifications not detailed.

Weight N/A N/A N/A N/A 11 kg N/A

Dimensions N/A N/A N/A N/A 115 × 28 × 24 cm N/A
