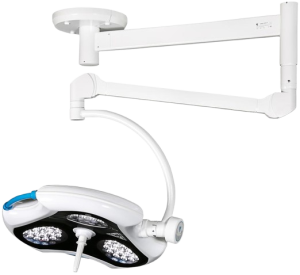

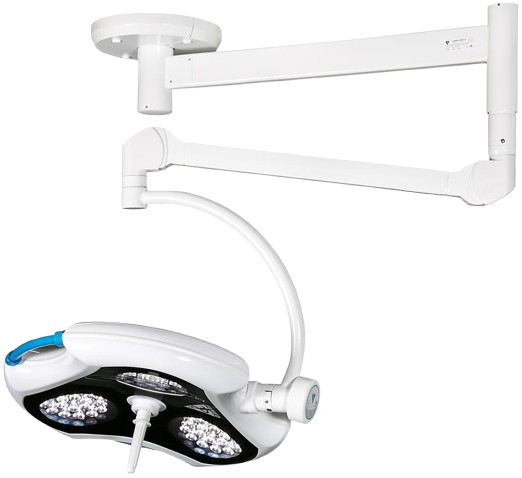

HELIOS 160 Surgical Light
$0.00
Shipped From Abroad
The HELIOS 160 is a high-intensity LED surgical light delivering up to 160,000 lux at 1 m, with excellent colour fidelity (CRI 96), adjustable intensity and field size – designed for operating rooms, dental and veterinary environments requiring crisp, reliable illumination
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The HELIOS 160 operates with white LED diodes housed in a sleek, three-panel dome design for minimal shadowing and easy cleaning. Its three independent LED modules ensure continuous illumination even in the case of partial module failure. A sterile central handle allows spot-size adjustment, and intensity is regulated from a control panel on the arm. Available in ceiling-mounted, wall-mounted, and mobile configurations, it accommodates diverse clinical settings from general surgery to veterinary care while keeping heat at the operator’s head under one degree Celsius.
The operating light HELIOS 160 uses white LED diodes as a source of light white LED diodes. The modern and monolithic construction of the copula makes it easy to keep the lamp clean, ensures ergonomic use, and perfect cooperation with the laminar air-flow. The lamp is dedicated for operating rooms, but may also be well adopted in examination rooms, dentists, and veterinary clinics. HELIOS 160 consists of three independent light panels, containing 54 LED diodes, making it possible to reach the intensity of the light of 160,000 lux. Positioning of the lamp is easy thanks to the sterile handle placed in the middle of the copula and two non-sterile handles located on its circuit. The sterile handle is also used for regulation of the light field diameter, whereas light intensity is regulated by the control panel situated on the copula arm. There are three versions of HELIOS lamps: ceiling-mounted, wall-mounted, and mobile (including battery back-up).
Features
-
Up to 160,000 lux illumination at 1 m distance
-
Adjustable light intensity range from 25% to 100%
-
High colour rendering index (CRI) of 96 for accurate tissue colour
-
Fixed colour temperature of 4400 K
-
Operating field diameter (d10): approximately 210 mm
-
Light spot diameter (d50): approximately 105 mm
-
Depth of illumination (L1+L2): up to 68 cm at 20% intensity
-
Temperature rise at the surgeon’s head below 1 °C
-
Three independent LED panels ensure redundancy and reliability
-
Smooth, monolithic dome for laminar airflow and easy cleaning
-
Available as a ceiling-mounted, wall-mounted, or mobile trolley version
-
Low maintenance, energy-efficient LED technology with long service life
Technical specifications
| Lighthead |
HELIOS 160 |
| Supply voltage |
24V DC |
| Light intensity at a distance of 1 m (Ec) |
160 000 lux |
| Adjustable light intensity |
25÷100% |
| Colour rendering index Ra |
96 |
| Colour temperature |
4400K |
| Operating field diameter d10 |
210 mm |
| Light spot diameter d50 |
105 mm |
| Adjustable diameter of the operating field |
yes |
| Temperature increase near the surgeon’s head |
< 1°C |
| Dept of illumination L1+L2 (20%)
(60%) |
68 cm 47 cm |
| Power consumption for the light head |
55 W |
| Insulation class |
I |
| Protection degree provided by the lighthead enclosure |
IP43 |
