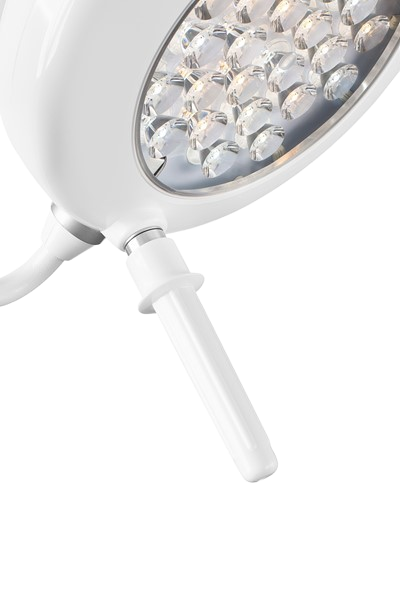

SOLIS 130 Surgical Light

Features

• Illumination intensity of 130,000 lux at 1 m

• Adjustable intensity from 25 % to 100 %

• Colour rendering index (CRI) of 97 for accurate colour fidelity

• Three selectable colour temperatures: 4000 K, 4400 K, 4800 K

• Operating field diameter (d10) of 24 cm; focus diameter (d50) about 13 cmTemperature rise at the surgeon’s head < 1 °C

• Power consumption ~ 47 W

• Supply voltage 24 V DC Famed

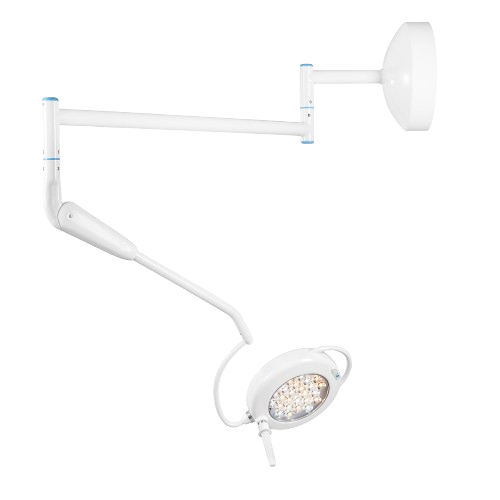

• Available as a ceiling-mounted, wall-mounted, or mobile unit

• Sterilisable handle and intuitive control interface

• LED technology ensures longer life, reduced maintenance, and minimal heat

Mobile operating light features high LED technology to fulfill the lighting requirements of any kind of operation and allows for maximum lighting level by a single button. Its battery system runs automatically in case of electricity failure and provides continuous energy for 2.5 hours, while its multi-functional control panel allows for monitoring of battery status and adjusting lamp functions.

• Battery system running automatically in case of electricity failure and providing continuous energy for 2,5 hours (LD-5MB).
• Multi-functional control panel for monitoring battery status and adjusting lamp functions.

• High LED technology fulfilling lighting requirements of any kind of operation.
• Maximum lighting level by single button.
• LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

• Head design with low aerodynamic resistant protecting laminar flow of surgical space.

• Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
• Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
• Adjustable color temperature between 3500-5000 °K.

LCD colour touchscreen control panel controlling all functions

Main Lightheads (×1)

• Diameter of light head: Ø440 mm

• Illumination power, in 1 m: 120.000 Lux

• Color temperature: 3500 K – 5000 K

• Color rendering index, Ra CRI:96%

• Dimming Range: % 1 – 100

• Adjustable focus diameter:120 – 300 mm

• Temperature increase in surgical area:< 0,5°C

• Number of LED modules:28

• Lifetime of LED:50.000 hour

• IP: IP 54

Click Here To Download Catalogue

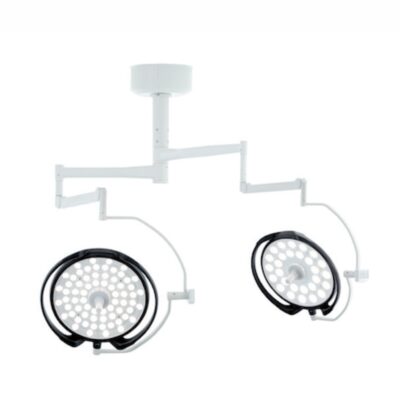

The DL-62C LED surgical light offers an illumination intensity of 160,000 LUX for the main lighthead and 120,000 LUX for the satellite lighthead, with an adjustable color temperature of 3500 K - 5000 K and lifetime of 50,000 hours. It also features a 4.3-inch LCD touchscreen for controlling all functions, along with a camera and arm-mounted medical monitor for monitoring and recording operations.

• High LED technology fulfilling lighting requirements of any kind of operation.
• Maximum lighting level by single button.
• LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

• Head design with low aerodynamic resistant protecting laminar flow of surgical space.

• Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
• Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
• Adjustable color temperature between 3500-5000 °K.
• LCD colour touchscreen control panel controlling all functions.

• Camera and medical monitor practically integrable with the lamp head for training purposes. It enables monitoring and recording operations.
• Manual focus function can be adjusted from the handle or the control panel.

• 4.3” LCD touchscreen and membrane control panel with led indicators are avaliable for all lamp heads.
• Model names with “A” refer to Analog membrane control panel and with “D” refer to Digital touchscreen control panel.

• Diameter of lighthead: Ø650 mm
• Illumination power, in 1 m: 160.000 Lux
• Color temperature: 3500 K – 5000 K
• Color rendering index, Ra CRI: 96%
• Dimming Range: % 1 – 100
• Adjustable focus diameter: 120 – 300 mm

Click Here To Download Catalogue

Product Features

Product Features

Technical parameters:

• BILIPOD LED Double Surface Phototherapy Unit Sturdy Baby Trolley consists of –  Collapsible Acrylic Side Panels  Transparent Baby Tray with Bubble Mattress  Height Adjustment and Angle Adjustment for Overhead LED Module  Four Swivelling castor wheels with brakes Certified Also available - Bilipod Double Surface Phototherapy Unit with Detachable trolley
• Uniform Light Distribution with 11 High Intensity LED Lamps uniform body coverage • Observation Lamp Two Observation White LEDs provide enough light to observe the color of baby’s skin • High Irradiance Levels Irradiance > 30 µW/cm²/nm enables faster bilirubin breakdown • Pin Drop Silent Operation zero noise cooling fan • Optimum Wavelength Range: 420 to 490 nm • Very Low Power Consumption of only 30W • Effective Surface Area : 40cm x 50cm
• Life of Lamps - 30000 hours • Lamp Tilt up to 90° • Height Adjustability up to 50cm • Light Weight Lamp Unit weighs less than 3 Kg • Portable can be placed above Infant incubator or below the Infant Warmer Bassinet to give under surface Phototherapy • Sleek & Compact Lamp Unit Size : 45 x 30 x 5 cm takes minimum space • Timer: LCD Based Timer measuring Total Lamp Usage and Patient Timer
• BiliProbe Irradiance Meter Handheld Irradiance (Flux) meter for measurement of the output of conventional Phototherapy Units.  Bandpass filter - 425nm to 475nm  Range: 0 to 200 uW/cm²/nm  Minimal Graduation: 1 uW/cm²/nm  Accuracy: ± 10%  Measuring Time: Approx 4-5 sec  Press to ON Switch  Battery: 9V Alkaline Phototherapy Eye PATCH has been designed to assure complete comfort, and eye protection for infants during Phototherapy Treatment  Adjustable Band for proper comfort and secure fit  Easy to use design  Large eye protection pad increases light protection  Single Piece wrap around design can be independently adjusted to prevent unwanted movement.  Available in 3 sizes - Preterm, Term and Neonatal Phototherapy Eye Patch
