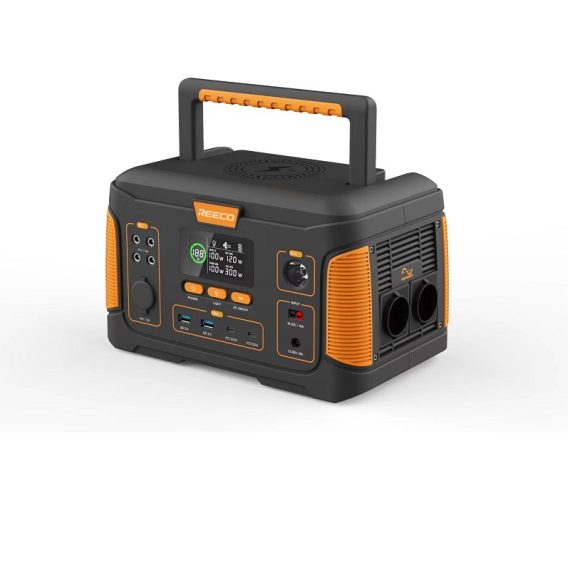

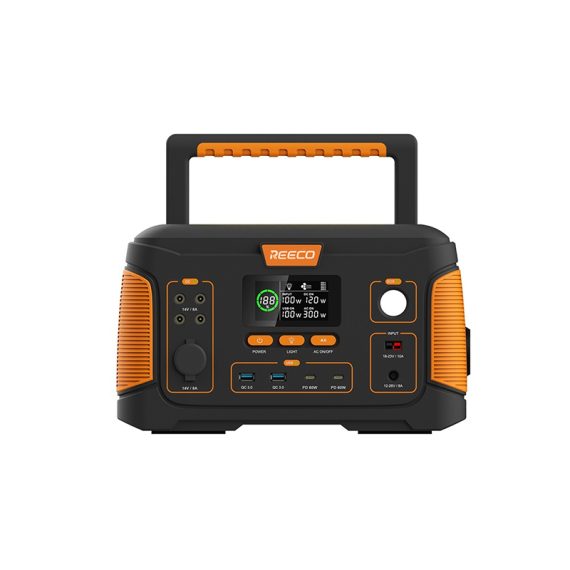

| Content | Features：
- Rated Power: 500W
- Rated Capacity: 519 . 48wh
- Standard Capacity: 3.7V/140400mah
- Overload Protecion: 550W + 40W
- AC Output: AC 110V+10%/60HZ 230V+10%/50HZ
- Output Wave: Pure sine wave
- USB Output: QC 18W*2
- Type-c Output: PD 60W*2
- Cigarret Lighter Output: 14V/8A
- DC5525 Output: 14V/8A
- Wireless Charging: 15W
- Charging Input: 12-26 V/100W Max
- WorkingTemperature: -10-40 °C
- Weight(Net Weight): 6.8kg
- Weight(With Accessories): 8.5kg
- Dimension: 345*227*203mm
Applications:
- Mammogram
- Ultrasound Equipments
- Radiology rooms

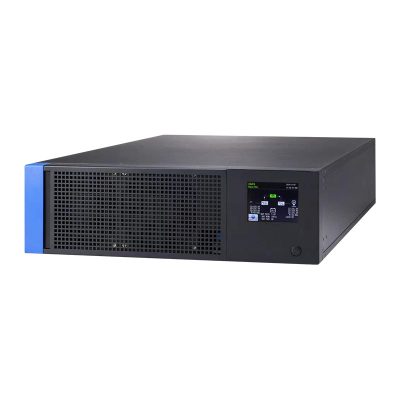

| Features：
- Optional 7 ” touch LCD
- Online double-conversionDSP technology guarantees high reliability
- True galvanic isolation transformer designControl designed to withstand all kinds of loads
- Intelligent battery management to prolong battery lifecycle
- Redundant fan design and independent ventilation enhance durable operation under harsh environment
- Adiustable battery numbers
- Accept dual-mains input
- Parallel operation with up to 4 units ( option )
- Variety of communication options available
- Reverse phase frequency operation and supportsnon-neutral input
Specifications
| MODEL |
LF33 10K |
LF33 20K |
LF33 30K |
LF33 40K |
LF33 60K |
LF33 80K |
LF33 100K |
LF33 120K |
LF33 160K |
LF33 200K |
| CAPACITY |
10KVA /8KW |
20KVA /16KW |
30KVA /24KW |
40KVA /32KW |
60KVA /48KW |
80KVA /64KW |
100KVA /80KW |
120KVA /96KW |
160KVA /128KW |
200KVA /160KW |
| INPUT |
| Nominal Voltage |
3 x 380VAC/400VAC (3Ph + N) |
| Acceptable Voltage Range |
305VAC ~ 460VAC |
| Frequency |
46-54Hzor56-64Hz |
| INVERTER |
| Nominal Voltage |
3 x 380VAC/400VAC (3Ph + N) |
| Precision |
Stationary: ±1% Transitory: ±5% (load variations 100-0-100%) |
| Frequency |
50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz |
| Max. Synchronisation Speed |
±1 Hz/s |
| Waveform |
Pure Sinewave |
| Total Harmonic Distortion (THDv) |
<2% (Linear Load) ； <5% (Non-linear Load) |
| Phase Displacement |
120° ±1 % (balanced load)； 120° ±2% (imbalances 50% of the load) |
| Dynamic Recovery Time |
Restore to 90% of rated value in 3 cycles |
| Overload capacity |
110% for 10min; 150% for 60sec; >160% for 200ms |
| Admissible Crest Factor |
3:1 |
| Admissible Power Factor |
0.6-1 (inductive or capacitive) |
| Imbalance Output Voltage @ 100% Unbalanced Load |
<1% |
| Current Limit |
High overload, short-circuit: RMS Voltage Limit; High Crest-Factor current: Peak Voltage Limit |
| STATIC BYPASS |
| Type |
Solid state |
| Voltage |
3 x 380VAC/400VAC (3Ph + N) |
| Frequency |
50/60 Hz |
| Activation Criterion |
Microprocessor control |
| Transfer Time |
Zero |
| Admissible Overload |
150% for 1 hour; 180% for 30sec; >200% for 200ms |
| Transfer to Bypass |
Immediate, for overloads above 160% |
| Retransfer |
Automatic after alarm clear |
| MAINTENANCE BYPASS |
| Type |
Without interruption |
| Voltage |
3 * 400V (3Ph + N) |
| Frequency |
50/60 Hz |
| Overall Efficiency |
Line Mode |
90% |
91% |
92% |
93% |
| Battery Mode |
90% |
91% |
93% |
93% |
| BATTERY & CHARGER |
| Battery Type and Numbers |
12VDC * 32 pcs (29-32 pcs adjustable) |
| Nominal Battery Voltage |
384 VDC (Based on 32pcs batteries) |
| Charging Method |
CC/CV |
| Precision |
±1% |
| Charging Current |
Max.: 40 A |
| Charging Voltage |
432 VDC (Based on 32pcs batteries) |
| PHYSICAL |
| Dimensions, D x W x H(mm) |
656 x 405 x 817 |
656 x 405 x 941 |
840x432x1140 |
975x554x1286 |
1200x910x1680 |
1500x1140x1800 |
| Net Weight (Kgs) |
180 |
205 |
295 |
330 |
451 |
519 |
950 |
1350 |

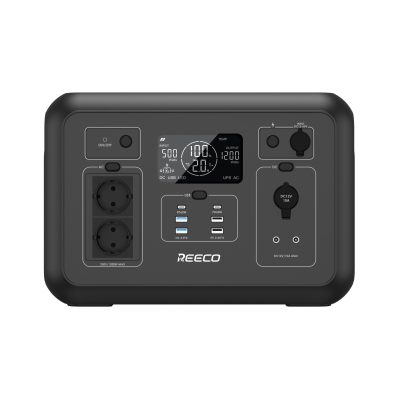

| Features:
- Capacity: 2200W 2048Wh /640000mAh
- Input AC Output Power:Rated Power 2400W Peak Power 4800W
- Input AC Charging：AC100~125V/AC174~264V Bidirectional Inverter 1400W Max
- Input Car Charging：DC12V~24V/10A 240W Max
- Input Solar Charging：DC16V~60V/10A 500W Max
- Output Voltage：230VAC±10%/110VAC±10%
- Output Frequency: 50Hz±5%/60Hz±5%
- USB Output:2*QC18W+PD27W+PD100W Max
- DC Output:1*Cigarette Lighter 12.8V/12A Max+2*DC5521 Rated Output 12.8V/5A Max
- Output Waveform:Pure Sine Wave
- LED:3 Levels(H/M/L)+SOS
- UPS Function:Support ; Battery Expandable: Support
Applications:
- Mammogram
- Ultrasound Equipments
- Radiology rooms

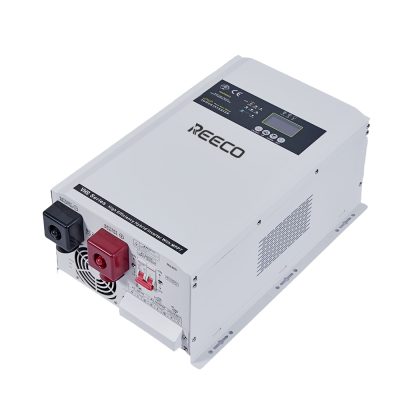

| Features:
Three Phase Hybrid Solar Inverter
Off grid three phase solar hybrid inverter with pwm/mppt can be used in single-phase and three-phase ac load with total power not exceeding 100kva/120kva/125kva/150kva/160kva,384vdc to 380vac.
•Pure sine wave output.
•Low DC voltage, saving system cost.
•Three phase solar inverter with built-in PWM or MPPT charge controller.
•AC charge current 0-45A adjustable.
•Wide LCD screen, clearly and precisely shows icon data.
•100%imbalance loading design, 3 times peak power.
•Setting different working modes based on variable usage requirements.
•DC first/AC first optional.
•Various communication ports and remote controls
Specifications
| MODEL |
DX100KVA |
DX120KVA |
DX125KVA |
DX150KVA |
DX160KVA |
190KVA |
200KVA |
| Rated Power |
80KW |
96KW |
100KW |
120KW |
128KW |
150KW |
160KW |
| Peak Power（20ms) |
240KVA |
288KVA |
300KVA |
360KVA |
384KVA |
450KVA |
480KVA |
| Start Motor |
40HP |
50HP |
50HP |
60HP |
60HP |
80HP |
80HP |
| Battery Voltage |
384VDC |
| Size(L*W*Hmm) |
875*720*1380 |
1123*900*1605 |
| Packing Size(L*W*Hmm) |
980*825*1560 |
1185*960*1750 |
| N.W.(kg) |
512 |
592 |
612 |
612 |
642 |
705 |
755 |
| G.W.(kg)（Wooden Packing） |
552 |
632 |
652 |
652 |
692 |
755 |
805 |
| INPUT |
DC Input Voltage Range |
10.5VDC-15VDC（Single battery voltage） |
| AC Input Voltage Range |
380Vac/400Vac±10%(customized 190Vac/200Vac) |
| AC Input Frequency Range |
45Hz-55Hz（50Hz）/ 55Hz-65Hz（60Hz） |
| Max AC charging current |
0-45A(Depending on the model） |
| AC charging method |
Three-stage (constant current, constant voltage, floating charge) |
| Phase |
3 PHASE |
| OUTPUT |
Efficiency(Battery Mode) |
≥85% |
| Output Voltage(Battery Mode) |
380Vac/400Vac±10%(customized 190Vac/200Vac) |
| Output Frequency(Battery Mode) |
50/60Hz ±1% |
| Output Wave(Battery Mode) |
Pure Sine Wave |
| Output waveform distortion |
Linear load≤3% |
| Efficiency(AC Mode) |
>99% |
| Output Voltage(AC Mode) |
Conforming to AC input |
| Output Frequency(AC Mode) |
Conforming to AC input |
| No load loss(Battery Mode) |
≤1% rated power |
| No load loss(AC Mode) |
≤2%rated power（ charger does not work in AC mode） |
| No load loss
(Energy saving Mode) |
≤10W |
| Phase |
3 PHASE |
| BATTERY |
VRLA Battery |
Charge Voltage :13.8V; Float Voltage:13.7V（Single battery voltage） |
| Customize battery |
Charging and discharging parameters of different types of batteries can be customized according to user requirements |
| (charging and discharging parameters of different types of batteries can be set through the operation panel) |
| Protection |
Battery undervoltage alarm |
11V（Single battery voltage） |
| Battery undervoltage protection |
10.5V（Single battery voltage） |
| Battery overvoltage alarm |
15V（Single battery voltage） |
| Battery overvoltage protection |
17V（Single battery voltage） |
| Battery overvoltage recovery voltage |
14.5V（Single battery voltage） |
| Overload power protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
| Inverter output short circuit protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
| Temperature protection |
>90°C（Shut down output） |
| Alarm |
A |
Normal working condition, buzzer has no alarm sound |
| B |
Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection |
| C |
When the machine is turned on for the first time, the buzzer will prompt 5
when the machine is normal |
| Inside Solar controller |
Charging Mode |
MPPT or PWM |
| (Optional) |
Charging current |
PWM: 100A-200A / MPPT: 50A/100A |
|
PV Input Voltage Range |
PWM: 480V-704V / MPPT: 480V-640V |
|
Max PV Input Voltage(Voc) |
PWM: 750V / MPPT: 800V |
|
(At the lowest temperature) |
|
PV Array Maximum Power |
PWM: 44.8KW(100A)/33.6KW*2(150A)/44.8KW*2(200A)) / (MPPT: 22.4KW(50A)/22.4KW*2(100A) |
|
Standby loss |
≤3W |
|
Maximum conversion efficiency |
>95% |
| Working Mode |
Battery First/AC First/Saving Energy Mode |
| Transfer Time |
≤4ms |
| Display |
LCD |
| Thermal method |
Forced Air Cooling |
| Communication(Optional) |
RS485/APP（WIFI monitoring or GPRS monitoring） |
| Environment |
Operating temperature |
-10℃~40℃ |
| Storage temperature |
-15℃~60℃ |
| Noise |
2000m（More than derating） |
| Elevation |
≤65dB |
| Humidity |
0%~95% ,No condensation |
| Features：
Nomimal voltage: 12V
Rated Capacity: 5Ah ~ 250Ah
Operating temperature range: -15 ~ 45 ℃
The design life is 5 years
Using new special process sheet formula to improve the utilization of active material
Using high quality superfine glass fiberliquid-suction battery technology to exceed 99% gas recombination rate
High-strength ABS plastic battery slot and cover with features of compact structure, corrosion resistant, impact resistance and
anti-vibration and so on
Small internal impedance, excellent performance when high current discharge
Low self-discharge, wide operating temperature range
Using multiple sealing technologies to ensure no leakage, no acid mist escaping to keep safe and reliable
Using strict production process, unit voltage balance is strong
Free maintenance, without adding water rehydration
Technical Specifications
| Model |
Nominal Voltage |
Capacity |
Dimension LXWXH (mm) |
Total Height
(mm) |
Weight (KG) |
Terminal |
| VL12-24 |
12 |
24 |
166 |
175 |
125 |
125 |
8 |
M6 |
| VL12-28 |
12 |
28 |
166 |
175 |
125 |
125 |
9 |
M6 |
| VL12-33 |
12 |
33 |
196 |
130 |
163 |
180 |
10 |
M6 |
| VL12-35 |
12 |
35 |
197 |
130 |
163 |
180 |
10.5 |
M6 |
| VL12-40 |
12 |
40 |
197 |
166 |
171 |
171 |
13.5 |
M6 |
| VL12-44 |
12 |
44 |
196 |
166 |
171 |
171 |
13.5 |
M6 |
| VL12-55 |
12 |
55 |
230 |
138 |
211 |
229 |
17.2 |
M6 |
| VL12-65 |
12 |
65 |
350 |
166 |
179 |
179 |
22 |
M6 |
| VL12-70 |
12 |
70 |
260 |
169 |
211 |
229 |
23 |
M8 |
| VL12-80 |
12 |
80 |
260 |
169 |
211 |
229 |
24 |
M8 |
| VL12-90 |
12 |
90 |
307 |
169 |
211 |
234 |
28 |
M8 |
| VL12-100 |
12 |
100 |
331 |
173 |
213 |
233 |
32 |
M8 |
| VL12-120 |
12 |
120 |
407 |
174 |
209 |
233 |
3, 8 |
M8 |
| VL12-130 |
12 |
134 |
341 |
173 |
283 |
287 |
41 |
M8 |
| VL12-150 |
12 |
150 |
484 |
171 |
241 |
241 |
46 |
M8 |
| VL12-160 |
12 |
160 |
534 |
209 |
216 |
237 |
52 |
M8 |
| VL12-180 |
12 |
180 |
530 |
209 |
216 |
237 |
56 |
M8 |
| VL12-200 |
12 |
200 |
522 |
240 |
220 |
244 |
64 |
M8 |
| VL12-230 |
12 |
230 |
520 |
268 |
220 |
240 |
72.5 |
M8 |
| VL12-250 |
12 |
250 |
520 |
268 |
220 |
249 |
76 |
M8 |
| Features：
- True double-conversion
- LCD screen auto-rotation with Rack position ( only for 10K-20K models)
- DSP technology guarantees high performance
- Output power factor 1
- Support 1/1；3/1；3/3 Phase Adjustable
- Active power factor correction in all phases
- 50HZ / 60HZ frequency converter mode
- ECO mode operation for energy saving ( ECO)
- Emergency power off function ( EPO)
- Generator compatible
- Supports dual AC inputs
- 3-stage extendable charging design for optimized battery performance
- Adjustable battery numbers for long-run model
- Supporting Parallel sharing of battery packs
- Optional isolation transformer offers full isolation and complete common mode noise rejection
- Support with SNMP,USB, RS232 communication
Technical Specifications
| MODEL |
33RM 10KL |
33RM 15KL |
33RM 20KL |
33RM 30KL |
33RM 40KL |
33RM 60KL |
| CAPACITY |
10KVA/10KW |
15KVA/15KW |
20KVA/20KW |
30KVA/30KW |
40KVA/40KW |
60KVA/60KW |
| PHASE |
3 Phase input / 3 Phase output |
| PARALLEL CAPABILITY |
4 Max |
| INPUT |
| Nominal Voltage |
3×380 VAC (3Ph+N) |
| Voltage Range |
190-520 VAC (3 Phase) @ 50% load , 305-478 VAC (3 Phase) @ 100% load |
| Frequency Range |
46-54 Hz or 56~64Hz |
| Power Factor |
≥ 0.99 @ 100% load |
| OUTPUT |
| Output Voltage |
3 x 360*/380/400/415 VAC (3Ph+N) |
| AC Voltage Regulation (Batt. Mode) |
± 1% |
| Frequency Range (Synchronized Range) |
46~54Hz or 56~64Hz |
| Frequency Range (Batt. Mode) |
50 Hz ±0.1 Hz or 60 Hz ±0.1 Hz |
| Current Crest Ratio |
3:1 (max.) |
| Harmonic Distortion |
≤1 % THD (Linear Load), ≤3% THD (Non-linear Load) |
| Transfer Time |
AC mode to Battery mode |
zero |
| Inverter to Bypass |
zero |
| Waveform (Batt. Mode) |
Pure Sine Wave |
| Overload |
AC Mode |
100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately Protection |
| Battery Mode |
100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately Protection |
| EFFICIENCY |
| AC Mode |
95.5% |
| ECO Mode |
98.5% |
| Battery Mode |
94.5% |
| BATTERY |
| Battery Type |
Depending on the applications |
| Numbers |
20 pcs |
32-40 pcs (Adjustable) |
| Charging Current (max.) |
1A~ 12A (Adjustable) |
1A~ 16A (Adjustable) |
1A 〜18A (Adjustable) |
| Charging Voltage |
±13.65 VDCx N (N=10) |
±13.65VxN (N=16〜20) |
| PHYSICAL |
| Dimension, D * W * H (mm) |
680*438*133 [3U] |
797*438*176 [4U] |
| Net Weight (kgs) |
27 |
30 |
40 |
45 |
| ENVIRONMENT |
| Operation Temperture |
0-40°C |
| Operation Humidity |
0-95% and non-condersing |
| Noise Level |
Less than 62dB @ 1 Meter |
Less than 65dB @ 1 Meter |
Less than 70dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB |
Supports Windows® Family, Linux and MAC |
| Optional SNMP |
Power management from SNMP manager and web browser |
|
Reviews
There are no reviews yet.
