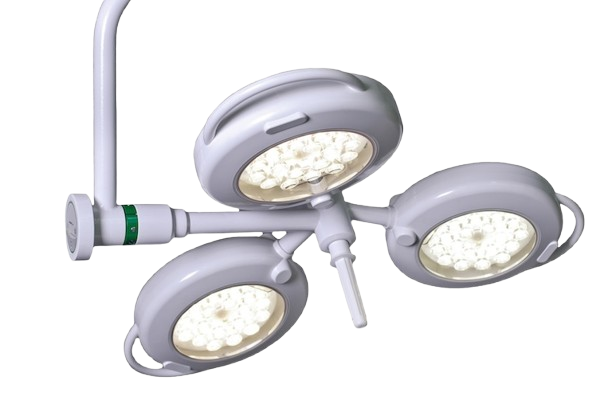

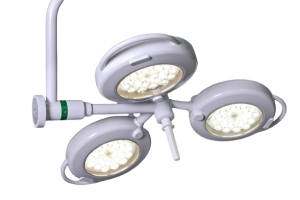

SOLIS 160 Surgical Light
$0.00
Shipped From Abroad
The SOLIS 160 is a high-performance LED surgical light offering 160,000 lux illumination, excellent colour fidelity (CRI 96), adjustable intensity, and a slim, sterile-surface dome design—ideal for demanding operating rooms that require reliable, low-heat, high-clarity lighting.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The SOLIS 160 surgical light merges advanced LED illumination with ergonomic design and clean room-ready features. With up to 160,000 lux at 1 m and a fixed colour temperature around 4,400 K, it reproduces tissue colours accurately. The dome houses three independent LED modules for redundancy and shadow-free lighting. A sterile central handle enables precise adjustment of the light field, while the slim projector body and smooth surface allow easy cleaning and optimum airflow. Intensity is adjustable from 25 % to 100 %, making the light suitable for a variety of surgical procedures.
Features
-
Illumination intensity up to 160,000 lux at 1 metre.
-
Adjustable light intensity from 25 % to 100 %.
-
High colour rendering index (CRI) of 96 for accurate colour reproduction.
-
Colour temperature approx. 4,400 K (constant).
-
Slim dome design with smooth surfaces for optimum hygiene and laminar-flow compatibility.
-
Three independent LED light modules offer built-in redundancy if one fails.
-
Sterile central handle for beam-field adjustment; minimal external fasteners on the dome.
-
Operating field diameter (d10) approx. 210–220 mm; spot diameter (d50) approx. 105–110 mm.
-
Temperature rise at the surgeon’s head < 1 °C, promoting comfort in long procedures.
-
Compact power consumption (~52 W for the lighthead).
-
Protection class around IP43; insulation Class I.
Technical specifications
| Lighthead |
SOLIS 160 |
| Supply voltage |
24V DC |
| Light intensity at a distance of 1 m (Ec) |
160 000 lux |
| Adjustable light intensity |
25 ÷ 100% |
| Colour rendering index Ra |
96 |
| Colour temperature |
const. 4400 K |
| Operating field diameter d10 |
210 mm |
| Light spot diameter d50 |
105 mm |
| Adjustable diameter of the operating field |
yes |
| Temperature increase near the surgeon’s head |
< 1°C |
| Depth of illumination L1+L2 (20%)
(60%) |
68 cm 47cm |
| Power consumption for the light head |
52 W |
| Insulation class |
I |
| Protection degree provided by the lighthead enclosure |
IP 43 |
Quick Comparison
| SOLIS 160 Surgical Light remove | Ceiling Mounted Nine (9) Halogen Bulbs remove | JSF-JC02 Examination Lamp remove | JSF-JC05 Examination Lamp remove | Uzumcu DL-2MB LED Mobile Operating Light remove | Uzumcu DL-62C LED Operating Lights Twin Dome Ceiling Mounted with Camera remove | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | SOLIS 160 Surgical Light remove | Ceiling Mounted Nine (9) Halogen Bulbs remove | JSF-JC02 Examination Lamp remove | JSF-JC05 Examination Lamp remove | Uzumcu DL-2MB LED Mobile Operating Light remove | Uzumcu DL-62C LED Operating Lights Twin Dome Ceiling Mounted with Camera remove | ||||||||||||||||||||||||||||
| Image |  |  |  |  |  |  | ||||||||||||||||||||||||||||
| SKU | SF1033560084-156 | SF1033560130178-2 | SF1033560130178-8 | SF10335601270 | SF10335601268 | |||||||||||||||||||||||||||||
| Rating | ||||||||||||||||||||||||||||||||||
| Price |
|
|
|
|
|
| ||||||||||||||||||||||||||||
| Stock | ||||||||||||||||||||||||||||||||||
| Availability | ||||||||||||||||||||||||||||||||||
| Add to cart | ||||||||||||||||||||||||||||||||||
| Description | Shipped From Abroad
The SOLIS 160 is a high-performance LED surgical light offering 160,000 lux illumination, excellent colour fidelity (CRI 96), adjustable intensity, and a slim, sterile-surface dome design—ideal for demanding operating rooms that require reliable, low-heat, high-clarity lighting.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| In stock
Ceiling 9-reflector luminescence shadowless lamp adopts light sources from different positions for focus, providing illumination for surgical operations and medical examination and reducing shadows produced by different parts of medical workers. Illumination can be adjusted according to practical requirements. The lamp is fit for lighting for surgical operations and medical examination in hospitals.
| Shipped From Abroad
The JSF-JC02 Examination Light is a high-performance medical lighting solution designed for outpatient exams and minor procedures. It features adjustable brightness and focus, providing clear and precise illumination for optimal visibility in clinical settings. Its energy-efficient design ensures reliable performance and long-lasting use.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped From Abroad
The JSF-JC05 Examination Lamp delivers bright, focused lighting for medical exams and procedures. With adjustable brightness and a flexible arm, it allows for precise positioning to ensure clear visibility. Its durable design makes it perfect for use in various clinical environments, enhancing accuracy and efficiency during patient assessments.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped From Abroad
Mobile operating light features high LED technology to fulfill the lighting requirements of any kind of operation and allows for maximum lighting level by a single button. Its battery system runs automatically in case of electricity failure and provides continuous energy for 2.5 hours, while its multi-functional control panel allows for monitoring of battery status and adjusting lamp functions.Delivery & Availability: Typically 14-21 Working Days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped From Abroad
The DL-62C LED surgical light offers an illumination intensity of 160,000 LUX for the main lighthead and 120,000 LUX for the satellite lighthead, with an adjustable color temperature of 3500 K - 5000 K and lifetime of 50,000 hours. It also features a 4.3-inch LCD touchscreen for controlling all functions, along with a camera and arm-mounted medical monitor for monitoring and recording operations.
Delivery & Availability:
Typically 14-21 Working Days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| ||||||||||||||||||||||||||||
| Content | The SOLIS 160 surgical light merges advanced LED illumination with ergonomic design and clean room-ready features. With up to 160,000 lux at 1 m and a fixed colour temperature around 4,400 K, it reproduces tissue colours accurately. The dome houses three independent LED modules for redundancy and shadow-free lighting. A sterile central handle enables precise adjustment of the light field, while the slim projector body and smooth surface allow easy cleaning and optimum airflow. Intensity is adjustable from 25 % to 100 %, making the light suitable for a variety of surgical procedures. Features
The control panel – easy to use, with the turn on/off button and
adjustment of the light intensity.
The sterile handle enables focusing of the light spot of the operating field,
ergonomic, placed in the centre for easy access and positioning of the dome.
Domes - three separated light sources, in the case of failure of one of them, the other two sources provide adequate illumination. The dome doesn't have any external screws and other fasteners. The smooth surface and perfectly matched components guarantee keeping it perfectly clean.
Technical specifications
| Ceiling 9-reflector luminescence shadowless lamp adopts light sources from different positions for focus, providing illumination for surgical operations and medical examination and reducing shadows produced by different parts of medical workers. Illumination can be adjusted according to practical requirements. The lamp is fit for lighting for surgical operations and medical examination in hospitals. Technical Specifications: Light Intensity: ≥100,000LX (At 1m Distance) Color Rendering Index: Ra ≥90 Color Temperature: 4000K±500K Main Voltage: AC 220V + 22V, 50/60Hz Bulb Voltage: AC24V Bulb Power Input Power: 280VA Rated Power Of Bulb: 25W Height For Installation: 280-320cm | JSF-JC02 Examination LampProduct FeaturesMini lamp holder with diameter of 75mm; Illumination using Osram imported from Germany, with stable light and long working time; Flexible arm can freely position, easy to move; Even bright white light.Technical parameters:Model: JSF-JC02 Power supply: 220V Bulb:LED Bulb power: 3V/3W Illumination:16000Lux Height adjust: √ Color temperature:4500K lifetime: 20000h | Product Features* Single- hole cold light, vertical and moveable. * Adjustable height between 1000- 1600mm. * With the spherical joint, the lamp holder is upright and side-ling adjustable. * Pedal switch is installed in the base, which makes the lamp has more convenient use.Technical parameters:Model: JSF-JC05 Power supply: 220V Bulb power:35W Illumination: ≥12000Lux Color temperature:3000±500K | Mobile operating light features high LED technology to fulfill the lighting requirements of any kind of operation and allows for maximum lighting level by a single button. Its battery system runs automatically in case of electricity failure and provides continuous energy for 2.5 hours, while its multi-functional control panel allows for monitoring of battery status and adjusting lamp functions.Features: Battery & Control Panel
LCD colour touchscreen control panel controlling all functionsTechnical Specification:Main Lightheads (×1)
Click Here To Download Catalogue | The DL-62C LED surgical light offers an illumination intensity of 160,000 LUX for the main lighthead and 120,000 LUX for the satellite lighthead, with an adjustable color temperature of 3500 K - 5000 K and lifetime of 50,000 hours. It also features a 4.3-inch LCD touchscreen for controlling all functions, along with a camera and arm-mounted medical monitor for monitoring and recording operations. Light Features LED Technology
Click Here To Download Catalogue | ||||||||||||||||||||||||||||
| Weight | N/A | N/A | 5 kg | 11 kg | N/A | N/A | ||||||||||||||||||||||||||||
| Dimensions | N/A | N/A | 93 × 48 × 10 cm | 115 × 28 × 24 cm | N/A | N/A | ||||||||||||||||||||||||||||
| Additional information |
|
|
